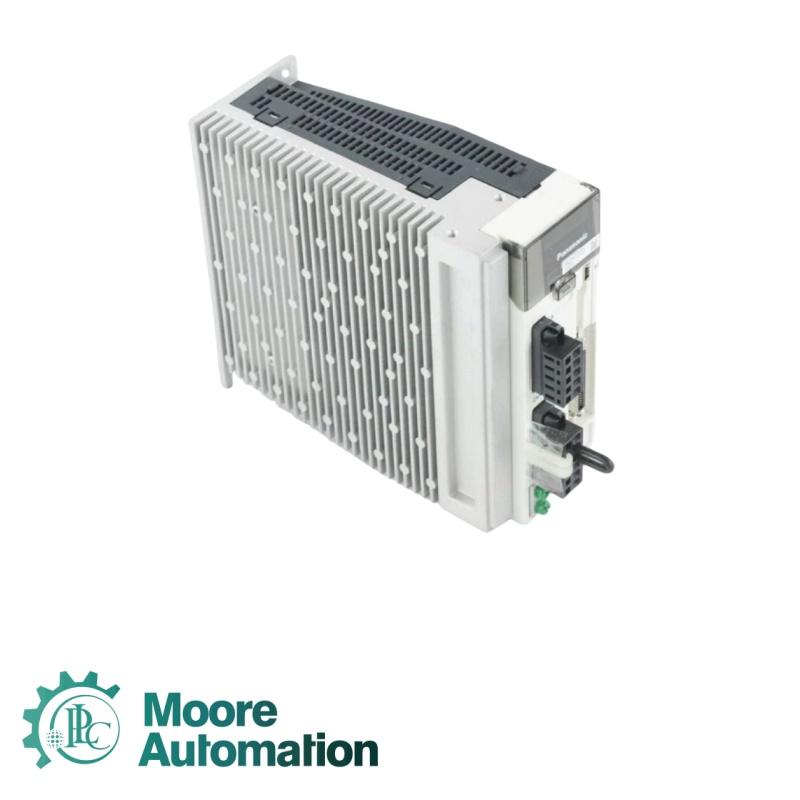

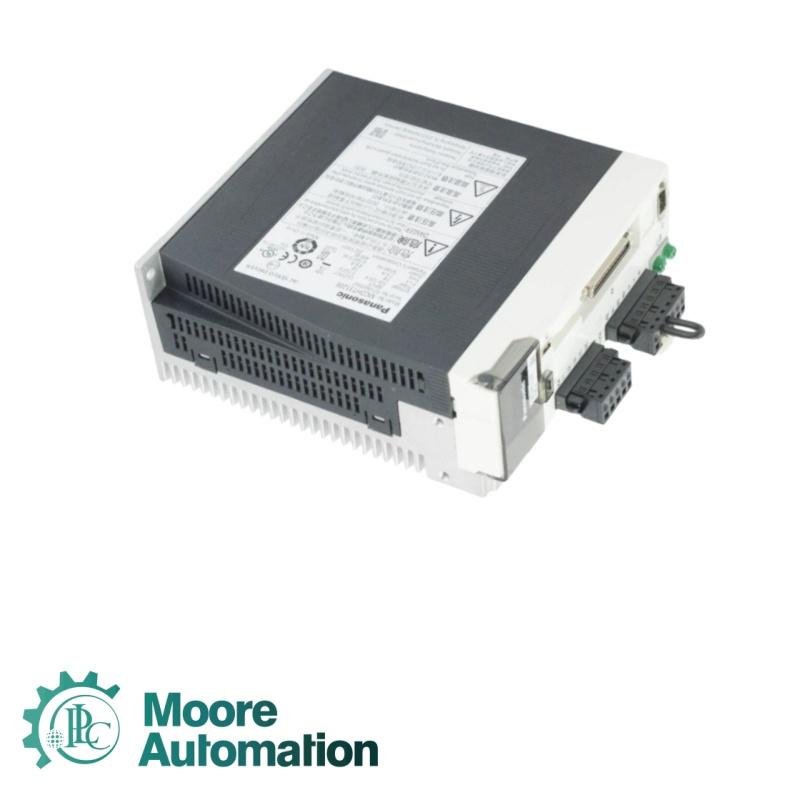

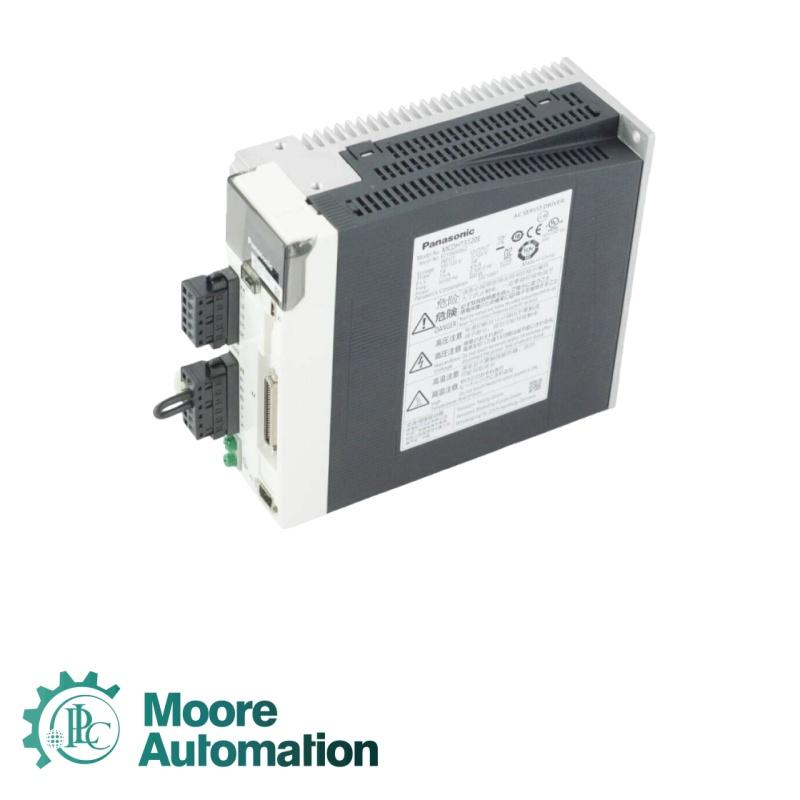

Panasonic MCDHT3120E AC Servo Drive

Establish Contact With Us

Input specifications: single-phase AC 100-120 V, 50/60 Hz, allowable fluctuation ± 10%
Output specification: Three phase PWM sine wave, compatible with 100-120V servo motors
Rated output current: 3.0 A (continuous), peak value 9.0 A (short-term)
Suitable motor power: Typical 400 W (100-120 V platform)
Control mode: position, speed, torque; Support composite mode and fully closed-loop control
Instruction mode: pulse/direction CW/CCW； Support electronic gear ratios and electronic camshafts
Encoder feedback: Supports 20 bit absolute encoders with a resolution of 1048576 p/rev
Frequency response: 2 kHz (speed loop bandwidth, typical value)
Pulse input frequency: up to 2 Mpps (differential signal), 500 kpps (open collector)
Digital input: 8 isolated inputs (DC 24V, NPC/PNP adjustable)
Digital output: 3-channel isolated output (transistor, maximum load DC 24 V/0.5 A)
Analog input: 1 channel 16 bit A/D (can be used for speed/torque commands)
Analog output: 1 channel 12 bit D/A (can map current/speed/position)
Protection functions: overcurrent, overvoltage, undervoltage, overtemperature, overload, short circuit, encoder abnormality, regenerative overvoltage
Regeneration treatment: built-in regeneration resistor; Support external regeneration resistor expansion
Dynamic braking: Built in dynamic braking circuit, can be triggered externally
Power efficiency: ≥ 88% (full load, typical value at 25 ° C)
Working temperature: 0 ° C-55 ° C (no condensation, high temperature derating)
Storage temperature: -40 ° C -85 ° C (relative humidity 10% -95%, no condensation)
Relative humidity: 10% -95% (working/storage, no condensation)
Protection level: IP20 (front panel, installed inside control cabinet)
