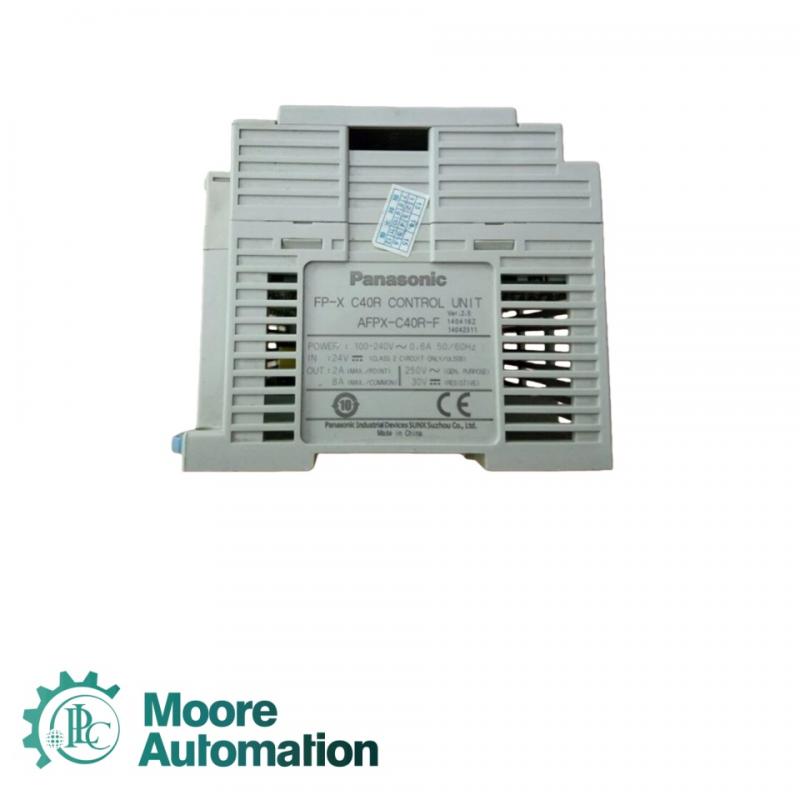

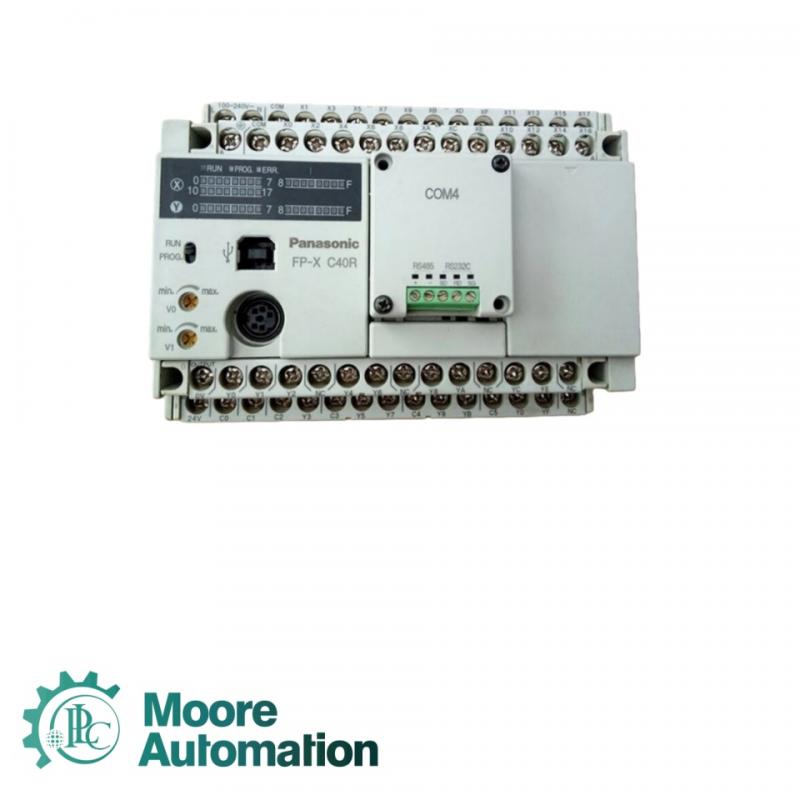

Panasonic AFPX-C40R-F Expansion Unit

The Panasonic AFPX-C40R-F is designed for flexible expansion and control applications in small and medium-sized automation systems. This module adopts a high-performance CPU architecture and a compact modular structure, which can seamlessly connect with FP-X host units and other expansion modules, achieving up to 382 input/output capabilities.

Power supply voltage: AC 100-240 V (50/60 Hz)
Power consumption: approximately 25 VA (typical value, slightly different depending on module configuration)
Input points: 24 point numerical input (24 VDC, drain/source optional)
Input current: approximately 7 mA/point (at 24 VDC)
Output points: 16 relay outputs (normally open contacts, rated 24 VDC or 240 VAC)
Output load current: 2 A/point (maximum), total maximum 8 A
Output response time: approximately 10 ms (relay type)
Program capacity: 32 k steps
Data register: 12k words (including internal registers and timing counters)
Scalable I/O points: up to 382 points (including CPU)
Number of connectable modules: up to 8 FP-X/FUN modules or simulation modules
Communication interface:
RS-232C: 5-pin circular interface (for programming or communication)
USB-B: 5-pin square interface (for programming or debugging)
Environmental conditions:
Working temperature: 0 ° C to+55 ° C
Storage temperature: -20 ° C to+70 ° C
Relative humidity: 10% to 90% (no condensation)
Anti vibration: 10-55 Hz, dual amplitude 0.75 mm
Impact resistance: 150 m/s ², 11 ms (3 times/direction)
Insulation resistance:>10 M Ω (500 V DC)
Protection level: IP20 (DIN rail installation environment)
