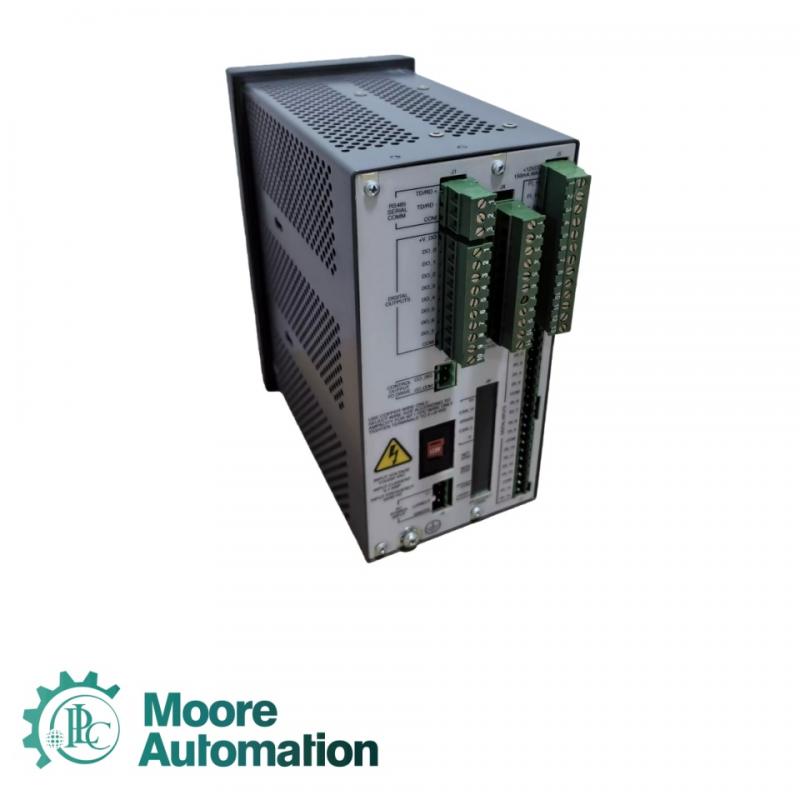

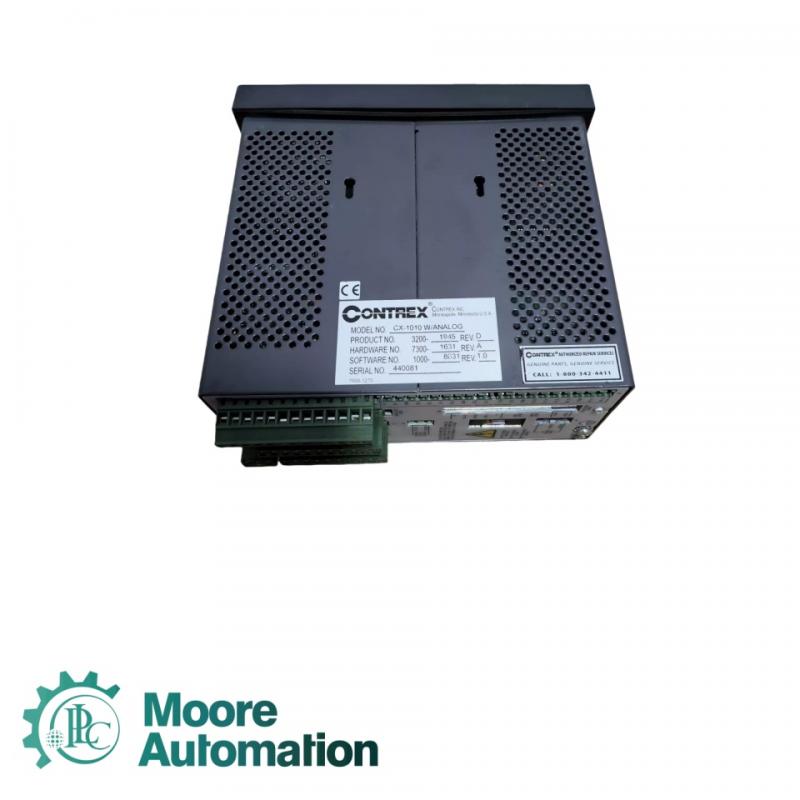

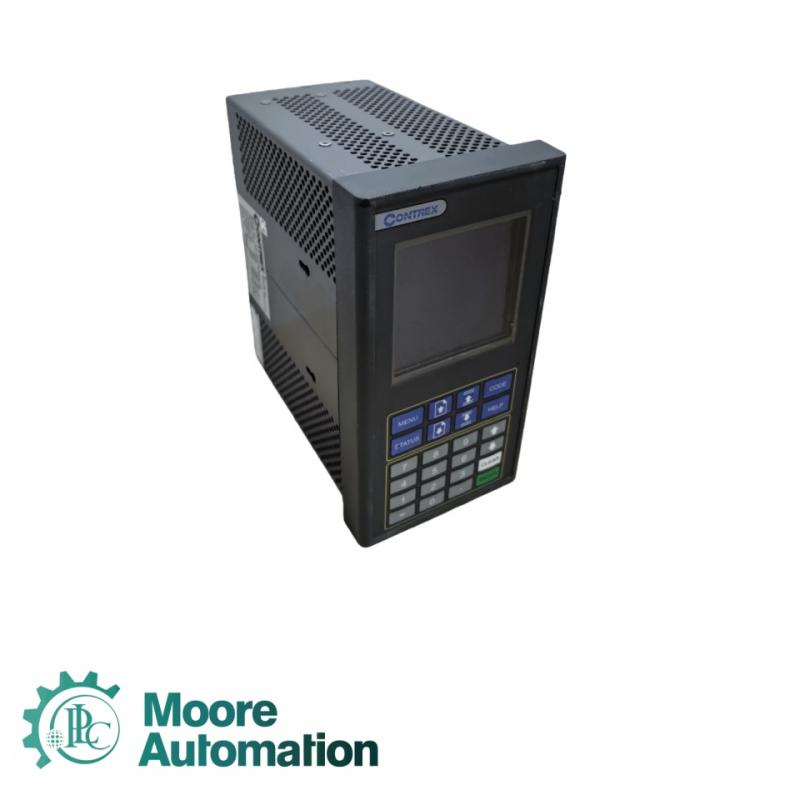

CONTREX CX-1010 W/ANALOG MOTION CONTROL MODULE

Product Name:  CX-1010 W/ANALOG

Brand Name: CONTREX

Product Origin:France

Payment: T/T

Shipping Port: Xia men

Delivery time: 1-3 days

CONTREX CX-1010 is a high-performance digital motion control module designed specifically for industrial automation systems, providing precise closed-loop speed control. This module supports multiple types of drivers, including DC, AC, servo, and vector drivers, and is suitable for various industrial applications such as mixing, conveying, winding, extrusion, and horizontal control. The CX-1010 provides a control loop time of 1 millisecond with zero cumulative error, ensuring high-precision speed ratio control. Its simulation tab supports 2 inputs and 1 output channel, suitable for application scenarios that require analog signal input and output. In addition, CX-1010 also supports interfaces with various drives, enabling system integration without complex programming.

Power input: 120/240 VAC
Power consumption: 10.0 W+3 V * motor current
Working temperature: 0 ° C to 55 ° C
Storage temperature: -20 ° C to 70 ° C
Humidity range: 0% to 90% RH (non condensing)
Control loop time: 1 millisecond
Encoder frequency: Supports up to 180 kHz
Input type:+12V or 0-20 mA analog input
Output type: 0-20 mA analog output
Interface type: digital and analog interface
Display interface: 14 line display screen with menu and help screen
Operation modes: speed mode and position mode
Built in PLC function: timer/counter and batch processing function
Communication function: Bidirectional communication with address addressing, supporting queries, downloads, and commands
Simulation tab: 2 inputs and 1 output channel
Device network options: ODVA version 2.0500K baud rate

Q : What is the operating temperature range of this module?
A : The working temperature range is from 0 ° C to 55 ° C, suitable for most industrial environments.

Q : What is the storage temperature range?
A : The storage temperature range is -20 ° C to 70 ° C, which can adapt to long-term storage or transportation.

Q : What are the supported power inputs and power consumption?
A : Supports 120/240 VAC power input, with a power consumption of 10 W+3 V x motor current.

Q : What is the control loop time of CX-1010?
A : The control loop time is 1 millisecond to ensure high-precision closed-loop speed control.
