 P+F HD2-DM-B FieldConnex Basic Diagnostic Module
HD2-DM-B HD2-DM-B HD2-DM-B

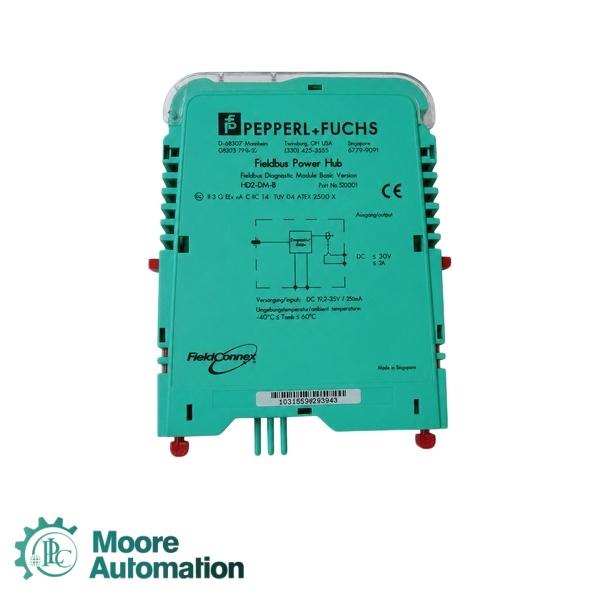

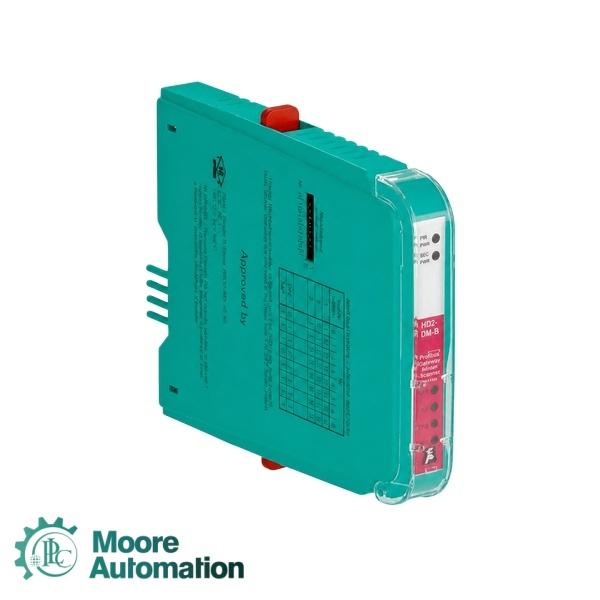

P+F HD2-DM-B FieldConnex Basic Diagnostic Module

hot selling

1 year warranty

Best choice and best discounts

Email me:sales6@askplc.com

  • Item NO.:

    HD2-DM-B

  • Order(MOQ):

    1

  • Payment:

    T/T

  • Product Origin:

    GERMANY

  • Color:

    Brand New

  • Shipping Port:

    Xiamen

  • Warranty:

    1 year

  • Product Origin:

    GERMANY

  • Lead Time:

    3-5 days
Contact Us

  • Product Detail

Specifications
The P+F HD2-DM-B is a plug-in basic diagnostic module in the P+F FieldConnex Series for Power Hub physical-layer monitoring. It checks primary and secondary bulk power supplies, detects trunk overloads or short circuits, identifies redundancy faults, and reports alarms through LEDs and a voltage-free contact without additional engineering. The P+F HD2-DM-B monitors four segments and is approved for Zone 2/Class I, Division 2 installations.
Rated voltage19.2–35 V
Fault contact1 A at 50 V DC, normally closed
Rated current20 mA
Segment isolation50 Veff functional insulation
Power dissipationMax. 0.5 W
Operating temperature−40 to +70 °C
Monitored segments4
Storage temperature−40 to +85 °C
Application Industry
01
Fieldbus control cabinetsMonitors the physical-layer health of four FieldConnex Power Hub segments.
02
Process automation systemsDetects bulk-power failures, trunk overloads, short circuits and redundant-module mismatches.
03
Maintenance programsProvides immediate LED indication and a common fault contact for faster troubleshooting.
04
Hazardous-area installationsSupports approved Zone 2 and Class I, Division 2 cabinet applications.
FAQ
What faults does the P+F HD2-DM-B detect?
It monitors primary and secondary bulk power, trunk overload or short circuit, and mismatched or failed redundant modules.
How many segments can it monitor?
The official datasheet specifies four monitored fieldbus segments.
Does it require software configuration?
No. It is described as plug-and-play basic diagnostics without additional engineering.
How are alarms reported?

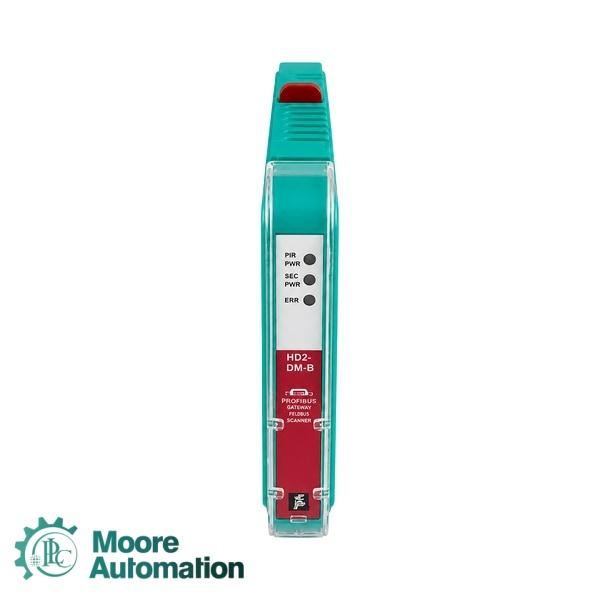

Status LEDs provide local indication, and a normally closed voltage-free contact provides a common fault signal.
Can Moore Automation help confirm the correct Power Hub module?
Yes. Moore Automation can review the motherboard, segment count, redundancy arrangement and approval requirements before shipment.
