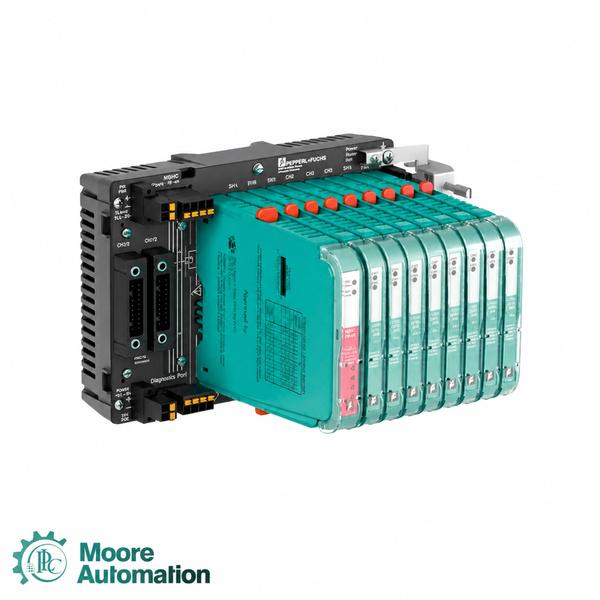

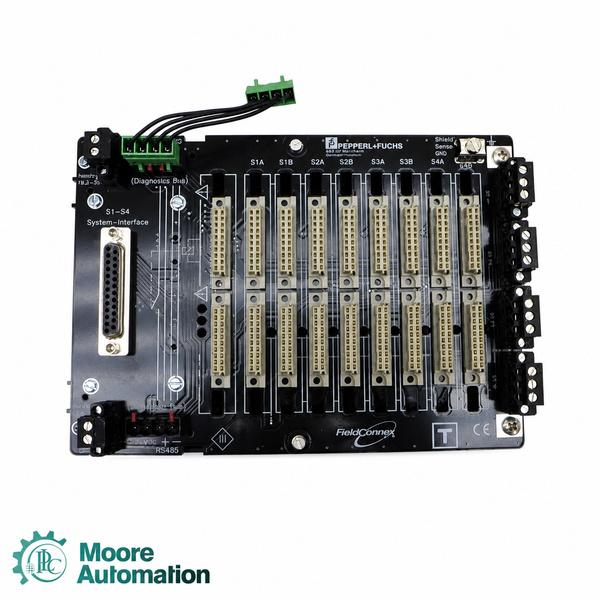

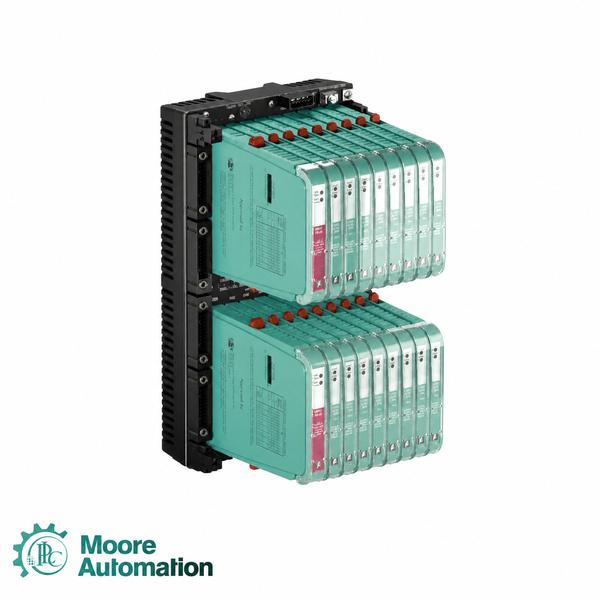

 P+F MBHC-FB-4R FieldConnex Power Hub Motherboard
MBHC-FB-4R MBHC-FB-4R MBHC-FB-4R

P+F MBHC-FB-4R FieldConnex Power Hub Motherboard

hot selling

1 year warranty

Best choice and best discounts

Email me:sales6@askplc.com

  • Item NO.:

    MBHC-FB-4R

  • Order(MOQ):

    1

  • Payment:

    T/T

  • Product Origin:

    GERMANY

  • Color:

    Brand New

  • Shipping Port:

    Xiamen

  • Warranty:

    1 year

  • Product Origin:

    GERMANY

  • Lead Time:

    3-5 days
Contact Us

  • Product Detail

Specifications
The P+F MBHC-FB-4R is a four-segment redundant FieldConnex Power Hub motherboard in the P+F FieldConnex Series. It provides plug-in sockets for redundant power-supply modules and a diagnostic module, integrates passive impedance filtering and 100 Ω termination for each segment, and connects to general-purpose DCS or PLC hosts through pluggable screw terminals. The P+F MBHC-FB-4R operates from a redundant 19.2–35 V SELV/PELV supply and supports Zone 2/Class I, Division 2 installation.
Supply connectionRedundant
Integrated termination100 Ω
Rated supply voltage19.2–35 V SELV/PELV
Fault contact1 A at 50 V DC, normally closed
Rated current12 A
Operating temperature−40 to +70 °C
Fieldbus segments4, redundant power supply
Degree of protectionIP20
Power dissipationTyp. 0.4 W per segment
Approximate mass580 g
Application Industry
01
DCS and PLC fieldbus cabinetsProvides four redundant FOUNDATION Fieldbus H1 or PROFIBUS PA segments for general-purpose host systems.
02
Process plantsDistributes conditioned fieldbus power in chemical, petrochemical, water-treatment and pharmaceutical automation systems.
03
Hazardous-area installationsSupports Zone 2 and Class I, Division 2 control-cabinet applications when installed according to the approvals.
04
Fieldbus modernizationAllows redundant power modules and diagnostics to be added or replaced within a modular Power Hub architecture.
FAQ
Is the P+F MBHC-FB-4R supplied with power modules?
The official datasheet describes MBHC-FB-4R as the motherboard. Buyers should confirm the required power-supply and diagnostic plug-in modules separately.
Which fieldbus protocols can this motherboard support?
It is intended for FOUNDATION Fieldbus H1 and PROFIBUS PA physical-layer installations through the FieldConnex Power Hub system.
Does it support redundant operation?
Yes. It provides four fieldbus segments with redundant power-supply connections.
Can it be installed in hazardous areas?
Yes, subject to the official installation conditions for Zone 2 or Class I, Division 2 locations.
Can Moore Automation verify compatibility before shipment?
Yes. Moore Automation can check the host system, Power Hub module selection, terminal type and required approvals before shipment.
