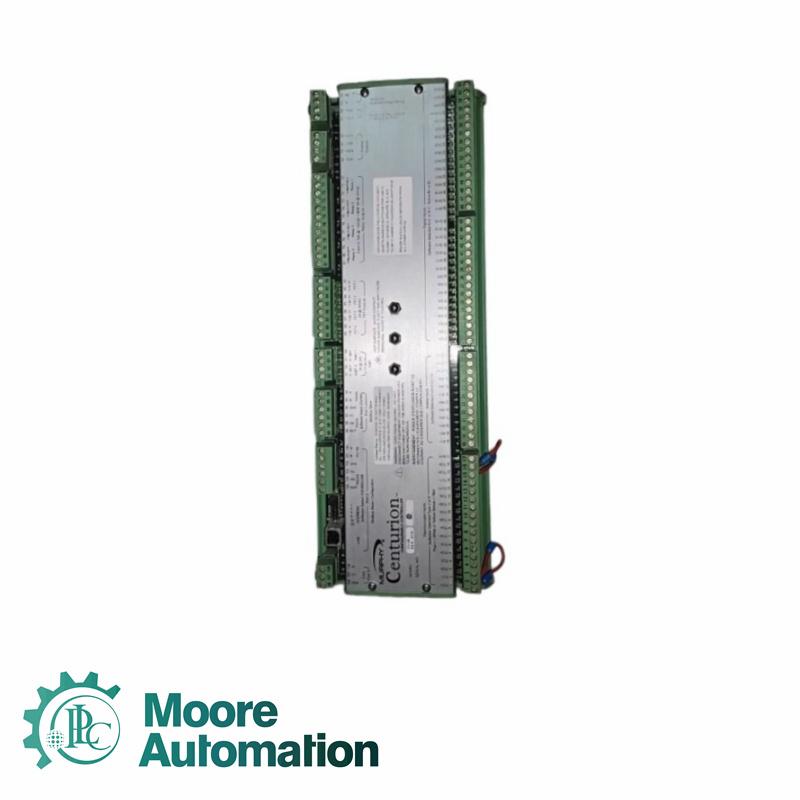

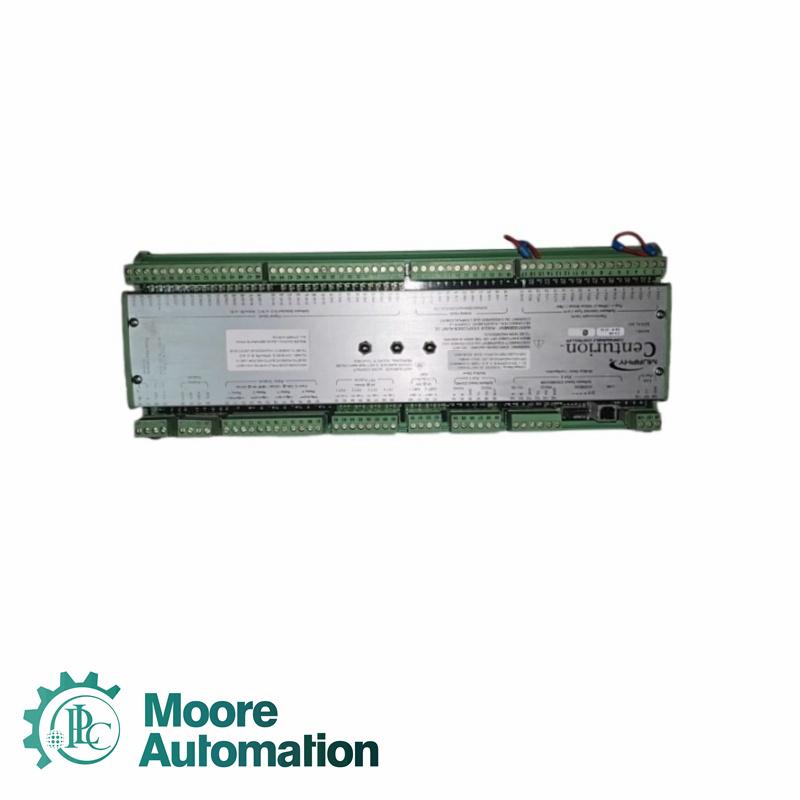

MURPHY C3-1A E6-K-0115 Controller

For brand new, original automation products at great prices, contact Sales Manager John Yang. He's available 24/7. For more information, please contact:

Long Description

The C3 Series Centurion Configurable Controller is a control and monitoring system. Primary designed for engine driven compressors, the C3 Series is well suited for many control applications using standard configurations to save money and reduce training. Additionally, Murphy can custom design a control package to meet exact specifications for a variety of applications.

The Centurion controller continuously monitors input signals and set points and commands outputs to maintain proper operation. When an out-of-limits event occurs, the controller will stop, shutdown, or control equipment to change conditions. The Auto-Start capabilities of the C3 Series allows for start/stop based on parameters such as pressure set points or by digital signals.

The Centurion provides real-time data via communications ports to a connected display and/or supervisory system. This advanced system offers multiple options for remote communications and operation including HMI's, PLC's, PC’s, and SCADA systems. The industry standard Modbus® protocol means greater support for a wide variety of communication equipment including radio and satellite communications systems.

Technical Details

Dimensions: 8×18.6×26.1 cm
Weight: 1.1 kg
Power Input: 10–32 VDC
Operating Temperature: -40 to 85 °C (-40 to 185 °F)
Configuration Software: MConfigPro (PC-based)
Port 1 Interface: RS232 or RS485
Port 1 Protocol: Modbus RTU (Slave)
Port 2 Serial Interface: RS232 or RS485
Port 2 Serial Protocol: Modbus RTU (Slave), Proprietary (Configuration Transfer)
Port 2 USB Interface: USB 1.1 (RS232 emulation via PC driver)
Port 2 USB Protocol: Modbus RTU (Slave), Proprietary (Configuration Transfer)
Port 2 USB Connector: USB Type B
Port 2 USB Feature: Automatic USB selection when signal detected
Port 3 Interface: CAN
Port 3 Protocol: Proprietary communication for Expansion I/O modules
I/O Configuration: Software selectable, no jumpers required
Digital Inputs: 32 optically isolated DC
Digital Input Type: NO or NC, active high or active low
Digital Input Feature: Non-incendive with LED indicators
Analog Inputs: 12 (4–20 mA or 0–5 V)
Analog Input Resolution: 10-bit
Thermocouple Inputs: 8 (Type J or K)
Thermocouple Resolution: 12-bit
Thermocouple Features: Open thermocouple detection, cold junction compensation
Magnetic Pickup Input: 30–10 kHz
AC Run Signal Range: 5 VAC rms min to 120 VAC rms max
Digital Outputs: 10 total
Relay Outputs: 4 (Form C dry contacts)
FET Outputs: 4 (source)
IGBT Outputs: 2 (sink)
Digital Output Feature: LED indicators
Analog Outputs: 2 (C3-1-A only)
Analog Output Type: 4–20 mA
Analog Output Resolution: 16-bit

FEATURES

● Fully-configurable control and monitoring system. Applications include recip. and screw compressors and pump systems.
● System is expandable to meet most 3-stage compressor applications.
● User configurable with Windows®-based software. Allows the operator to point-and-click to implement standard processes. All I/O points can be custom-programmed.
● No programming experience required.
● Local and remote communications, Modbus RTU via RS485/232.
● USB 1.1 support for laptops without a serial port.
● Approved Certification for Class I, Division 2, Groups B, C, & D Areas
● Last 20 Shutdown History List
● Event History (up to 32) List
● Active Alarm List
● 10 Maintenance Timers
● Run Hourmeter
● Support for No-flow Totalization
● 4 PID Loops w/ Override
