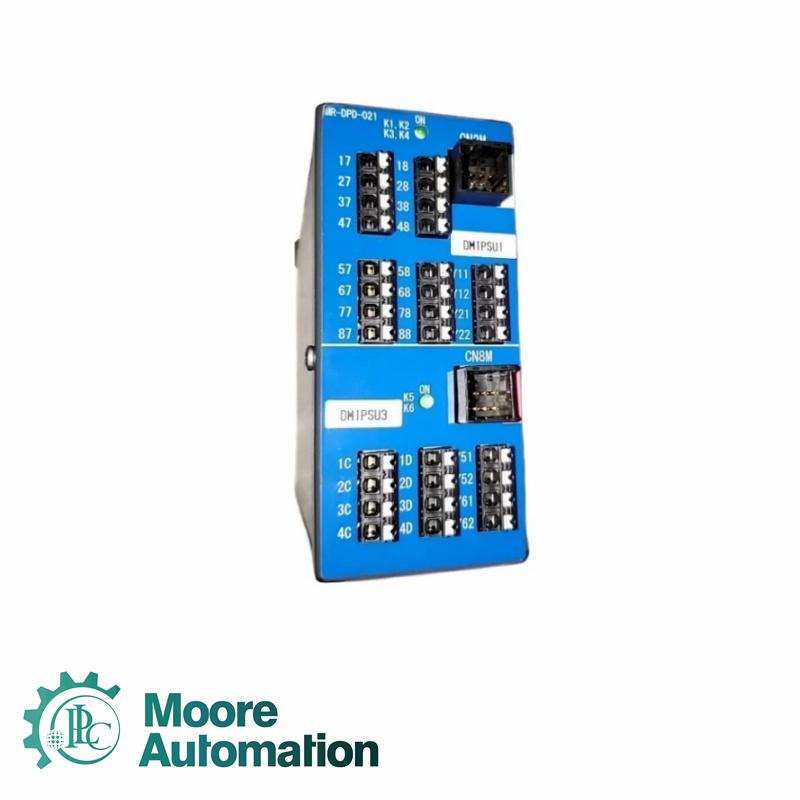

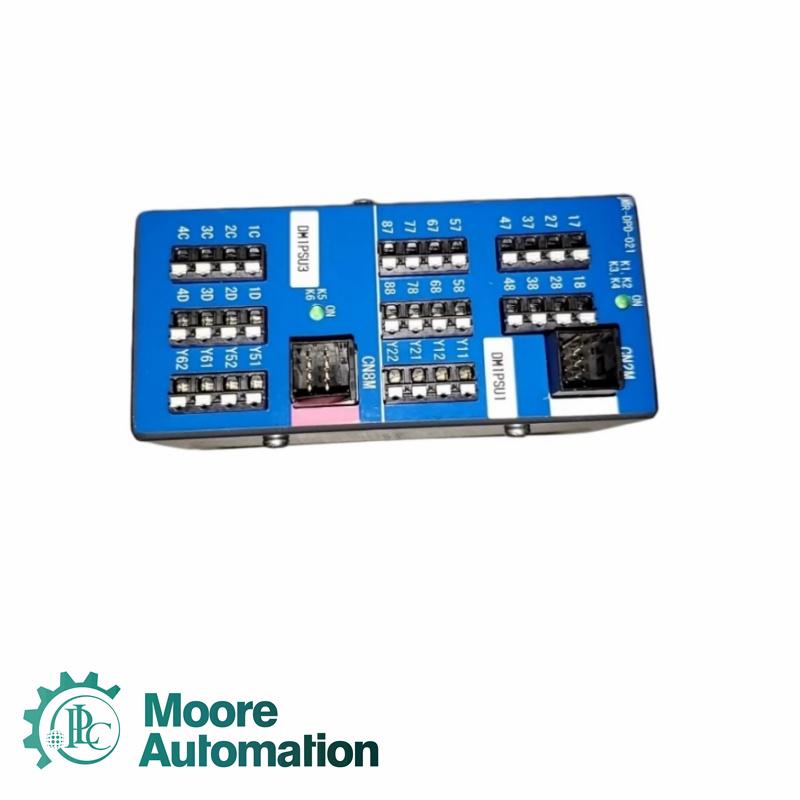

MADOKA MR-DPD-021 Connector Box

For brand new, original automation products at great prices, contact Sales Manager John Yang. He's available 24/7. For more information, please contact:

Long Description

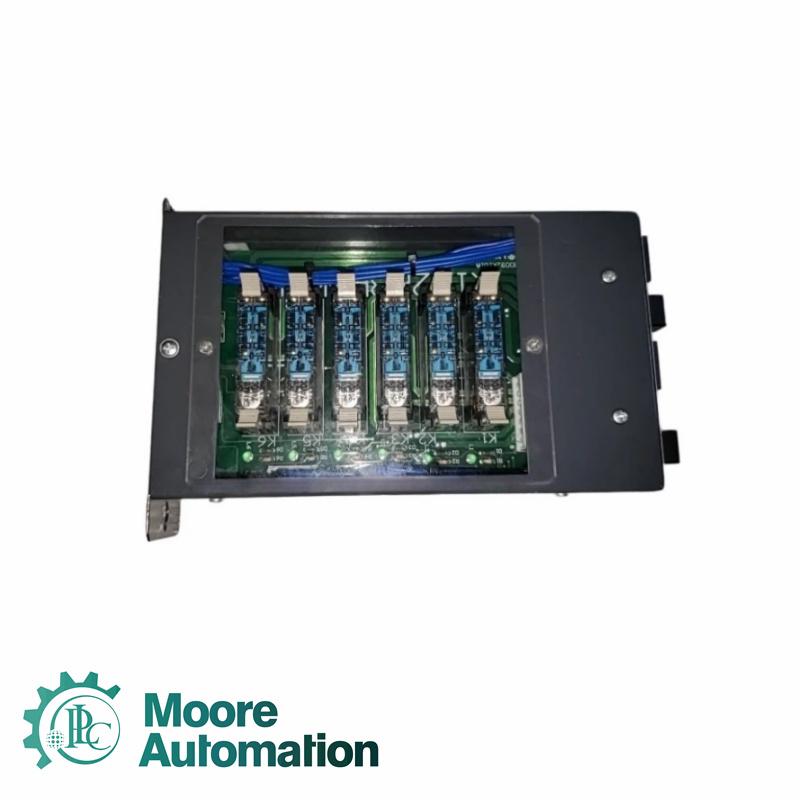

The MADOKA MR-DPD-021 Connector Box is designed for industrial automation control. It operates with DC24V input control, 125mA maximum, and provides output contacts rated AC250V 50/60Hz and DC30V=5A. The transparent acrylic cover allows visual inspection, while relays K1-K6, including G7SA-5A1B DC24V (Omron), can be replaced through the housing opening. The integrated structure uses SPT-THR 1.5/4-V-5.0 P26 (Phoenix) for compact assembly. Terminals support AWG18 and below with 8mm conductive length and AWG16 with 10mm conductive length. The MADOKA MR-DPD-021 Connector Box ensures easy installation and maintenance in automation panels and control systems, making it suitable for signal distribution, relay control, and modular automation setups.

Technical Details

Input Control: DC24V
Input Current: 125 mA (Max)
Output Contact AC: 250V 50/60Hz
Output Contact DC: 30V=5A
Cover Material: Transparent acrylic
Relay Replacement: Accessible through housing opening
Relays Used: K1-K6
Relay Model: G7SA-5A1B DC24V (Omron)
Integrated Structure: SPT-THR 1.5/4-V-5.0 P26 (Phoenix)
Terminal Type AWG18 and below: Insulating sleeve terminal, conductive length 8 mm
Terminal Type AWG16: Insulating sleeve terminal, conductive length 10 mm
Operating Temperature: -10°C to +55°C
Storage Temperature: -20°C to +85°C
Humidity Range: 5–95% RH non-condensing
Relay Switching Life: ≥100,000 operations at rated load
Contact Bounce Time: <3 ms
Input-Output Response Time: <10 ms

FAQ

Q: What about your delivery time of MR-DPD-021?
A: Generally 1-3 days after receiving your payment. The specific delivery time depends on the type and quantity of the order.

Q: How long is the warranty period of MR-DPD-021?
A: We offer a standard one-year warranty for all new and original products.

Q: Do you offer any discounts?
A: Yes! For discounts on MR-DPD-021, please contact John for the best offer.
