 KEYENCE SZ-VH1 SZ-V Series Safety Laser Scanner Head
SZ-VH1 SZ-VH1 SZ-VH1

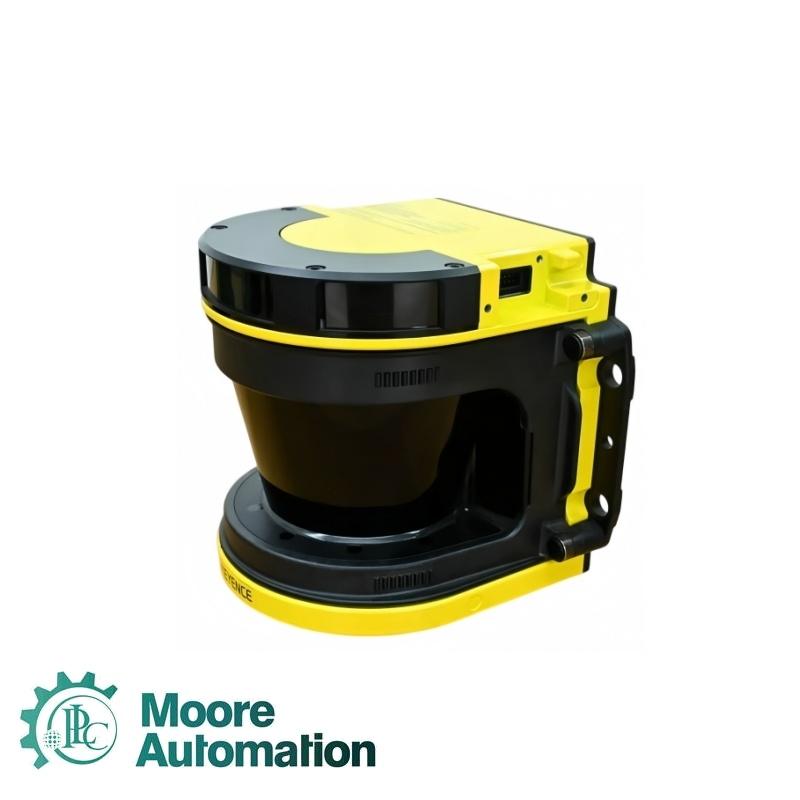

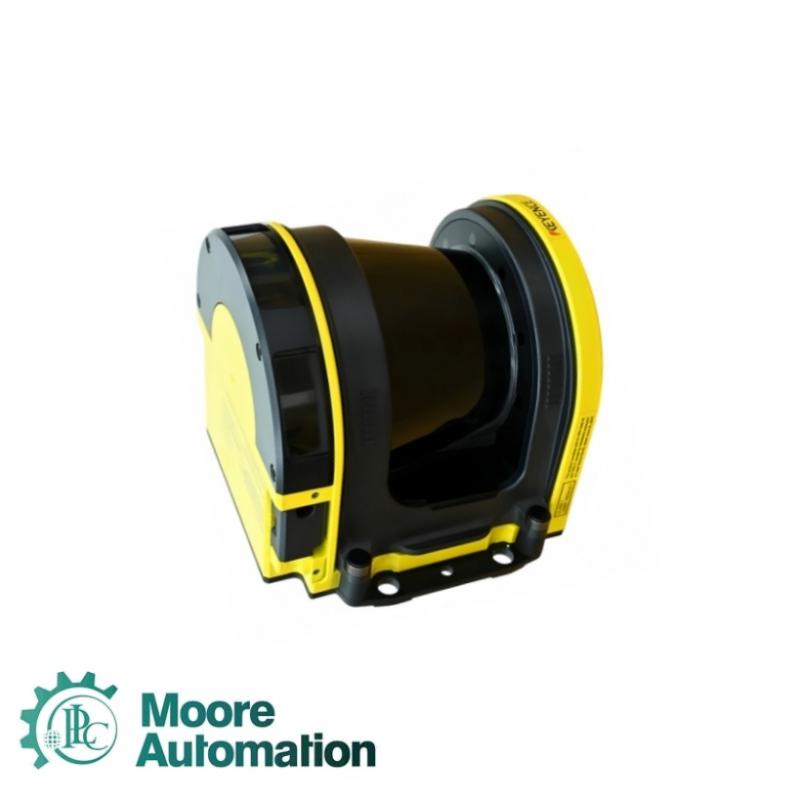

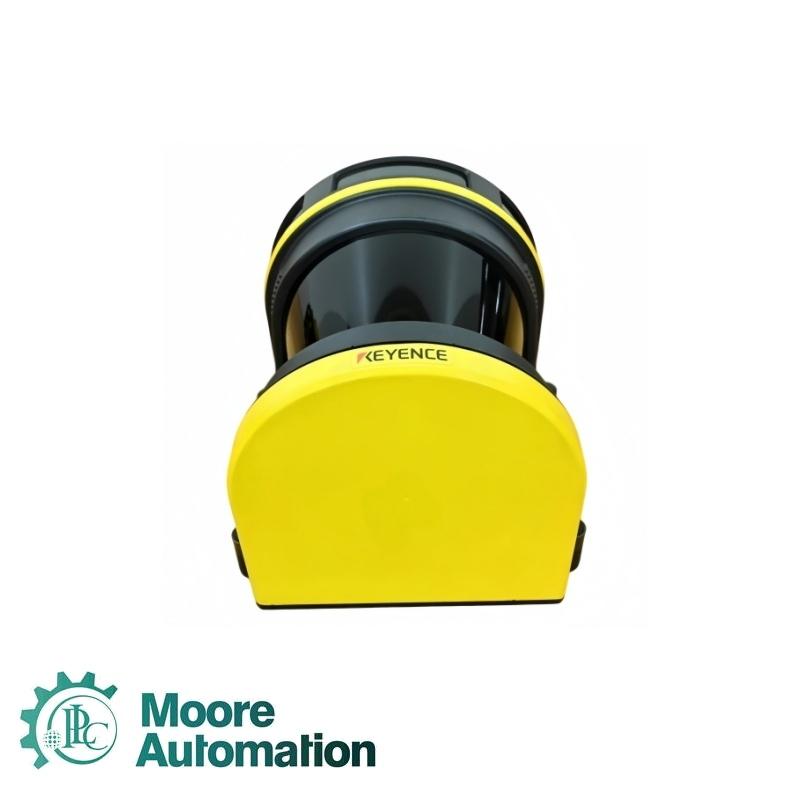

KEYENCE SZ-VH1 SZ-V Series Safety Laser Scanner Head

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

  • Order(MOQ):

    1

  • Payment:

    T/T

  • Product Origin:

    UK

  • Color:

    Brand New

  • Shipping Port:

    Xiamen

  • Warranty:

    1 Year

  • Product Origin:

    UK

  • Lead Time:

    3-5 Days
Contact Us

  • Product Detail

Specifications
The KEYENCE SZ-VH1 is a standard scanner head for the SZ-V Series safety laser scanner platform. Official specifications identify a non-camera head with a 1,600 g approximate weight; the series provides 190° detection, Class 1 infrared laser operation and IP65 environmental protection.
Product typeScanner head
SeriesSZ-V Series
Head typeStandard type, without camera
Detectable angle190° (-5° to 185°)
Minimum detectable object20, 30, 40, 50, 70 or 150 mm, setting-dependent
Maximum protection zone8.4 m at 70/150 mm in Standard Mode
Maximum warning zone26 m at 70/150 mm in Standard Mode
Light sourceInfrared laser diode, 905 nm
Laser classClass 1, IEC/EN 60825-1
Enclosure ratingIP65, IEC 60529
Operating temperature-10 to +50 °C, no freezing
Operating humidity35 to 85% RH, no condensation
Scanner-head materialMagnesium case; polycarbonate/PEI window
WeightApprox. 1,600 g
Application Industry
01
Machine perimeter safeguardingCreates configurable protective zones around hazardous machine areas.
02
Access-point protectionMonitors entry areas where physical guarding must remain open for material flow.
03
Multi-zone safety monitoringSupports protection and warning zones selected for changing machine conditions.
04
Multi-head installationsExtends coverage where a compatible system uses more than one scanner head.
FAQ
Which display-unit configuration is required before installing KEYENCE SZ-VH1?
Pair the standard scanner head with a compatible display unit, system memory and connection cable selected for the required system functions.
What detection angle should be allowed for when positioning KEYENCE SZ-VH1?
The detection field spans 190°, from -5° to 185°. Keep the optical window unobstructed across the configured protective area.
Can KEYENCE SZ-VH1 be used where washdown is expected?
The enclosure rating is IP65. Confirm that the planned cleaning method and connector installation remain within that rating.
What ambient limits apply to KEYENCE SZ-VH1?
Operate from -10 to +50 °C without freezing and at 35 to 85% relative humidity without condensation.
Does KEYENCE SZ-VH1 include a monitoring camera?
No. This is the standard scanner head; the separate camera-equipped head is identified as a different product variant.
