 KEYENCE GT2-H32 High-Accuracy Digital Contact Sensor Head
GT2-H32 GT2-H32 GT2-H32

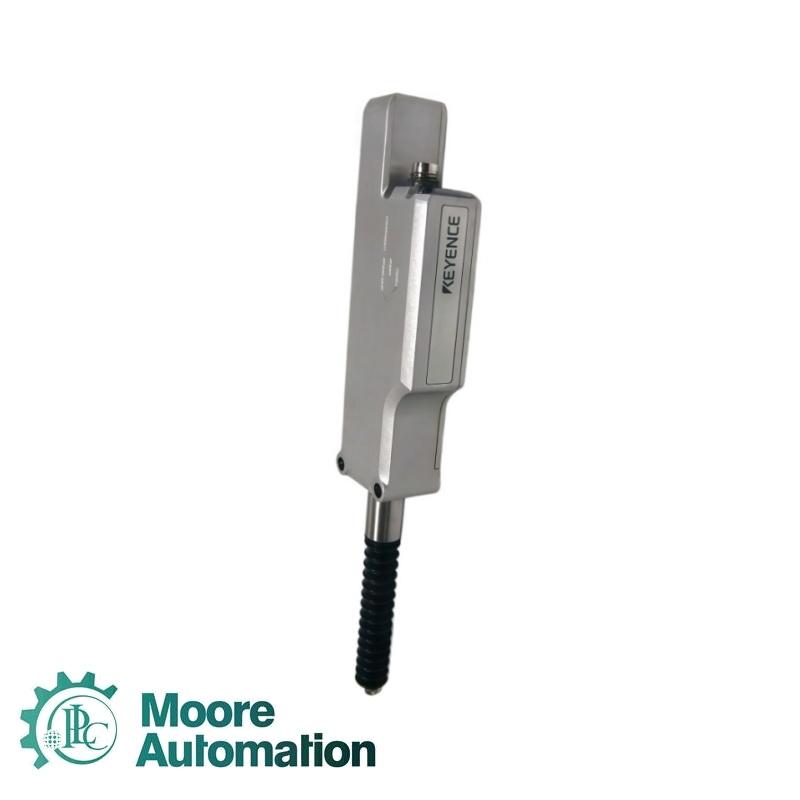

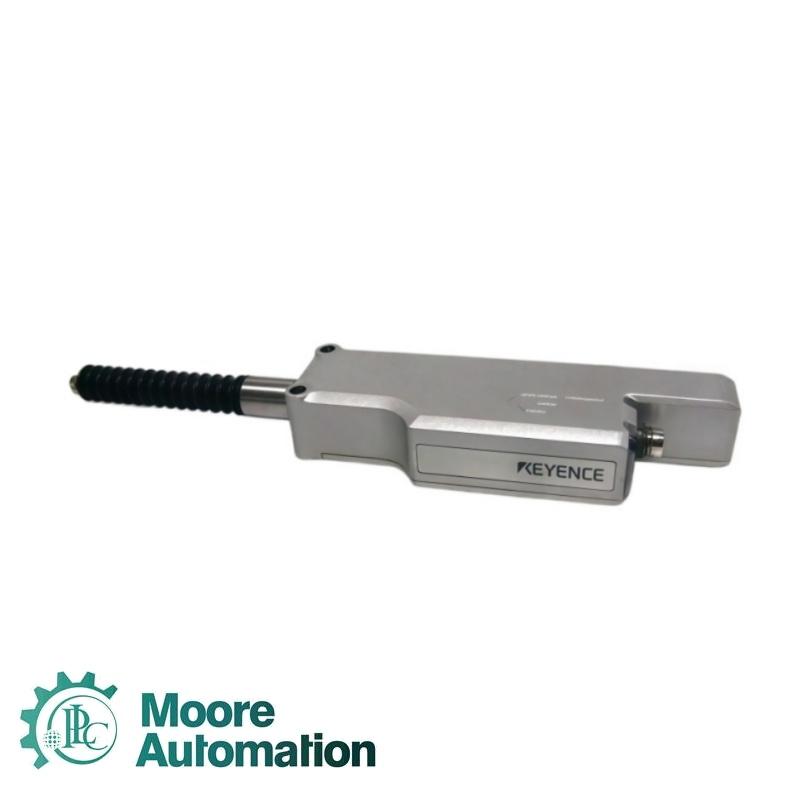

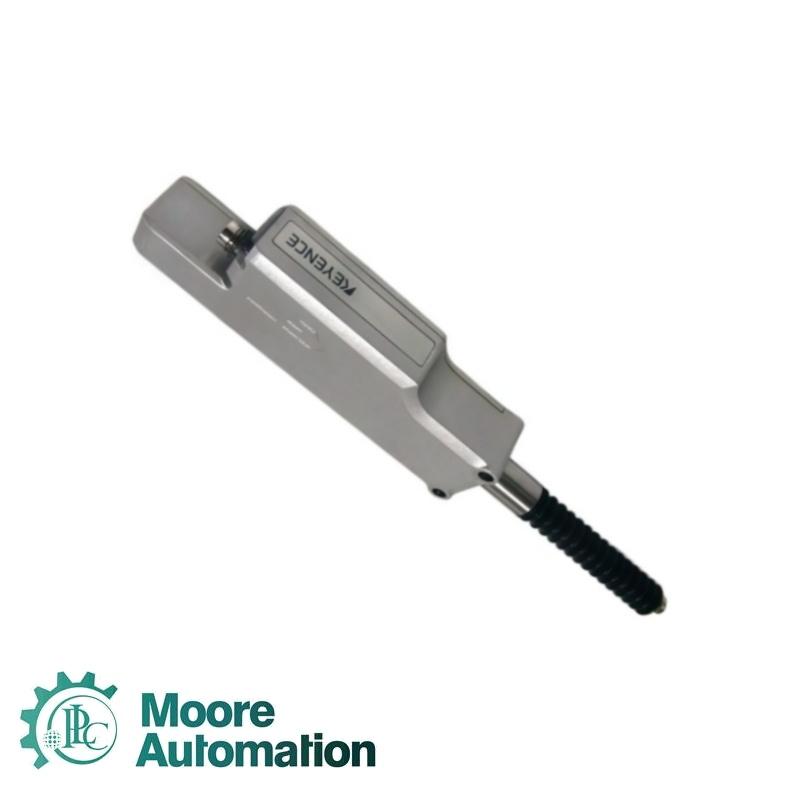

KEYENCE GT2-H32 High-Accuracy Digital Contact Sensor Head

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

  • Order(MOQ):

    1

  • Payment:

    T/T

  • Product Origin:

    UK

  • Color:

    Brand New

  • Shipping Port:

    Xiamen

  • Warranty:

    1 Year

  • Product Origin:

    UK

  • Lead Time:

    3-5 Days
Contact Us

  • Product Detail

Specifications
The KEYENCE GT2-H32 is a high-accuracy digital contact sensor head in the GT2 Series. Its absolute quartz-glass scale and CMOS projection detection system provides a 32 mm measuring range with 0.5 μm resolution. The head includes red and green status indication, IP67 enclosure protection and an M8 connection for an optional sensor-head cable.
Product typeHigh-accuracy digital contact sensor head
Product seriesGT2 Series
Detection systemQuartz glass scale, CMOS image sensor projection system, absolute type
Measuring range32 mm
Resolution0.5 μm
Indicated accuracy3 μm (p-p) at 20 °C
Sampling cycle1 ms
Mechanical response6 Hz at 20 °C
Measuring force — downward2.1 N
Measuring force — side1.8 N
Measuring force — upward1.5 N
Operation indicator2-color LED (red, green)
Enclosure ratingIP67
Ambient temperature-10 to +55 °C (no freezing)
Relative humidity35 to 85% RH (no condensation)
Vibration resistance10 to 55 Hz; double amplitude 1.5 mm; 2 h each in X, Y and Z
Sensor head cableOptional; M8 connector
WeightApprox. 270 g, excluding cable
Application Industry
01
Thickness inspectionContact measurement of part thickness and dimensional variation on production lines.
02
Height and step measurementChecks component height, seating position and step differences using absolute displacement measurement.
03
Runout inspectionMeasures radial or axial movement on rotating parts within the sensor head response range.
04
Stroke and position verificationConfirms travel and position changes over the 32 mm measuring range.
FAQ
Which amplifier and cable arrangement should be prepared for KEYENCE GT2-H32?
The sensor head uses an optional head cable connected through its M8 connector. Select compatible GT2-series electronics and verify the required cable length before installation.
How does mounting direction affect the measuring force of KEYENCE GT2-H32?
At the center of the measuring range, the specified force is 2.1 N downward, 1.8 N sideways and 1.5 N upward. Dust-boot installation condition can affect the actual force.
What measuring range and resolution does KEYENCE GT2-H32 provide?
The measuring range is 32 mm and the resolution is 0.5 μm. Indicated accuracy is specified as 3 μm peak-to-peak at 20 °C.
What environmental limits apply when installing KEYENCE GT2-H32?
The enclosure rating is IP67. Use it from -10 to +55 °C without freezing and at 35 to 85% RH without condensation.
What dynamic response should engineers consider for KEYENCE GT2-H32?
The sampling cycle is 1 ms, while the mechanical response is specified as 6 Hz at 20 °C. Confirm that target motion is within the mechanical response capability.
