 KEYENCE LJ-X8080 LJ-X8000 Series 2D/3D Laser Profiler Sensor Head
LJ-X8080 LJ-X8080 LJ-X8080

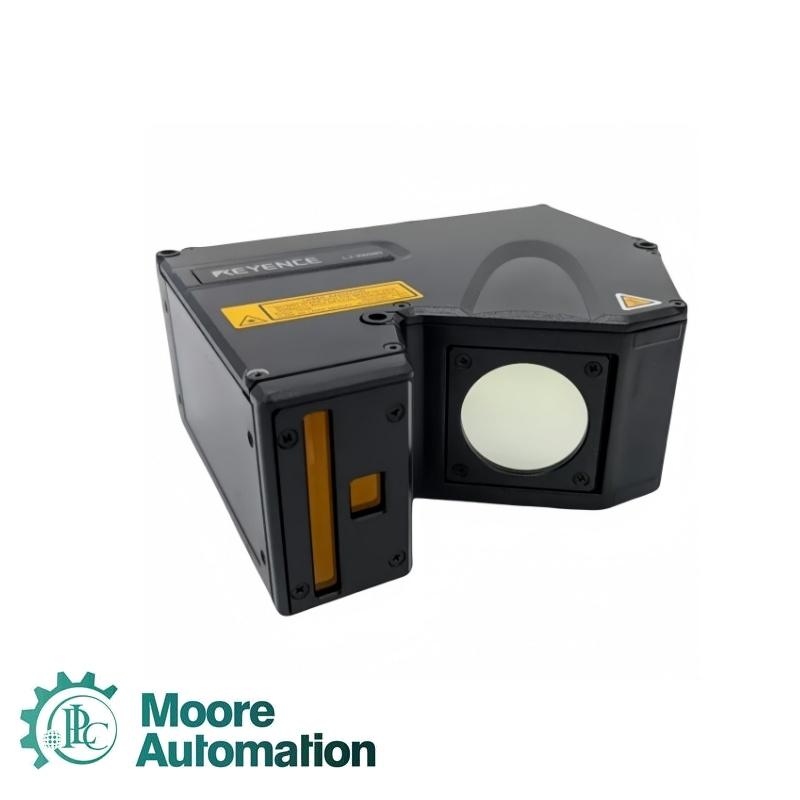

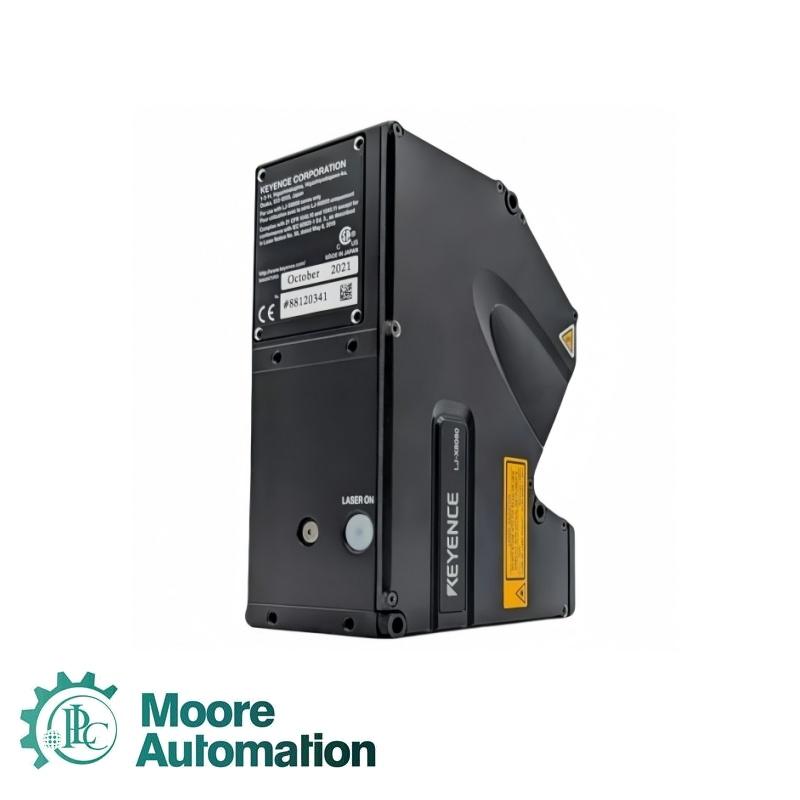

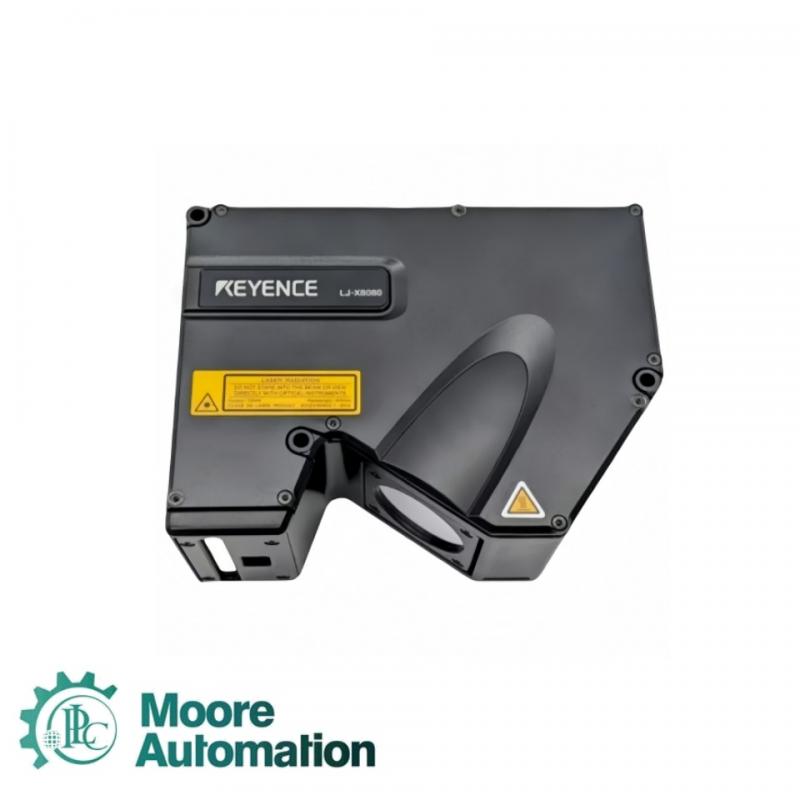

KEYENCE LJ-X8080 LJ-X8000 Series 2D/3D Laser Profiler Sensor Head

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

  • Order(MOQ):

    1

  • Payment:

    T/T

  • Product Origin:

    UK

  • Color:

    Brand New

  • Shipping Port:

    Xiamen

  • Warranty:

    1 Year

  • Product Origin:

    UK

  • Lead Time:

    3-5 Days
Contact Us

  • Product Detail

Specifications
The KEYENCE LJ-X8080 is a sensor head for the LJ-X8000 Series 2D/3D laser profiler system. It uses a 405 nm blue semiconductor laser, provides a 41 mm full-scale Z range and captures 3,200 profile points across a 35 mm reference-width field.
Product type2D/3D laser profiler sensor head
SeriesLJ-X8000 Series
Reference distance73 mm
Z measurement range±20.5 mm; 41 mm full scale
X width at near position30 mm
X width at reference position35 mm
X width at far position39 mm
Light sourceBlue semiconductor laser, 405 nm
Laser classClass 2M, IEC 60825-1
Laser output10 mW
Spot size at referenceApprox. 44 mm × 72 μm
Z repeatability0.5 μm
X repeatability1 μm
Z linearity±0.03% F.S.; ±0.004% representative
X data interval12.5 μm; 10 μm configurable
Profile data3,200 points
Enclosure ratingIP67 with proper cable connection
Operating temperature0 to +45 °C
Operating humidity85% RH or less, no condensation
WeightApprox. 1,100 g
Application Industry
01
Height and step inspectionMeasures profile height, steps and level differences without contact.
02
Width and gap measurementUses dense X-axis profile data to evaluate widths, gaps and edge positions.
03
Surface profile inspectionCaptures cross-sectional shape for warpage, groove and contour checks.
04
3D dimensional inspectionCombines successive profiles to build three-dimensional measurement data.
FAQ
What controller and cable should be selected for KEYENCE LJ-X8080?
Use a compatible profiler controller and the specified sensor-head cable; confirm cable length and system configuration before installation.
How much Z travel can KEYENCE LJ-X8080 measure?
The full-scale Z range is 41 mm around a 73 mm reference distance, expressed as ±20.5 mm.
What X-axis field width does KEYENCE LJ-X8080 provide?
The width is 35 mm at the reference position, changing to 30 mm near and 39 mm far.
What laser precautions apply to KEYENCE LJ-X8080?
The visible blue source is classified as Class 2M under IEC 60825-1. Follow the official laser safety instructions and avoid direct optical viewing.
What installation environment is specified for KEYENCE LJ-X8080?
Use it from 0 to +45 °C and at 85% RH or less without condensation; the enclosure reaches IP67 when the cable connection is correctly completed.
