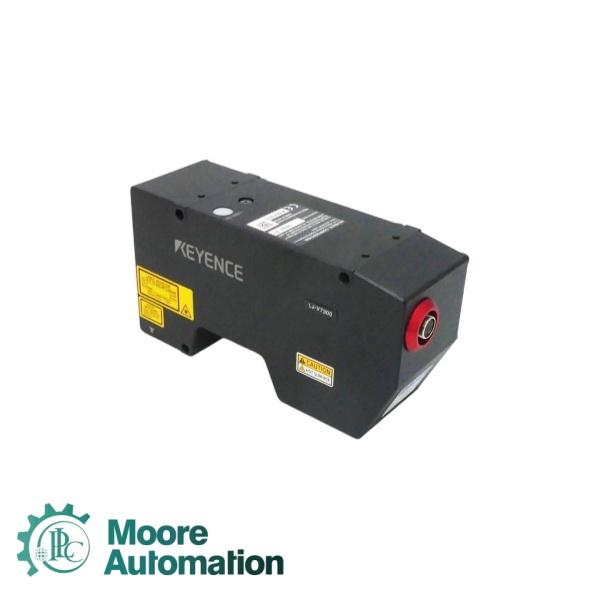

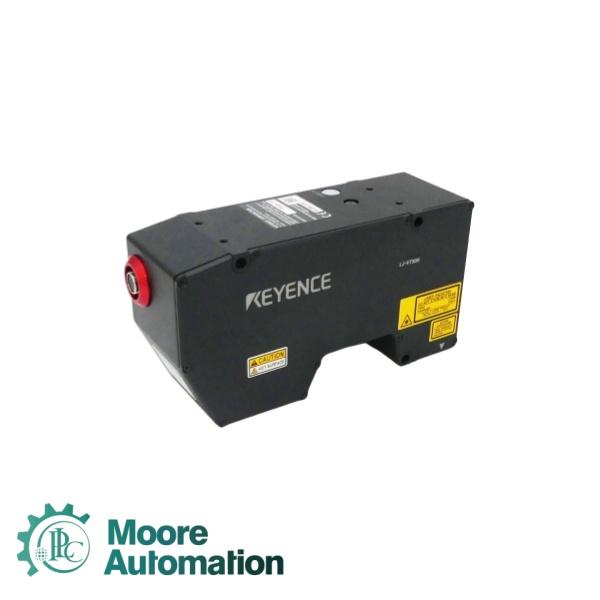

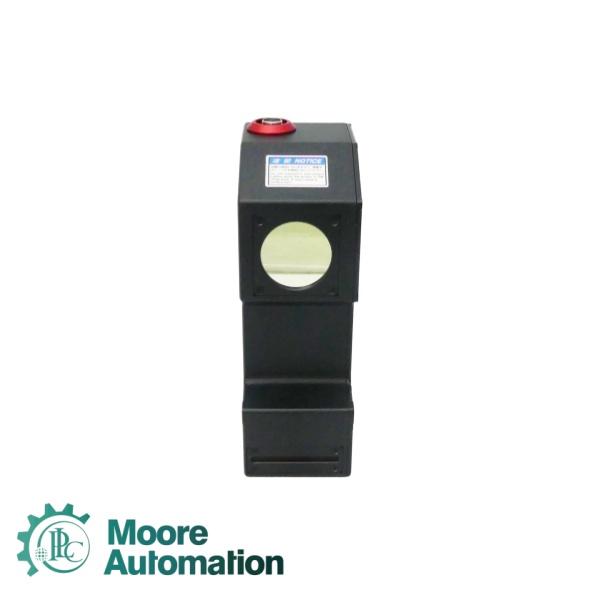

KEYENCE LJ-V7300 High-speed 2D/3D Laser Scanner

Operating Voltage/Power:

24 VDC ± 10% (via controller)

Laser Source:

405 nm blue semiconductor laser, Class 2

Measurement Range:

300 mm (Reference) ± 145 mm (Z-axis), 180 mm

Sampling Speed:

Up to 16 µs (62.5 kHz) sampling cycle

Resolution & Accuracy:

5 µm (Z-axis repeatability), ±0.05% to ±0.15% F.S. linearity

Q1: How does Keyence support High-Mix, Low-Volume (HMLV) production lines?

A: Keyence designs multi-program, software-flexible sensors that allow automated manufacturing lines to execute instant recipe changeovers via PLC commands, completely eliminating the need for physical retooling or manual adjustments.

Q2: Why does Keyence use proprietary hardware instead of standard PC-based vision architectures?

A: Keyence utilizes dedicated, ASIC-driven machine vision platforms running deterministic real-time operating systems to eliminate processing latencies, guarantee microsecond-level execution speeds, and ensure long-term hardware configuration stability.

Q3: How do Keyence optical sensors overcome difficult target material physics?

A: Keyence mitigates surface glare, transparency, and low reflectivity by employing short-wavelength blue lasers, real-time pixel-by-pixel laser intensity adjustments, and multi-exposure High Dynamic Range (HDR) fusion algorithms.
