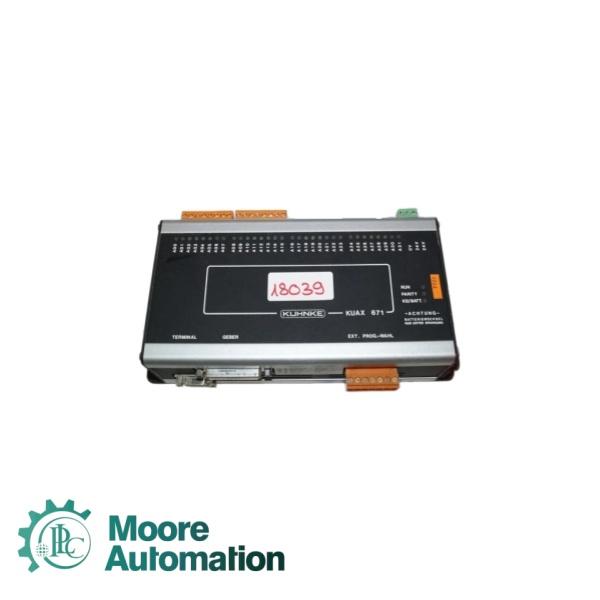

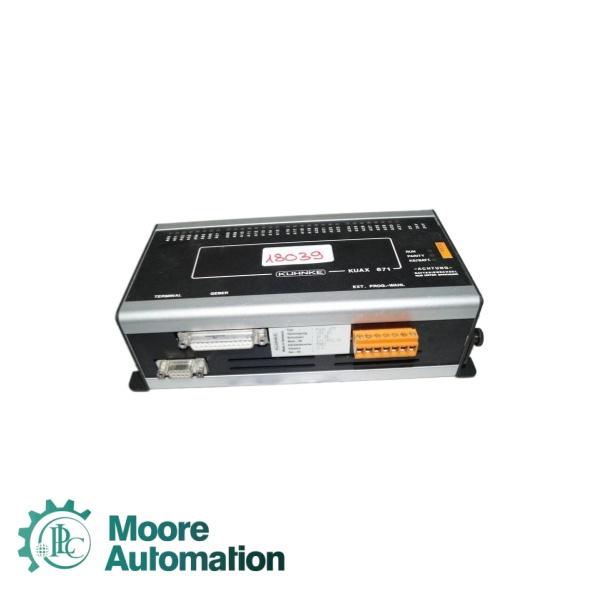

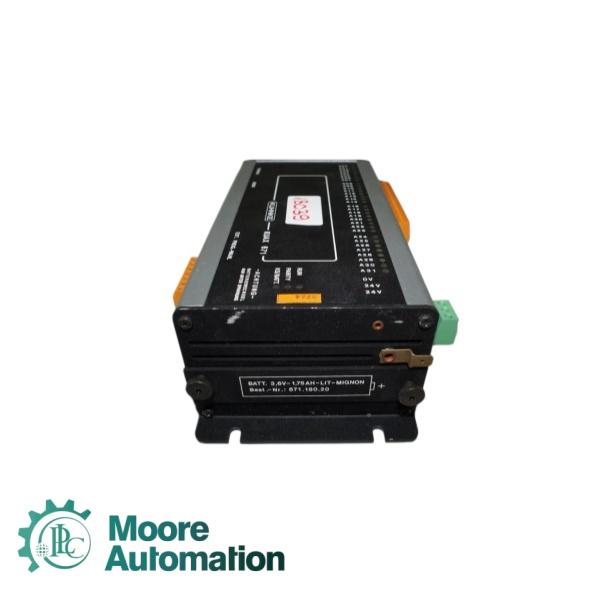

Kuhnke KUAX671 671.022.16 electronic cam controller

Main Input Supply Voltage:

24V DC nominal

Built-in Output Terminals:

16 independent channels

Sensor Interface Socket:

25-pin D-Sub plug connection

Localized HMI Interface:

2-line digital terminal display screen paired with an integrated programming keyboard

Physical Protection Classification:

IP20 rating

Q1: How does Kuhnke implement software engineering and runtime execution across its modern PLC and IPC lines?

A: Kuhnke has completely standardized its control ecosystem around the industry-recognized IEC 61131-3 compliant CODESYS V3 programming environment. Instead of maintaining a proprietary software IDE, Kuhnke embeds standard CODESYS runtime kernels inside its field devices. This means developers can write code in standard industrial languages while utilizing built-in CODESYS SoftMotion and SoftMotion CNC+Robotics libraries. This allows the controller to orchestrate complex physical kinematic movements and trajectory path curves directly inside the main PLC task cycle without specialized motion cards.

Q2: What is the technical mechanism behind Kuhnke’s high-speed "Electronic Cam Control," and how has it changed?

A: Historically, systems like the KUAX series used hardware Gray code or parallel SSI encoder links to map physical machine angles to immediate digital output switches via dedicated onboard logic circuits. In Kuhnke’s current architecture (such as the Kuhnke FIO CAM Control system), this mechanism is processed via high-speed deterministic fieldbuses. The system uses Distributed Clocks (DC) to synchronize absolute angular encoder feedback with sub-millisecond precision. The digital cam parameters are calculated in real time, enabling microsecond-level response times for triggering pneumatic valves, injectors, or cutters without mechanical wear.

Q3: What fieldbus backbone and internet architectures do Kuhnke systems use to handle Industrial IoT (IIoT) edge data?

A: The communication backbone of modern Kuhnke I/O slices is the EtherCAT E-bus protocol. When Kuhnke FIO modules are clipped together on a DIN rail, they communicate via an internal low-voltage differential signaling network running native EtherCAT directly down to the terminal backplane. For upward factory networking and data infrastructure integration, Kuhnke devices utilize an embedded OPC UA server layer running over industrial Ethernet. This allows them to function as edge devices, securely pushing local telemetry data to higher-level SCADA, MES, or cloud environments without a separate hardware gateway.
