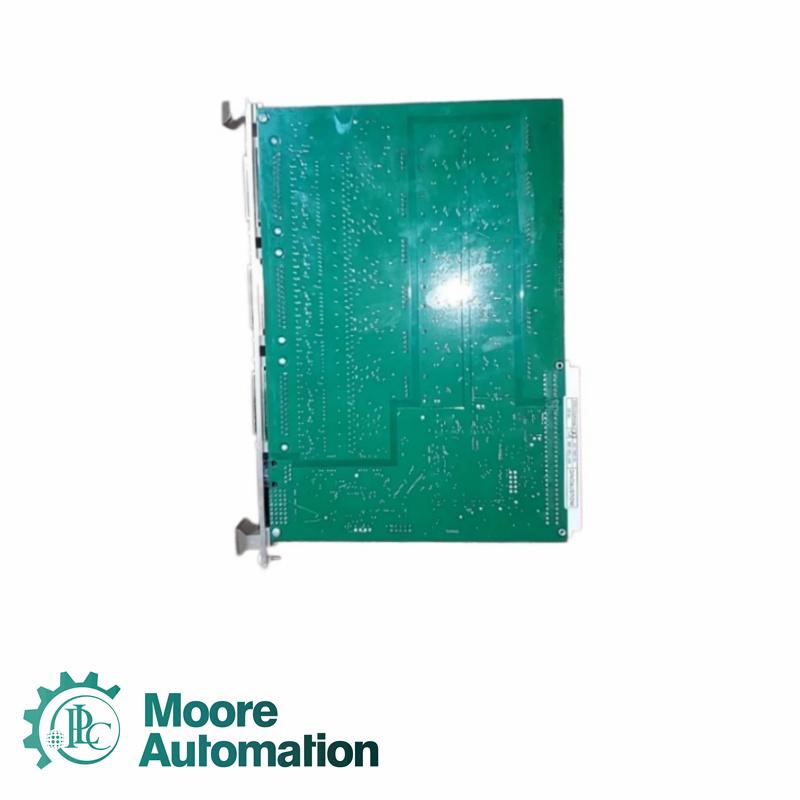

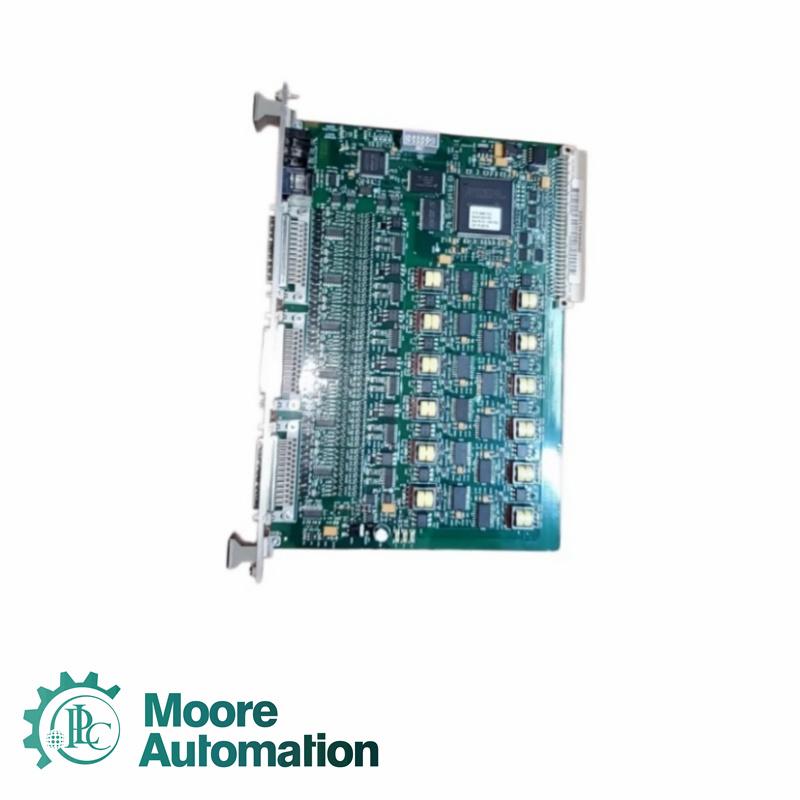

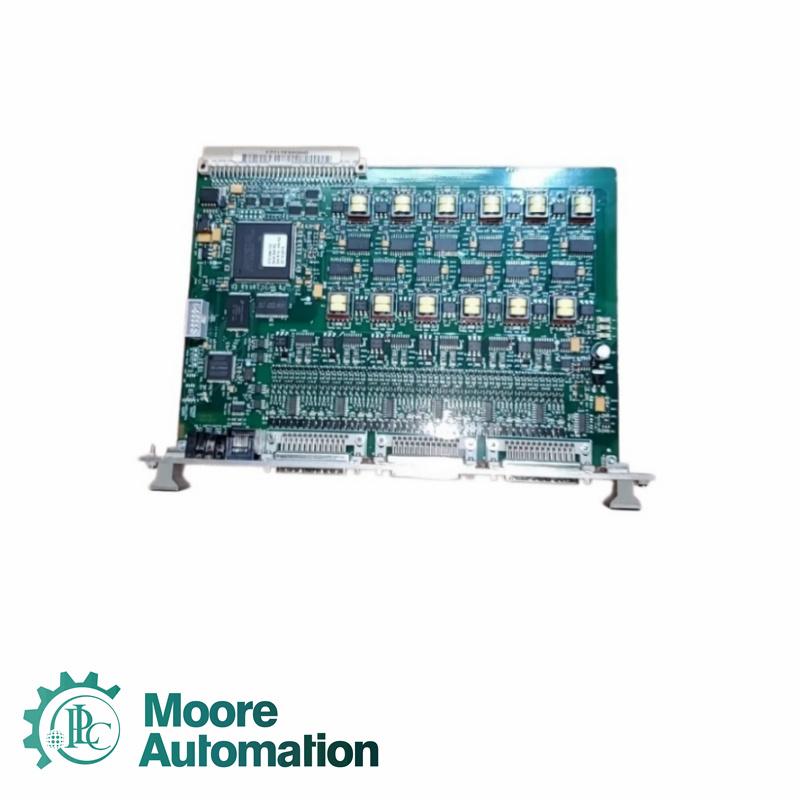

INDUSTRONIC 341-720-300 12 DAL 03 analog line card

For brand new, original automation products at great prices, contact Sales Manager John Yang. He's available 24/7. For more information, please contact:

Long Description

The analog line card 341-720-300 12 DAL 03 serves to receive and output AF signals as well as to read in and output 60 V line signals. Thus, it forms the interface to analog intercom stations, amplifiers, tone generators, voice memories, etc. Furthermore the linecard 341-720-300 12 DAL 03 is controlled by the DXC controller.

Technical Details

Height x Depth: 233 × 160 mm (9.17" × 6.30")
Front Plate Dimensions: 6 RU, 4 HP
Weight: Approx. 0.8 kg (1.76 lbs)
Plug Types: PC612-C64/Sub-D 25
Control Electronics Voltage: 5 V
Control Electronics Current: 0.3 A
AF Input Voltage: 0 Vss to 3.5 Vss
AF Input Impedance: Approx. 5,000 Ω
AF Output Voltage: 0 Vss to 3.5 Vss
AF Output Impedance: 300 Ω
Peripheral Operating Voltage: 48 V to 72 V
Max Current via AF Transformer: 350 mA
Max Total Current per 8 Lines: 350 mA
Min Input Voltage to Detect Line Active: 38 V
Operating Ambient Temperature: -5 °C to +50 °C (+23 °F to +122 °F)
EMC Standards: IEC/EN 61000-6-2, IEC/EN 61000-6-4
Front Interfaces: 1 × RS232 service, 2 × 25-pin Sub-D female for control lines, 1 × 25-pin Sub-D female for AF signals, 1 × bus interface
AF Channel Isolation: Transformers for galvanic separation per channel

FEATURES
Management of up to 12 analog intercom stations,
Management of up to 48 line inputs/outputs,
Protected line outputs against short circuits and overvoltage
One green LED per each intercom station to indicate incoming and outgoing AF signals,
Red LED indicates failures,
Hot swapping of the line card,
Galvanic separation between transmission lines and electronics,
Digitizing of the incoming AF signals and through-connection of the PCM data to the DXC controller (and vice versa),
HDLC interface for the communication with the DXC controller,
Easy to service connection of intercom stations by three 25-pin Sub-D plugs at the front plate.

FAQ

Q: What about your delivery time of 341-720-300 12 DAL 03?

A: Generally 1-3 days after receiving your payment. The specific delivery time depends on the type and quantity of the order.

Q: How long is the warranty period of 341-720-300 12 DAL 03?
A: We offer a standard one-year warranty for all new and original products.

Q: Do you offer any discounts?
A: Yes! For discounts on 341-720-300 12 DAL 03,  please contact John for the best offer.
