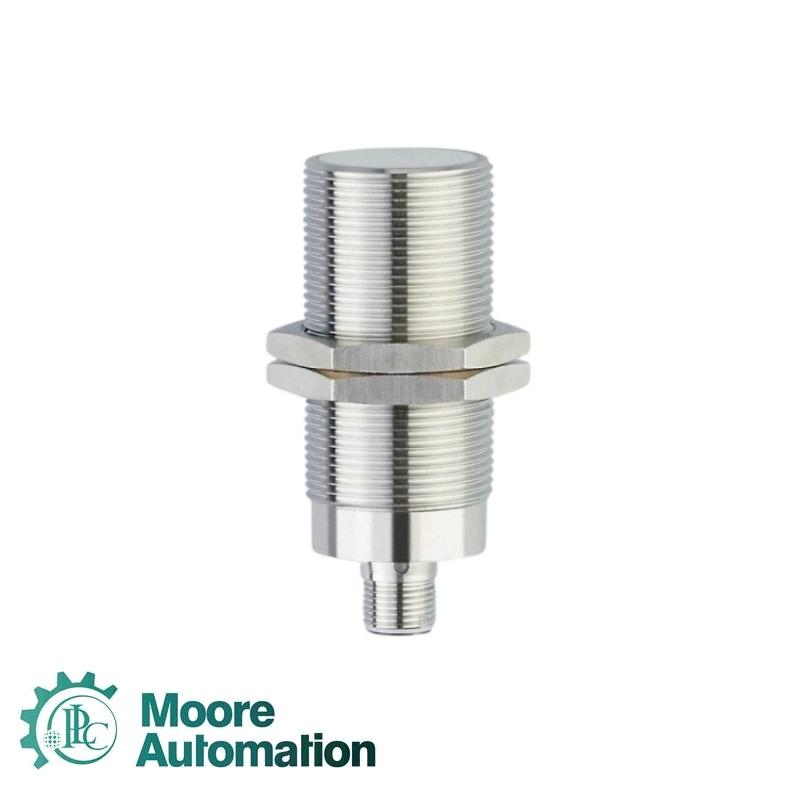

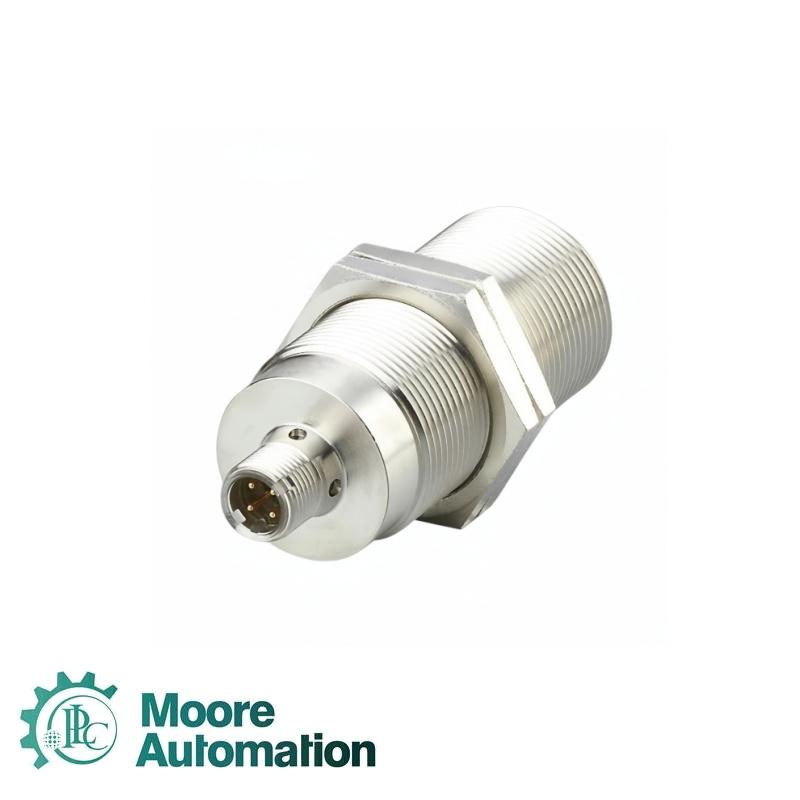

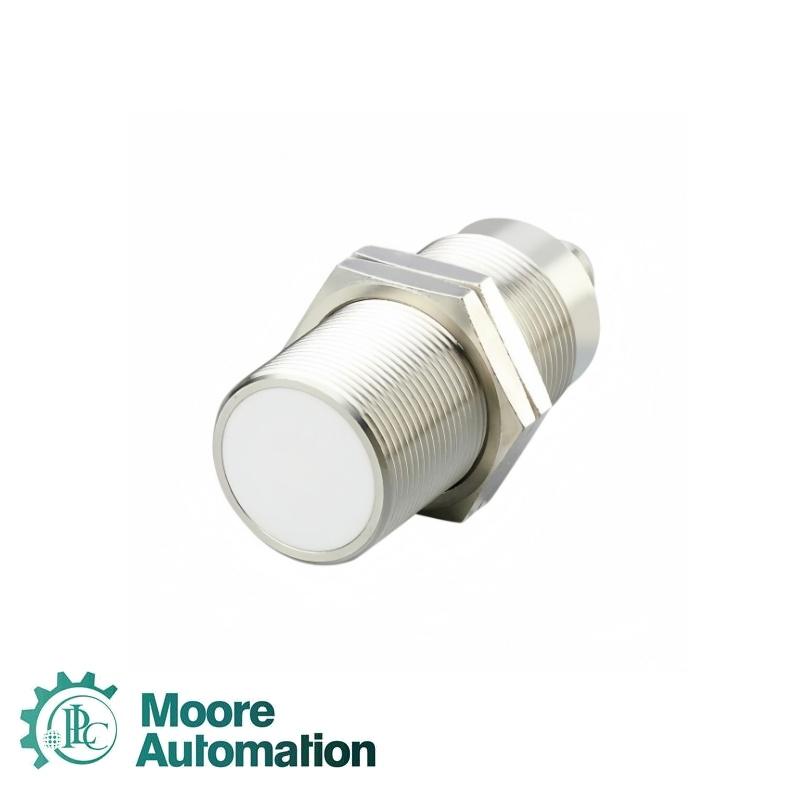

ifm II5910 Inductive Sensor

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

Order(MOQ):
1
Payment:
T/T
Product Origin:
Germany
Color:
Brand New
Shipping Port:
Xiamen
Lead Time：
3-5 Days
Warranty:
1 Year

Product Detail

Specifications

ifm II5910 Inductive Sensor is a flush-mountable M30 inductive sensor for industrial and factory automation. It provides a PNP normally-open switching output, a 15 mm sensing range, gold-plated contacts and IP67 protection.

Product type

Inductive sensor

Type designation

IIA3015BBPKG/US-104

Output function

PNP normally open

Sensing range

15 mm

Operating range

0 to 12.15 mm

Supply voltage

10 to 32 V DC

Current consumption

10 mA

Voltage drop

Maximum 2.5 V

Output current

200 mA

Switching frequency

100 Hz

Mounting

Flush mountable

Dimensions

M30 × 1.5; length 75 mm

Ambient temperature

-40 to +70 °C

Protection

IP67

Weight

130 g

Status display

4 yellow LEDs

Application Industry

Metal object detection

Detects metal targets without physical contact in automated machinery.

Machine position sensing

Provides a switching signal for end-position and presence checks.

Conveyor monitoring

Supports object-presence detection on material-handling equipment.

Factory automation

Fits flush into metal mounting environments with M30 threaded installation.

FAQ

› What supply voltage is required for ifm II5910?

— Use a 10 to 32 V DC supply and observe the specified polarity and protection requirements.

› How should ifm II5910 be mounted for its rated sensing range?

— Install the threaded housing flush with the surrounding metal and keep the target geometry within the official sensing conditions.

› What output circuit is used by ifm II5910?

— The sensor provides a PNP normally-open switching output rated for up to 200 mA.

› Can ifm II5910 be installed in a washdown-prone factory area?

— The housing is rated IP67, but cable sealing, connector selection and installation conditions must preserve the enclosure rating.

› What should be checked when commissioning ifm II5910?

— Verify supply voltage, target distance, switching indication, load current and the required clearance around the sensing face.
