 Infineon TD330N16KOF 50 mm Thyristor/Diode Power Module
TD330N16KOF TD330N16KOF TD330N16KOF

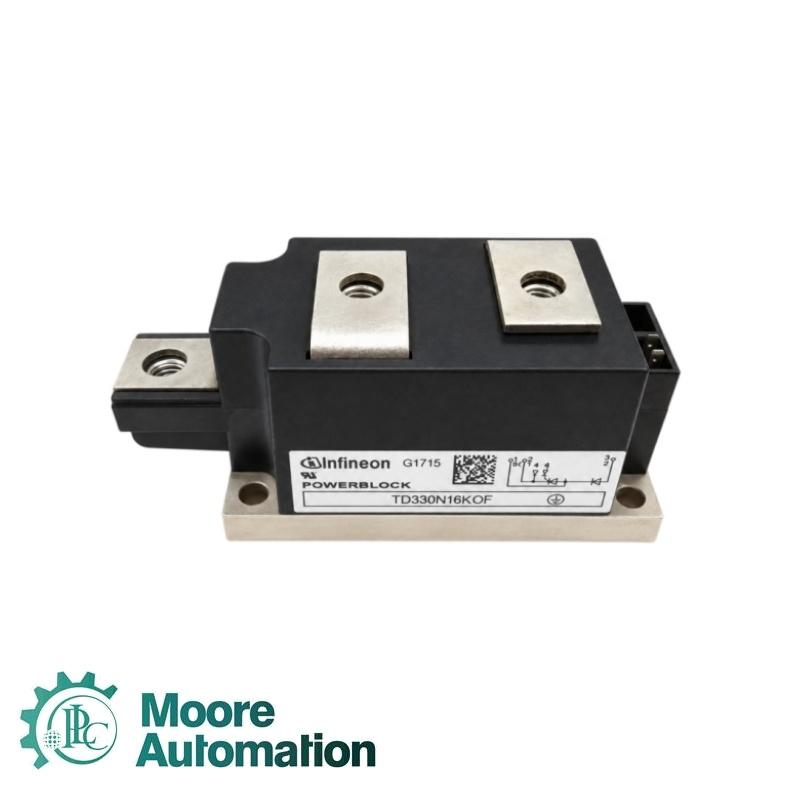

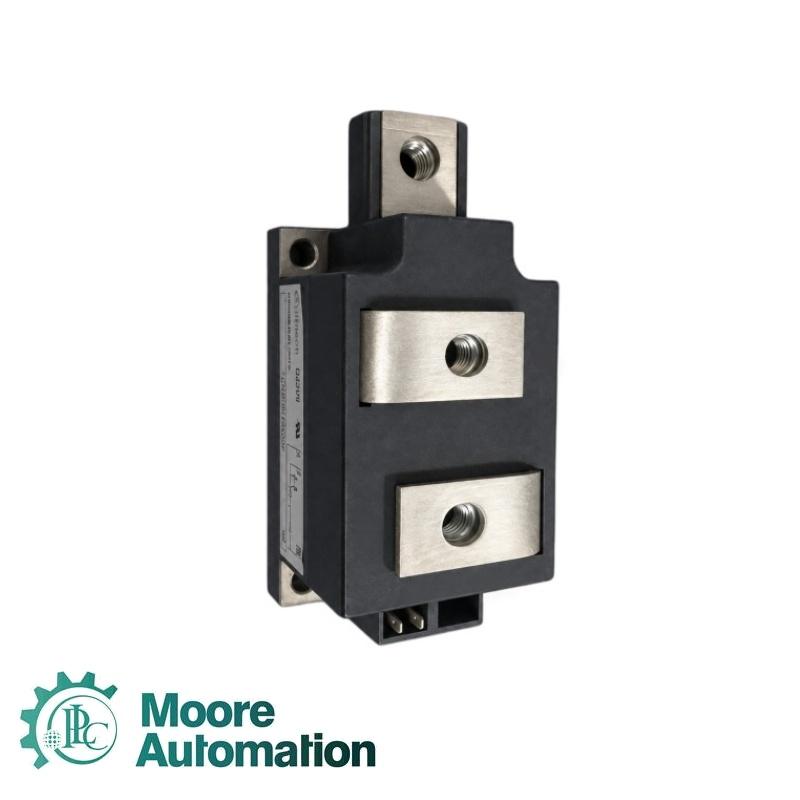

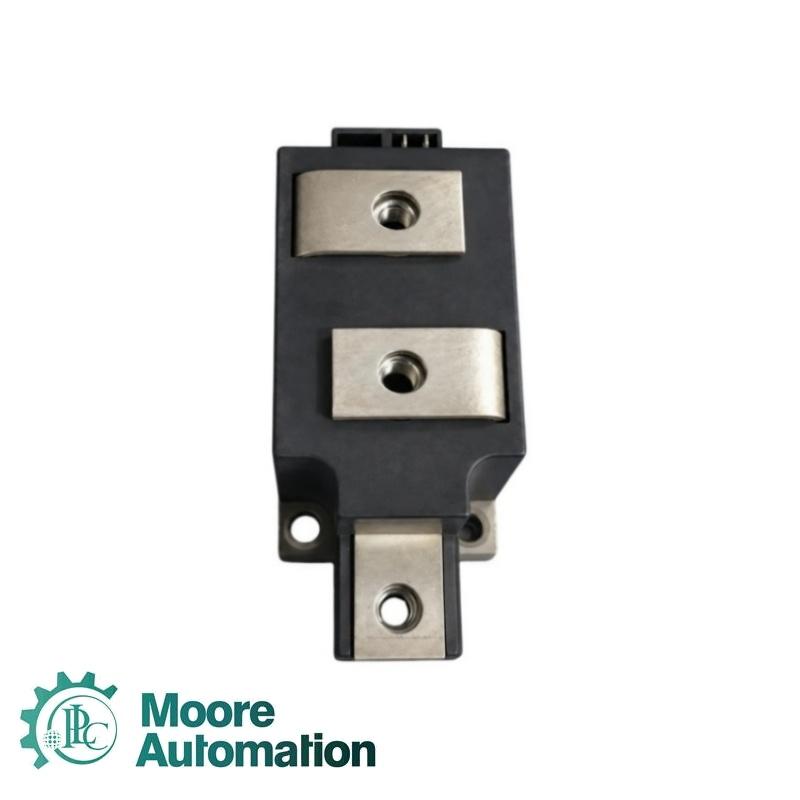

Infineon TD330N16KOF 50 mm Thyristor/Diode Power Module

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

  • Order(MOQ):

    1

  • Payment:

    T/T

  • Product Origin:

    Germany

  • Color:

    Brand New

  • Shipping Port:

    Xiamen

  • Lead Time：

    3-5 Days

  • Warranty:

    1 Year
Contact Us

  • Product Detail

Specifications

The Infineon TD330N16KOF is a 50 mm Power Block thyristor/diode module for phase-control circuits. The official product record specifies 1600 V repetitive blocking and reverse voltage, 330 A average current at an 85 °C case temperature, pressure-contact construction and an electrically insulated baseplate.

Product type
Thyristor/diode power module
Configuration
SCR / diode phase control
Product line
Power Block
Housing
50 mm
Repetitive voltage VDRM / VRRM
1600 V
Average current / case temperature
330 A / 85 °C at 180° electrical sine
Surge current IFSM / ITSM
10000 A at 10 ms, maximum junction temperature
Critical current-rise rate
250 A/µs
On-state slope resistance rT
0.5 mΩ at maximum junction temperature
Thermal resistance RthJC
0.112 K/W at 180° electrical sine
Maximum junction temperature
130 °C
Threshold voltage VT0
0.8 V at maximum junction temperature
I²t value
500 × 10³ A²s at 10 ms
Infineon package
BG-PB50AT-1
Orderable part number
TD330N16KOFHPSA2
Packing type / quantity
Tray / 3

Application Industry

01
HVAC control modulesPhase-controlled power switching for officially listed heating, ventilation and air-conditioning control applications.
02
General-purpose motor drivesSCR/diode phase-control conversion in industrial motor-drive systems.
03
Soft-starter power stagesControlled semiconductor power paths for soft-start functions in supported motor-control equipment.
04
Industrial power controllersPhase-control switching for regulated industrial power equipment.

FAQ

Which phase-control configuration is specified for TD330N16KOF?
The module uses an SCR/diode phase-control configuration. Confirm the circuit topology and firing design against the official datasheet before installation.
What voltage rating should be checked when selecting TD330N16KOF?
The repetitive blocking and reverse voltage rating is 1600 V. The complete system design must also account for transients and required protection margins.
What cooling data is important when installing TD330N16KOF?
Use the specified junction-to-case thermal resistance of 0.112 K/W and the 130 °C maximum junction temperature when sizing the heatsink and validating thermal performance.
What short-duration surge rating applies to TD330N16KOF?
The specified surge-current rating is 10000 A for a 10 ms event at the maximum junction temperature. Check the applicable waveform and protection coordination in the official datasheet.
What mounting features should engineers verify for TD330N16KOF?
The module uses pressure-contact technology in a 50 mm industrial housing with an electrically insulated baseplate. Verify mechanical mounting, heatsink flatness and electrical clearances against the official instructions.
