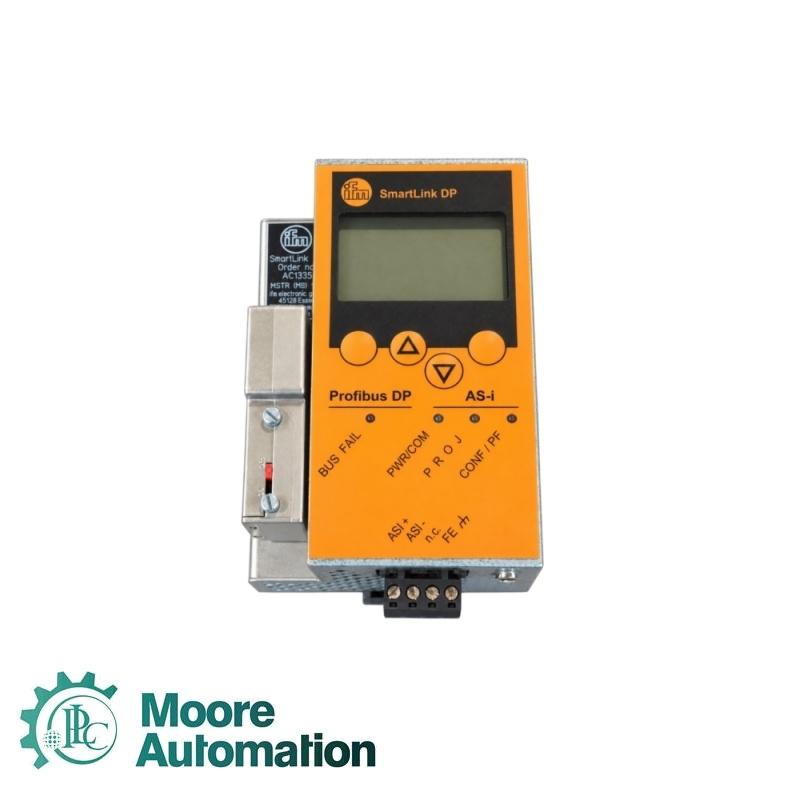

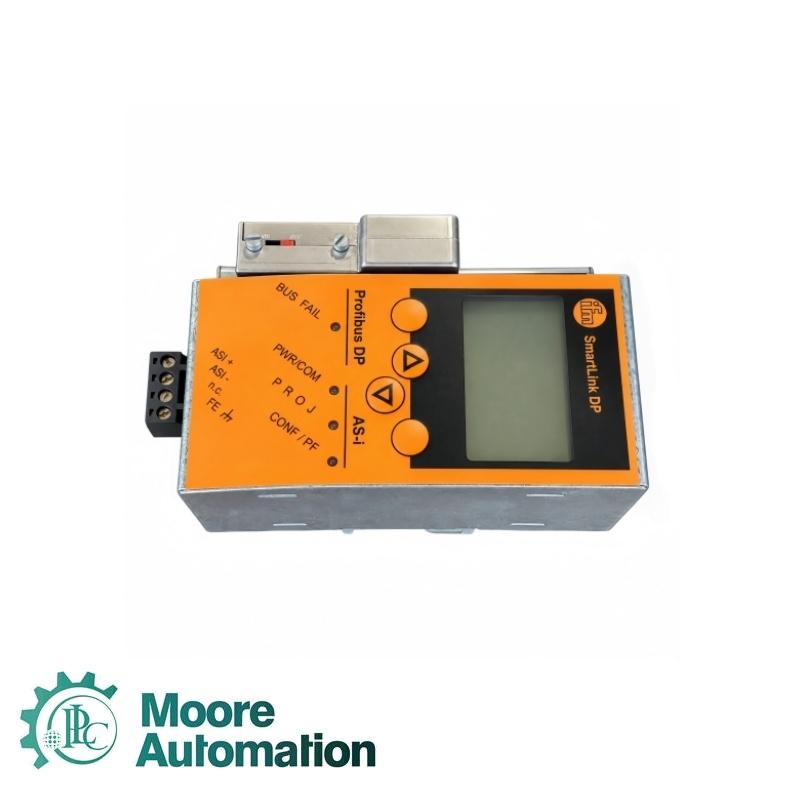

 ifm AC1335 SmartLink DP AS-Interface PROFIBUS DP Gateway
AC1335 AC1335 AC1335

ifm AC1335 SmartLink DP AS-Interface PROFIBUS DP Gateway

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

  • Order(MOQ):

    1

  • Payment:

    T/T

  • Product Origin:

    Germany

  • Color:

    Brand New

  • Shipping Port:

    Xiamen

  • Lead Time：

    3-5 Days

  • Warranty:

    1 Year
Contact Us

  • Product Detail

Specifications
The ifm AC1335 is a SmartLink DP gateway that connects one AS-Interface master to PROFIBUS DP. Official ifm documentation specifies AS-i power, a graphical 128 × 64 LCD, four operating keys, four LEDs, DIN-rail mounting and integrated diagnostics for commissioning and service.
Product typeAS-Interface PROFIBUS DP gateway
Product nameSmartLink DP
Order numberAC1335
AS-i masters1
Fieldbus interfacePROFIBUS DP
Data rateUp to 12 Mbaud
Interface standardEN 50170
Operating voltage26.5 to 31.6 V DC (AS-i)
Total current consumptionLess than 200 mA from AS-i
Power consumptionLess than 4 VA
Insulation rating500 V
Electrical separationYes
PROFIBUS diagnosticsSupported
DisplayGraphical LCD, 128 × 64
Operating elements4 keys and 4 LEDs
Ambient temperature0 to 60 °C
Storage temperature-20 to 70 °C
Maximum relative humidityLess than 95%
Degree of protectionIP20
AS-i version / profile2.1 / M3
AS-i certificate63501
Housing materialsAluminium and galvanised sheet steel
MountingDIN rail
ConnectionCombicon screw terminals
Parallel gatewaysUp to 31
PROFIBUS pin 3Signal B
PROFIBUS pin 8Signal A
GSD fileifm_07E5.gsd
Application Industry
01
AS-i to PROFIBUS integrationLinks an AS-Interface field network to a PROFIBUS DP control system.
02
Control-cabinet gateway mountingInstalls on a DIN rail with IP20 protection for protected industrial enclosures.
03
Commissioning and addressingUses the graphical display and operating keys to inspect network data and address AS-i devices.
04
Network diagnosticsSupports PROFIBUS diagnostics, LED indication and telegram-error monitoring for service work.
FAQ
How many AS-i masters are integrated in ifm AC1335?
The gateway contains one AS-Interface master for connecting a single AS-i network segment.
What supply range is required for ifm AC1335?
Use 26.5 to 31.6 V DC from the AS-i supply and verify the network power budget before commissioning.
Which fieldbus does ifm AC1335 connect to?
It communicates through PROFIBUS DP at data rates up to 12 Mbaud in accordance with EN 50170.
Where should ifm AC1335 be installed?
Mount the IP20 metal housing on a DIN rail inside a protected control cabinet within the stated temperature limits.
How can engineers diagnose ifm AC1335 during commissioning?
Use the graphical LCD, four operating keys, four LEDs and available PROFIBUS diagnostic functions to inspect network status.
