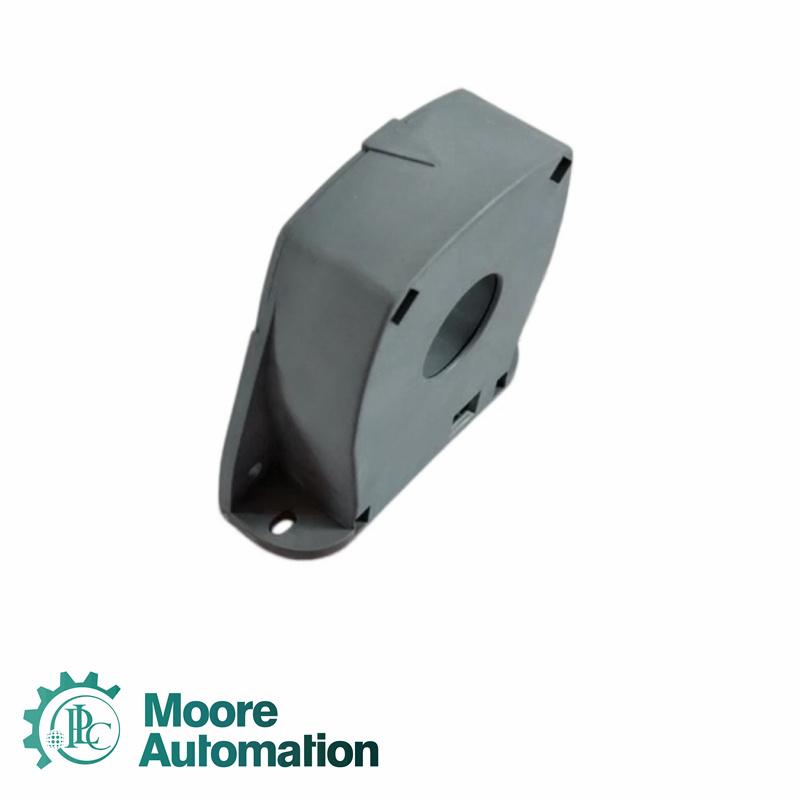

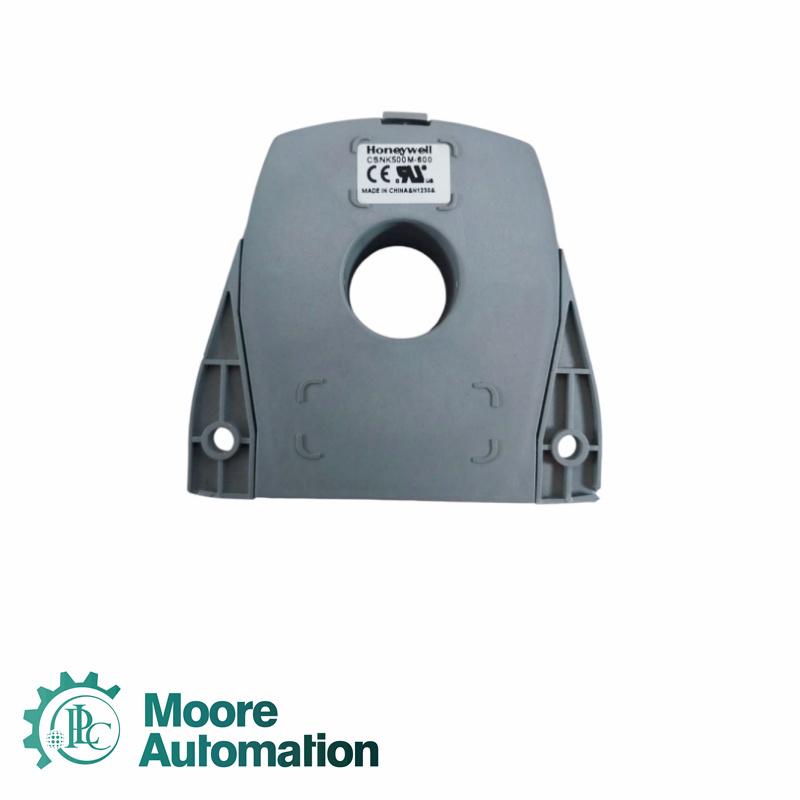

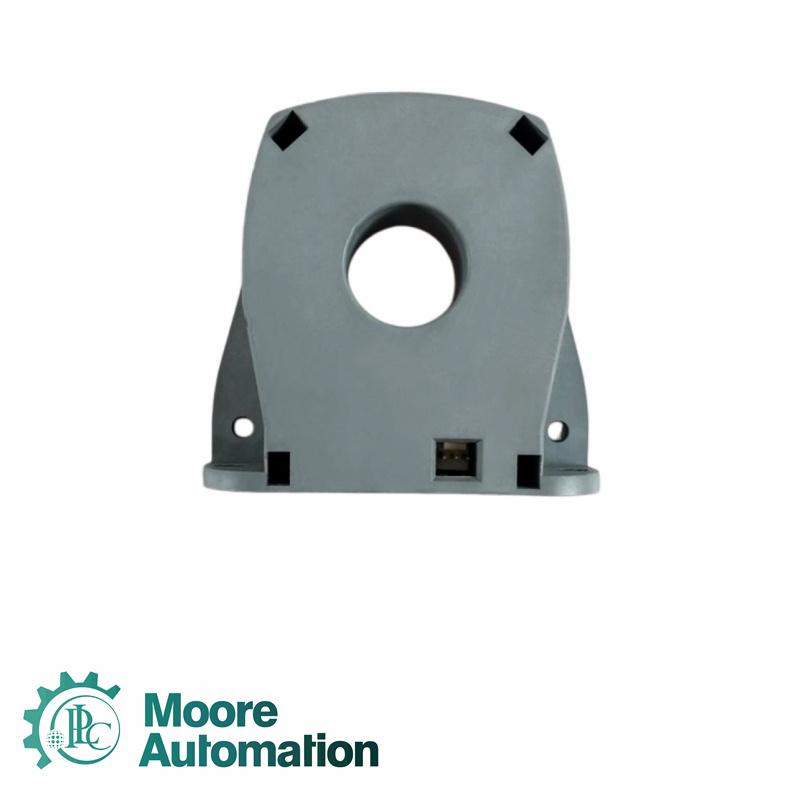

Honeywell CSNK500M-600 Current Sensor

Product Summary

The CSNK500M-600 is a current senor based on the principle of magnetic compensation. It provides electronic measurement of DC, AC or pulsed currents, and their combinations, with galvanic isolation between the primary (high current) and secondary circuits.

For more information, please contact John Yang. I can provide product photos and videos, as well as other information.

-----------------------------------------------------------------------------------------------------------------------------------------------

Email: sales3@askplc.com & Mobile(WhatsApp):  86-18150117685

Frequently Asked Questions

Q: What is the analog secondary output of the CSNK500M-600 when measuring 500A rated current?
A: With a 1/5000 ratio, it outputs a standard 100 mA secondary current.

Q: Can the CSNK500M-600 handle inrush currents above 1000A?
A: Yes, it supports up to ±1200A continuous and higher peak tolerance.

Q: How should the load resistor be configured for the CSNK500M-600 at ±15V and 1000A measurement?
A: The recommended Rm range is 0–10 Ω.

Q: What is the benefit of 6 kV isolation in the CSNK500M-600?
A: It isolates high voltage from control circuits, ensuring operator and system safety.

Q: Is the response time of the CSNK500M-600 suitable for fast protection systems?
A: Yes, it is under 1 µs with up to 100 kHz bandwidth for rapid fault detection.

Moore Specializing In:

Drives

Speedtronic

Excitation

Panel Controllers

HMI and Display Panels

Control Systems (DCS, PLC, CNC)

Online monitoring and protection system

Application

Photovoltaic inverter manufacturing plant: Provides precise current monitoring for MPPT efficiency optimization.

Rail transit equipment plant: Monitors auxiliary power current in traction systems with high-voltage isolation for safety.

Industrial automation plant: Enables fast overcurrent protection in high-power inverter-driven motor systems.

Electroplating processing plant: Delivers accurate feedback data for high-current electrolysis control systems.

Energy storage system assembly plant: Performs wide-band current measurement for battery management and charge-discharge control.
