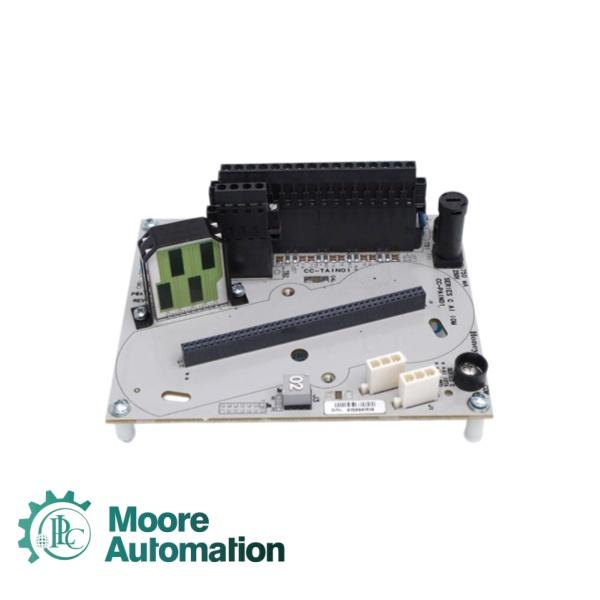

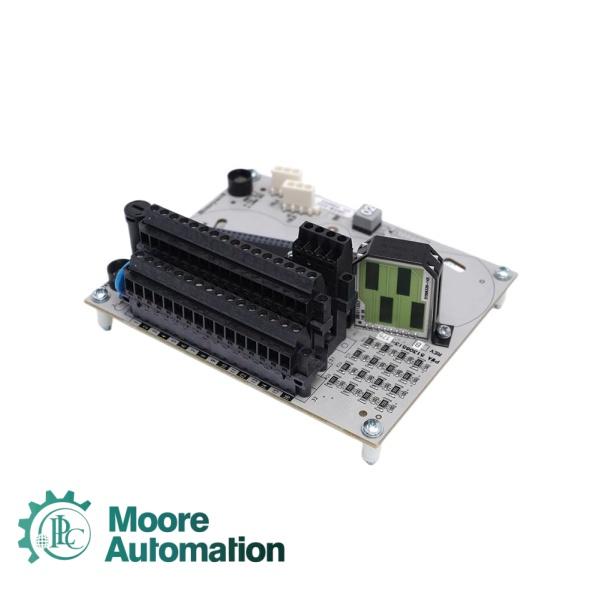

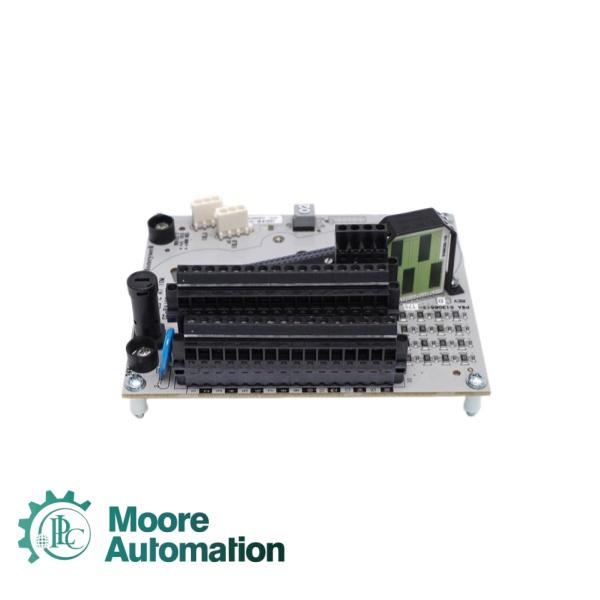

HONEYWELL CC-TSV211 51306665-175 Servo Valve Positioner Module

hot selling

1 year warranty

Best choice and best discounts

Email me:sales6@askplc.com

Brand:
Other
Order(MOQ):
1
Payment:
T/T
Product Origin:
USA
Color:
Brand New
Shipping Port:
Xiamen
Product Origin:
USA
Lead Time:
3-5 days

Product Detail

Get in Touch

◼Sales Mnager：Yuki

◼Email: sales6@askplc.com

◼Whats App: +86 17359287459

Introduce

The CC-TSV211 51306665-175 is a specialized Servo Valve Positioner Module designed for the Honeywell Experion PKS (Process Knowledge System) and C300 Controller platforms . Its primary function is to provide high-precision, closed-loop positioning of servo valves, which are commonly used in turbomachinery control applications (e.g., steam turbines, gas compressors) . It acts as the critical bridge between digital control systems and hydraulic or pneumatic valve actuators, executing the on-board PID (Proportional-Integral-Derivative) positioning loop to ensure accurate and stable valve control in demanding industrial processes .

Data Information

Output Type:	Bipolar current (Ranges: 10, 20, 40, 80, 160, 320 mA) Unipolar current (Ranges: 50, 300 mA)
Output Channels:	2
Output Temperature Drift:	300 ppm per deg C
Output Current Linearity:	0.325%
Resolution:	16-bit DAC
Maximum Open Circuit Voltage:	±14 V
Gap (0 mA) of Output to Field on Switchover:	15 mS maximum
Frequency Stability:	2.5-3.2 KHz ±5 Hz from set value
Galvanic Isolation (any input terminal voltage referenced to common):	±500 VDC
A/D Converter Resolution:	16-bits
Input Channels:	2
Common Mode Voltage, DC to 60 Hz:	-6 to +5 V peak
A/D Converter Resolution:	16-bits
Input Range (1):	0 to 5 V, 1 to 5 V, 0.4 to 2 V, 4-20 mA (through 250 Ω)
Input Impedance (voltage inputs):	> 10 M Ω powered
Maximum Input Voltage (any input referenced to common, no damage):	±30 V
Input Scan Rate:	5 ms
Hardware Accuracy (@ CMV = 0 V):	± 0.075% of full scale (23.5°± 2°C) ± 0.15% of full scale (0 to 60°C)

FAQ

Q: Does Honeywell support "Hot Swapping" of I/O modules like the DC-TUIO031?

A: Yes. The Series-C I/O architecture is designed for true hot swap (hot insertion) . If a module fails, you can remove it and install a replacement while the controller and field power remain live. However, you must ensure the replacement module has the same firmware revision as the rest of the rack to prevent automatic synchronization errors during the rebuild process.

Q: How does Honeywell ensure reliability in harsh industrial environments?

A: Honeywell offers conformal coating (G3 protection) on select Series-C modules (often indicated by specific part suffixes like -175). This coating protects circuit boards from corrosive gases (sulfur, chlorine, humidity) found in pulp & paper mills, wastewater treatment, and chemical plants . Without this coating, modules can suffer from trace corrosion within 12-18 months in such environments .

Q: What is the "Honeywell Forge" platform?

A: Honeywell Forge is the company's industrial IoT and enterprise analytics platform. It collects and contextualizes data from industrial systems to deliver actionable insights for asset performance, cybersecurity, and operational efficiency. The platform is central to Honeywell's "physical AI" strategy, helping customers unlock value from industrial data that is not publicly available .
