Specification Highlights |
|
|
RAM |
128 or 256 MByte |
|
Non-Redundant Transfer Rate |
43 MByte/s (single longword accesses) to 170 MByte/s (64 byte bursts) |
|
Redundant Transfer Rate |
20 MByte/s (single longword accesses) to 87 MByte/s (64 byte bursts) |
|
PCI Transfer Rate |
132 MByte/s (33MHz/32-bit bus), 264 MByte/s (33MHz/64-bit bus or 66MHz/32-bit bus), or 528 MByte/s (66MHz/64-bit bus); throttles back to available link data rate as FIFOs begin to fill |
|
PCI Express Transfer Rate |
4 lanes at 2.5 Gbit/s |
|
Operating Temperature |
0°C to +65°C, with forced air cooling |
|
Storage Temperature |
-40°C to +85°C |
|
Relative Humidity |
20% to 80%, non-condensing |
|
Power Requirement – +12 VDC |
0.7 A maximum (±5%) |
|
Power Requirement – +3.3 VDC |
0.6 A maximum |
|
Dimensions |
6.6 in long × 2.713 in tall |
|
Weight |
0.2 lbs |
|
Cooling Requirement |
300 LFM |
|
MTBF (Bellcore) |
607,680 hours |
|
Cable Length – Simplex Cable |
Up to 820 ft (250 m) |
|
Cable Length – Duplex Cable |
Up to 721 ft (219.7608 m) |
|
Supported Operating Systems |
Microsoft® Windows® XP |
|
Supported Operating Systems |
Microsoft Windows 7 |
|
Supported Operating Systems |
Linux® |
|
Supported Operating Systems |
VxWorks® |
|
RoHS Compliance |
Designed to meet European Union (EU) Restriction of Hazardous Substances (RoHS) Directive 2002/95/EC current revision |
|
CE Compliance |
BS EN55024 |
|
CE Compliance |
BS EN55022, Class A |
|
CE Compliance |
IEC61000-4-2 |
|
CE Compliance |
IEC61000-4-3 |
|
European Union Compliance |
BS EN55024 (1998 w A1:01 & A2:03) |
Overview of the Product

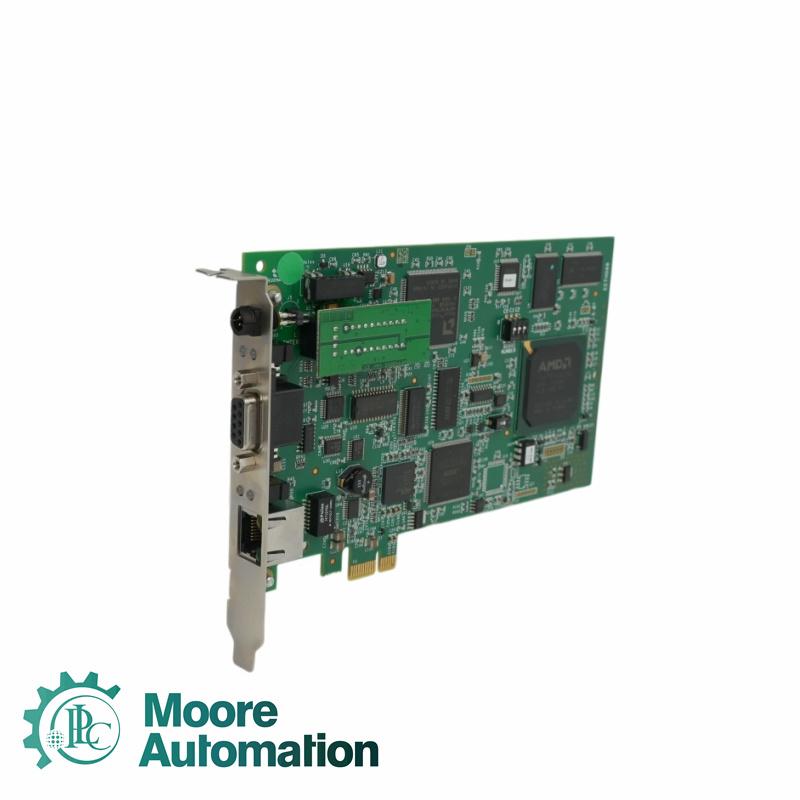

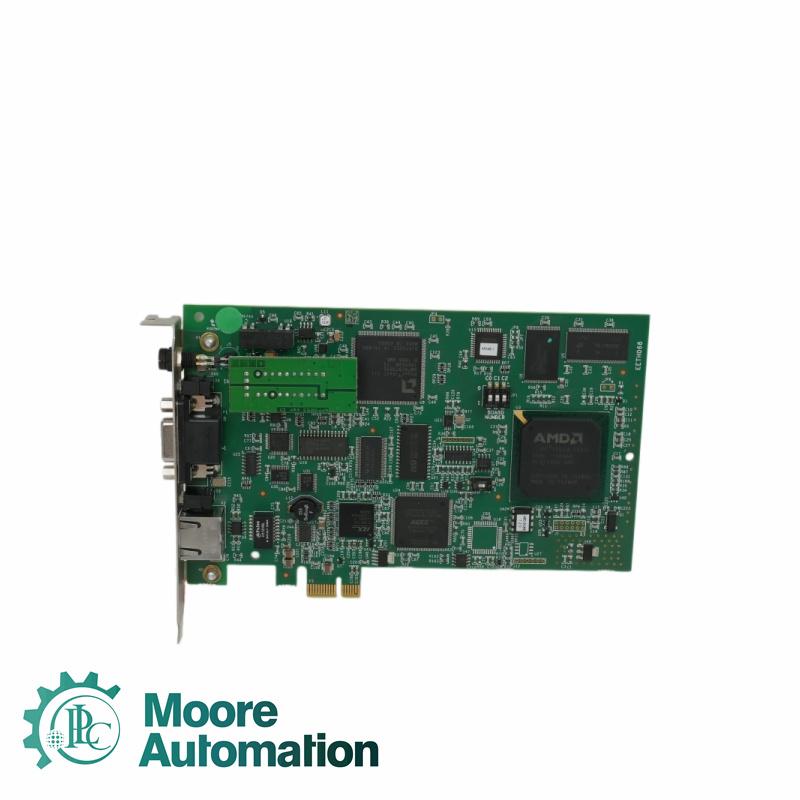

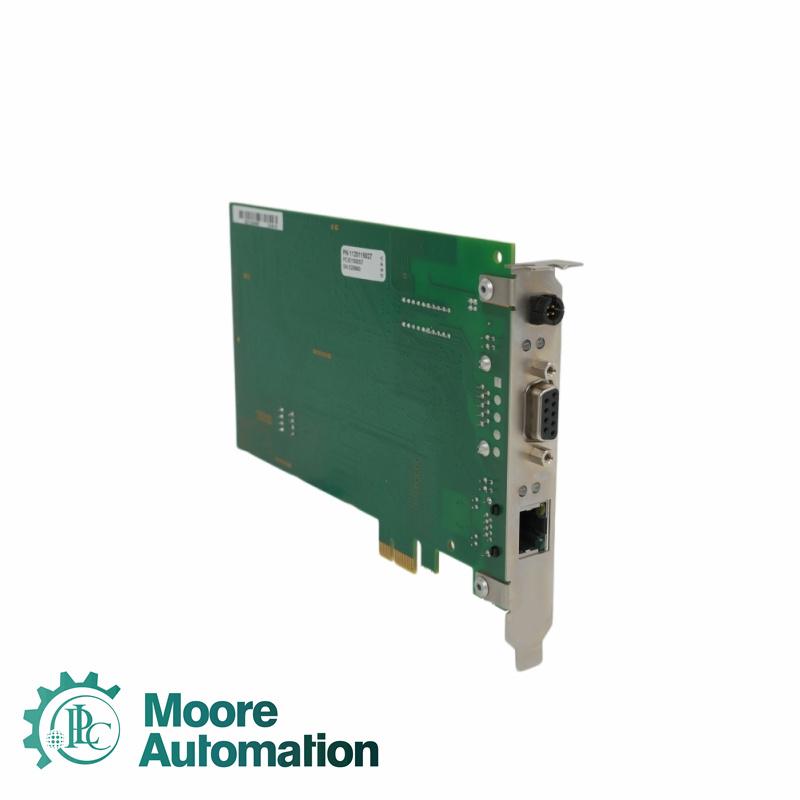

The GE PCIE-5565PIORC-100A00 Reflective Memory PCI Express Node Card in low profile PCI Express form factor is engineered to provide highly deterministic, tightly timed performance for a variety of advanced networking applications that need to deterministically move large amounts of data fast and share that data in real time among similar or disparate network nodes.
|
◆Best Price,Good price within limited time |
John Yang Email: sales3@askplc.com Mobile(WhatsApp): 86-18150117685 |
|
◆Fast Delivery&One Year Warranty |
|
|
◆24/7Service & Free Online Quotes |
Applicaiton
Hot/Cold Rolling Mills: Used for hydraulic servo control and AGC systems, enabling microsecond synchronization of thickness and tension data.
Semiconductor Manufacturing and Testing: Used in lithography, robotic arms, and wafer handling systems for deterministic multi-axis motion synchronization.
Automotive Assembly and Powertrain Testing: Used for real-time synchronization of torque, speed, and exhaust data in dynamometer systems.
Nuclear and Thermal Power Plant Simulators: Used for control panels, DCS simulation, and distributed models to achieve real-time process simulation.
Wind Farms and Blade Testing: Used for SCADA systems, hydraulic actuator control, and synchronized vibration data acquisition.
Frequently Asked Questions
Q: What core hardware parameters are specified by "100" and "A" in the model PCIE-5565PIORC-100A00?
A: The "100" code is specified as 128 MB onboard SDRAM reflective memory; "A" is specified as a multimode fiber transceiver interface.
Q: When using the PCIE-5565PIORC-100A00 in a network, what are the serial fiber baud rates between nodes and the maximum number of connected nodes?
A: 2.12 Gbaud high-speed serial fiber connections are provided, supporting up to 256 independent nodes in one hard real-time reflective memory network.
Q: Why does the PCIE-5565PIORC-100A00 achieve extremely excellent deterministic latency in multi-physics real-time simulations?
A: Data transmission is fully transparent to software; local memory writes are automatically broadcast through fiber, with no CPU or protocol overhead, achieving only 450 to 500 nanoseconds node latency.
Q: What is the maximum data transmission distance supported by the fiber optic network for this PCIE-5565PIORC-100A00 model?
A: Due to its multimode fiber optic (LC interface) configuration, the maximum continuous reliable transmission distance between two points using standard multimode fiber optic cables is 300 meters.
Q: What is the maximum continuous data write/read rate of the PCIE-5565PIORC-100A00 at extremely high data throughput?
A: Its transmission rate depends on the packet size. When using dynamic data packets (4 to 64 bytes), the continuous data transmission rate is between 43 MB/s and 170 MB/s.
|
