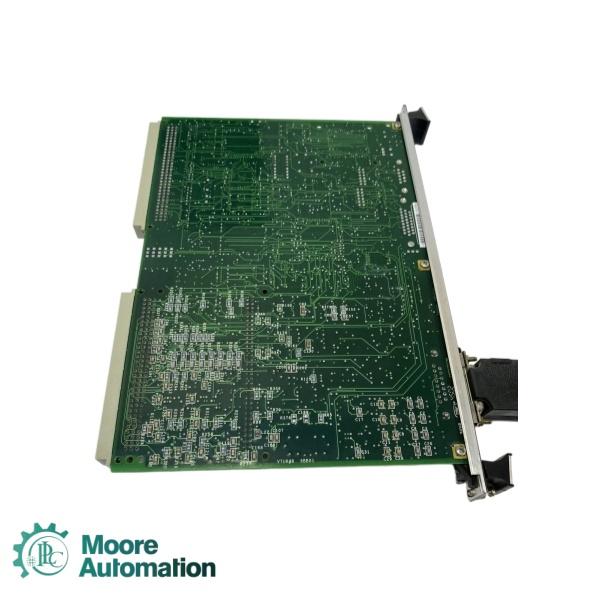

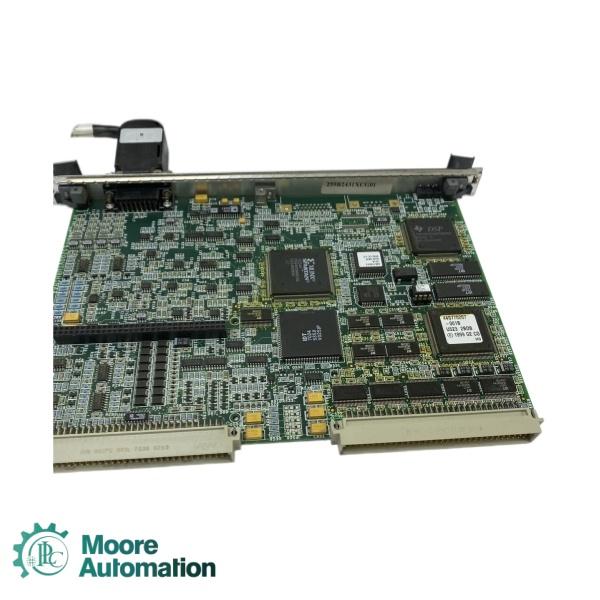

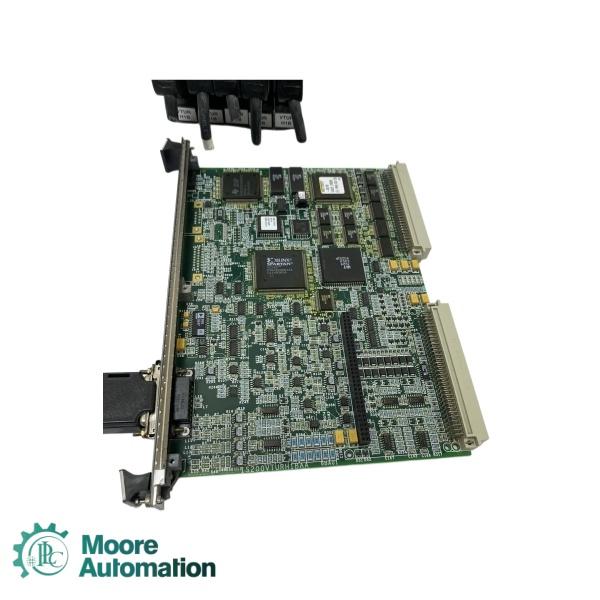

GE IS200VTURH1BAA Primary Turbine Protection board

Contact Yuki

Email: sales6@askplc.com

WhatsApp: +8617359287459

Product Details

The GE IS200VTURH1BAA is an advanced, industrial-grade primary turbine protection and safety trip board engineered to govern critical operational margins within steam and gas industrial turbines. It handles multi-layered protection tasks, including high-speed overspeed trip loop actuation, shaft voltage monitoring, automatic generator synchronization, and flame detection. Equipped with a rugged conformal-coated layout and front-facing diagnostic status LEDs, the board is structurally built to function reliably under continuous thermal stress and electromagnetic interference on power plant floors.

(1) Power Supply & Logic Rails: 5V DC and 24V DC logic rails.

(2) Speed Sensing Input Range: Operates over a Magnetic Pickup pulse frequency window of 2 Hz to 20 kHz.

(3) MPU Circuit Input Sensitivity: Capable of detecting minimal movement down to 2 rpm at a peak sensitivity of 27 mV.

(4) Operating Temperature Limits: 0 °C to +60 °C (32 °F to 140 °F) ambient cabinet deployment window.

(5) Storage Temperature Envelope: -40 °C to +85 °C (-40 °F to 185 °F).

(6) Relative Humidity Compatibility: 5% to 95% non-condensing industrial standard margin.

Application

❖ Industrial Gas Turbine Safety: Extensively deployed in gas-powered utilities to continuously check for overspeed hazards, cross-reference thermal flame signatures across 8 Geiger-Mueller tubes, and trigger emergency fuel solenoid valves.

❖ Heavy Steam Turbine Regulation: Implemented within large thermal or nuclear power generation facilities to measure shaft rotational trends down to 2 rpm, allowing for smooth startup, speed balancing, and overspeed mitigation.

❖ Automated Generator Synchronization: Used as an intermediate electrical node to evaluate incoming grid phases against the turbine shaft’s position, driving automatic main breaker synchronization commands safely.

❖ TMR Safety Isolation Architectures: Integrated into high-availability Triple Modular Redundant (TMR) industrial control networks where three VTUR boards vote concurrently to isolate field faults, eliminate accidental tripping, and maintain safe baseline power output.

Faq

Q1: What is GE's legacy in the industrial automation industry?

A1: GE (General Electric), founded by Thomas Edison in 1889, was a global leader in PLC systems, including the famous Series 90-70, PACSystems RX3i/RXi, and VersaMax I/O platforms. While GE's industrial automation division was acquired by Emerson in 2019, these products remain widely used in factories worldwide .

Q2: Does GE support hot-swapping of I/O modules?

A2: Yes, most GE PACSystems and VersaMax I/O modules support hot insertion (hot-swapping) when used with compatible Network Interface Units. This allows module replacement without powering down the entire system. However, always verify your specific NIU configuration before performing hot-swap .

Q3: What is the most common failure mode in GE PLC modules?

A3: Power supply aging (capacitor failure) and communication faults (Ethernet/Profibus dropouts).

Q4: What is GE's proprietary communication protocol for PLCs?

A4: GE developed SRTP (Service Request Transport Protocol) for Ethernet communication with PLCs, succeeding the serial SNP/SNPX protocols. It uses default port 18245 .
