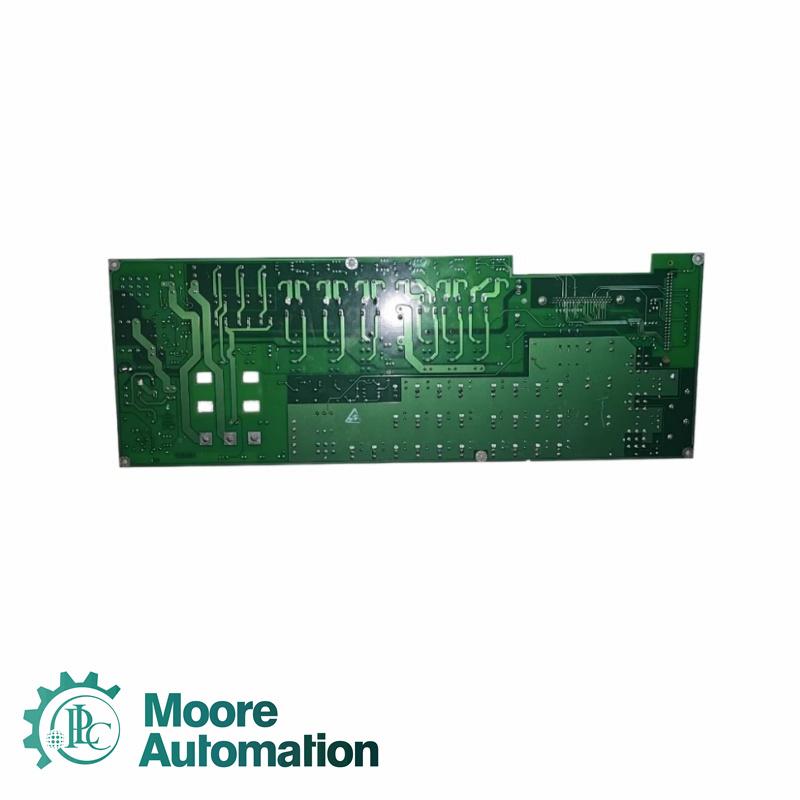

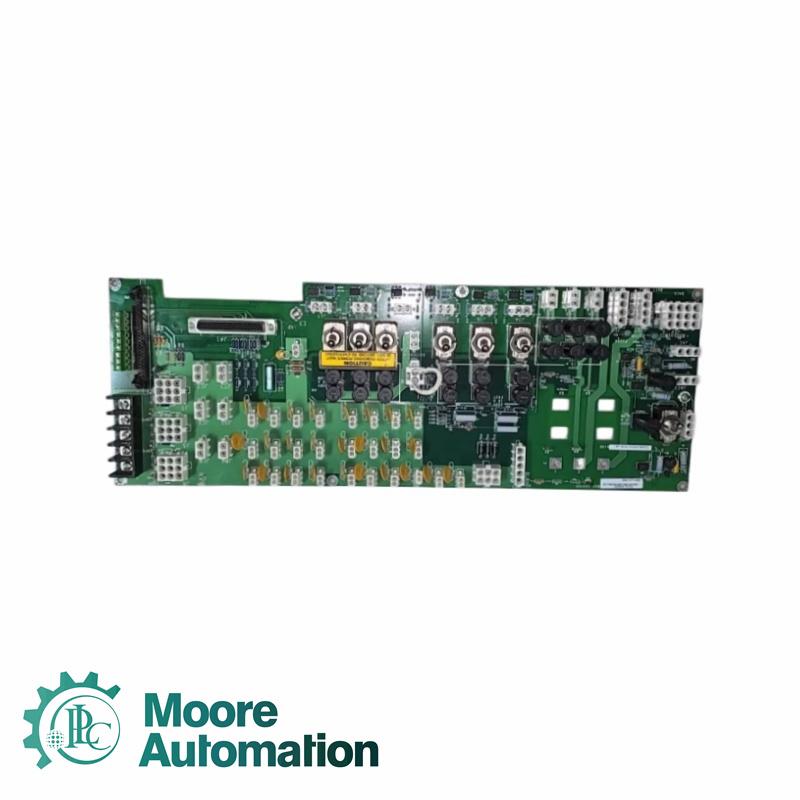

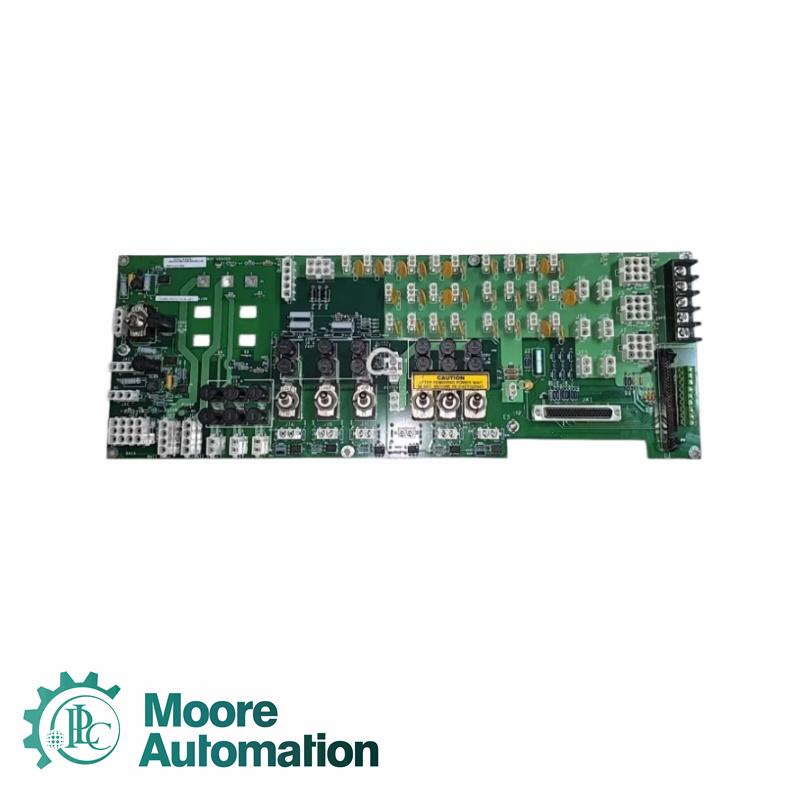

GE IS2020JPDCG1ACB Power Distribution Board

Get detailed product info

Sale Manager: John Yang
Email: sales3@askplc.com
Mobile(WhatsApp):  86-18150117685

Product Introduction

isIS200JPDSG1ACB is a Power Distribution Board developed by GE.It is a part of the Mark Vle control system.The board is affixed to a sturdy sheet metal framework, providing a stable mounting platform. It is specifically designed to accommodate a PPDA I/O pack, which is secured on the board. Within the board, three distinct 28 V DC power buses are incorporated, each with its own dedicated bulk power supply input. For situations requiring a single bus with multiple power supplies, barrier screw terminals are provided to connect the power buses accordingly. While most output circuits do not feature fuses, exceptions are made for three auxiliary circuits. Notably, the design of the JPDS board relies on the current limit of the connected power supplies to ensure protection for branch circuits. Communication between the JPDS and PPDA is facilitated through ribbon cable connections, enabling the exchange of crucial system feedback such as DC bus voltage, power supply status contact feedback, and auxiliary circuit status.

Technical Data

Temperature: -30 to +65°C (-22 to +149°F)
Agency Approval: Class 1 Division 2 explosive atmosphere
Mounting Options: Vertical DIN-rail holder or direct metal holder
Wiring Guidance: Refer to provided wiring diagrams
Diagnostic Connectors: 50-pin top and bottom connectors
Power Input: Three connectors JR, JS, JT for 28 V DC
Distribution to Components: Distributes power to boards and I/O packs
Power Input Connectors Details: JR, JS, JT with 2 positive and 3 negative connections; 3 health inputs per power source with 2 dry contacts each
IDC Outputs for Rack Control: JCR, JCS, JCT
Outputs to JPDP Cards: Six 3x2 Mate-N-Lok connectors J1 to J6
Auxiliary Power Outputs: JAR, JAS, JAT with PTC fuses and common-mode chokes
Internal 28 V Bus Access: Screw terminals TB1 and TB2; R, S, T up to 35 A; ground up to 75 A
Diagnostic Interface: DC-62 connector for PPDA power diagnostic I/O pack
IP28 Power Output: P4 output diode ORed for PPDA power diagnostic pack

Frequently Asked Questions (FAQ)

What isIS200JPDSG1ACB?
It is a power distribution board developed by GE under the Mark Vle series.

Where is the typical mounting location for the board?
The board is typically mounted in a metal holder that fits onto a vertical DIN-rail alongside other power distribution boards. Optionally, JPDS can also be acquired with a metal holder designed for direct mounting.

Are diagnostic connectors available on the board?
Yes, there are 50-pin diagnostic connectors mounted on both the top and bottom of the board, facilitating diagnostic procedures and connectivity.

How is the board grounded?
The board is grounded through the sheet metal bracket to the underlying back base. In most cases, this base can be the system FE.
