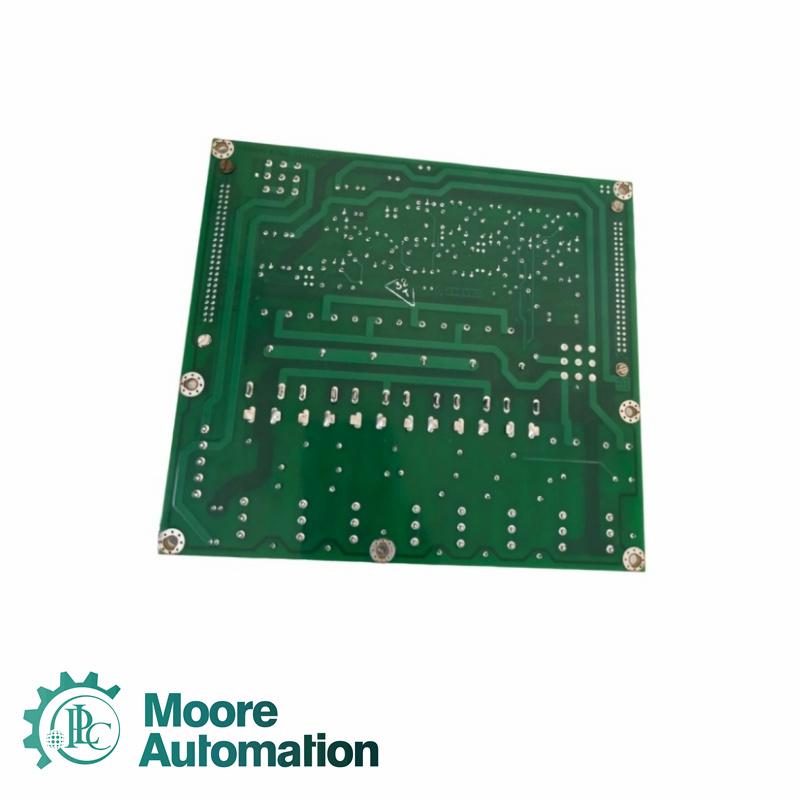

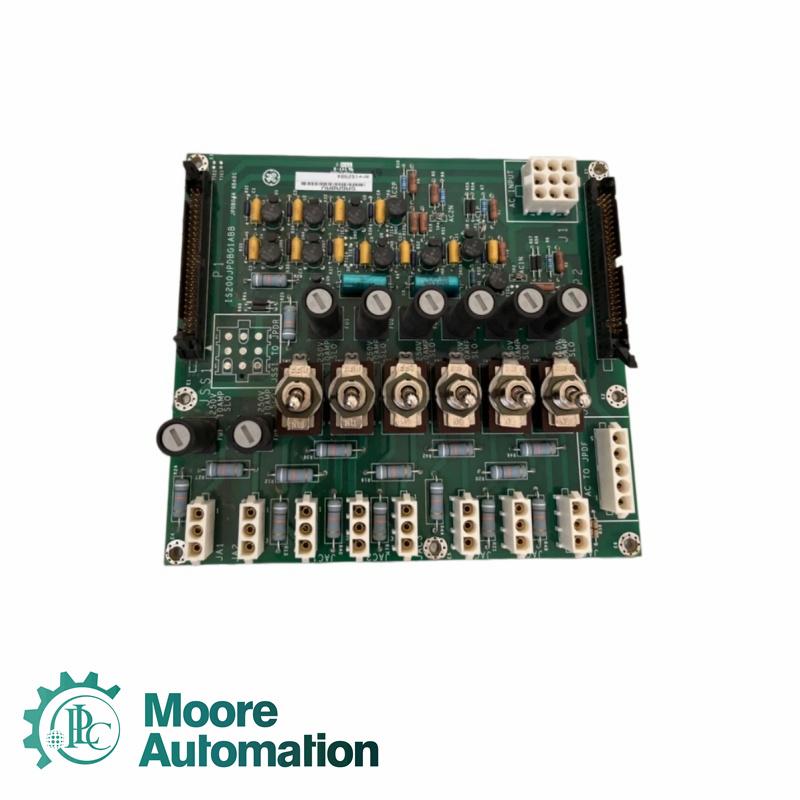

GE IS200BPIBG1A IS200BPIBG1AEB Phase Logic Interface Module

Get detailed product info

Sale Manager: John Yang
Email: sales3@askplc.com
Mobile(WhatsApp):  86-18150117685

Product Introduction

IS200BPIBG1A IS200BPIBG1AEB is a Phase Logic Interface Module manufactured and designed by General Electric as part of the EX2100 Series used in GE Excitation Control Systems. It is a Phase Logic Module/ IGBT Drive Personality Interface board.The module captures and reports faults in conjunction with an associated and connected Gate Driver board or boards. Some of these faults are handled on the BPIB board. The PCB is also used for signal conditioning to the Gate Driver and Shunt Feedback boards via its P1 connector (located on its rear edge).The board is intended to be plugged into a VME rack. This is accomplished through the P1 connector, located on the board's back edge. Six plug connectors connect the board to several IGBT boards. Five stab-on connectors are used to detect Phase A/B/C sensing signals as well as DC-link positive and negative signals. Internally, the PLIM utilizes opto-isolation and galvanic separation to ensure high noise immunity and signal integrity. It supports configurable logic levels (e.g., 24 VDC, 48 VDC, or 125 VDC) and can accommodate sinking or sourcing input/output configurations depending on control scheme requirements. Fault diagnostics, signal forcing, and handshake protocols are typically integrated via firmware or control software.

Technical Data

Function: Phase Logic Interface Module
Series: EX2100
Memory: Serial 1024-bit chip
Input channel:40
Operating Voltage: 24 VDC
Output Current: 0.5 A to 2 A
Dimensions: 11.00 x 9.00 x 3.00
Isolation Voltage: 2500 V
Mounting: DIN Rail
Response Time: < 10 ms
Voltage Feedback VCORange: 0-20MHz
Power: 17.7VAC or 5 VDC
Operating Temperature: -20°C to +70°C

Frequently Asked Questions (FAQ)

What is the primary function of a Phase Logic Interface Module (PLIM)?
The PLIM acts as an interface between the turbine control logic and external field devices. It facilitates the execution of phase-based logic commands such as start permissives, trip sequences, and interlocks, ensuring safe and deterministic turbine operation.

What voltage levels are supported by the PLiM?
Standard models support 24 VDC, 125 VDC, and 250 VDC for both input and output signaling, allowing flexible deployment across various control system designs.

What voltage levels are supported by the PLiM?
PLIMs support digital I/O levels of 24 VDC, 125 VDC, and 250 VDC, ensuring compatibility with a wide range of turbine control output modules.

Can the PLIM be used in gas, steam,or combined-cycle turbine systems?
Yes. PLIMs are designed for universal use across gas turbines, steam turbines, and combined-cycle applications, supporting diverse sequencing and protection tasks.
