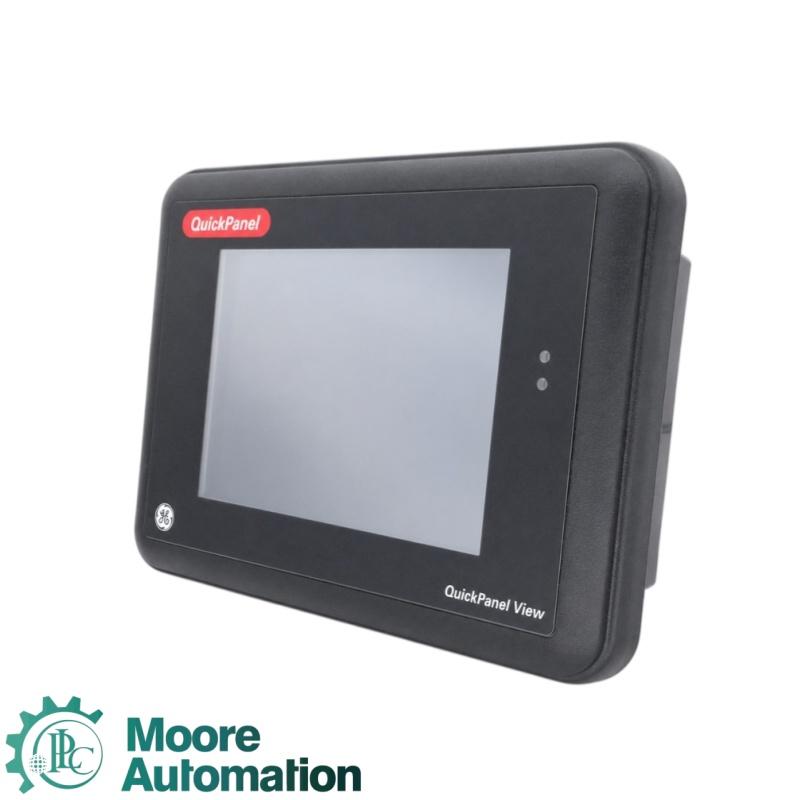

GE IC754VSI06STD-KH QuickPanel View 6-Inch Touchscreen HMI

hot selling

1 year warranty

Best choice and best discounts

Email me:sales6@askplc.com

Item NO.:
IC754VSI06STD-KH
Order(MOQ):
1
Payment:
T/T
Product Origin:
USA
Color:
Brand New
Shipping Port:
Xiamen
Warranty:
1 Year
Product Origin:
USA
Lead Time:
3-5 Days

Product Detail

Specifications

The GE IC754VSI06STD-KH is a 6-inch QuickPanel View industrial touchscreen HMI for factory-floor visualization and machine operation. This color model combines a 5.75-inch passive STN display, 320 × 240 resolution, resistive touch input, Ethernet and serial communication in a compact operator-interface platform. The complete IC754VSI06STD-KH suffix should be checked against the installed unit when sourcing a revision-matched replacement.

Product typeIndustrial touchscreen HMI

Product family6-inch QuickPanel View

Display5.75-inch passive STN color

Display resolution320 × 240 pixels

Display colors65,536

Touch technologyResistive, 12-bit

ProcessorIntel XScale PXA255, 300 MHz

Memory32 MB Flash; 32 MB DRAM; 512 KB battery-backed SRAM

Input voltage10.8–30 VDC

Power consumption12 W

EthernetIEEE 802.3, 10/100Base-T, RJ45

Serial portEIA-232C/EIA-485, 300–115200 bps

Expansion storageOne Type II CompactFlash slot

Operating temperature0 to 60 °C (color model)

Front-panel ratingNEMA 4/4X/12; IP65 equivalent

Operating systemMicrosoft Windows CE.NET

Application Industry

Machine operator interfaceProvides local visualization and touch control for automated machinery and production cells.

Factory-floor monitoringDisplays alarms, status values and process information in stand-alone or networked installations.

Legacy HMI replacementSupports model-specific maintenance and replacement planning for installed QuickPanel View systems.

Industrial network integrationCombines 10/100Base-T Ethernet and configurable serial communication with touchscreen operation.

FAQ

Is IC754VSI06STD-KH a color touchscreen HMI?

Yes. The GE Fanuc documentation identifies the IC754VxI06STD family as the color 6-inch QuickPanel View with a 5.7-inch passive STN display, 320 × 240 resolution and 65,536 colors.

What does the -KH suffix mean for replacement planning?

The suffix is a hardware or manufacturing revision identifier. Buyers should compare the complete nameplate, connector arrangement, installed application and firmware before replacing an existing unit.

What power supply is required?

The manufacturer specifies 10.8–30 VDC input and 12 W real power. The DC supply and wiring should follow the original GE Fanuc installation instructions.

Which communication interfaces are available?

The unit provides IEEE 802.3 10/100Base-T Ethernet through RJ45 and a serial COM1 interface supporting EIA-232C/EIA-485 at 300 to 115200 bps.

Which software is used to maintain the HMI application?

GE Fanuc documentation for this generation references CIMPLICITY Machine Edition, the predecessor naming associated with today’s PAC Machine Edition visualization engineering environment. Confirm the archived project and compatible software version before commissioning.

What pre-shipment service does Moore Automation provide?

Moore Automation can verify model markings, inspect the unit, provide available official references and share shipment photographs before dispatch.
