GE A06B-6117-H209 Servo Amplifier Module

Product Summary

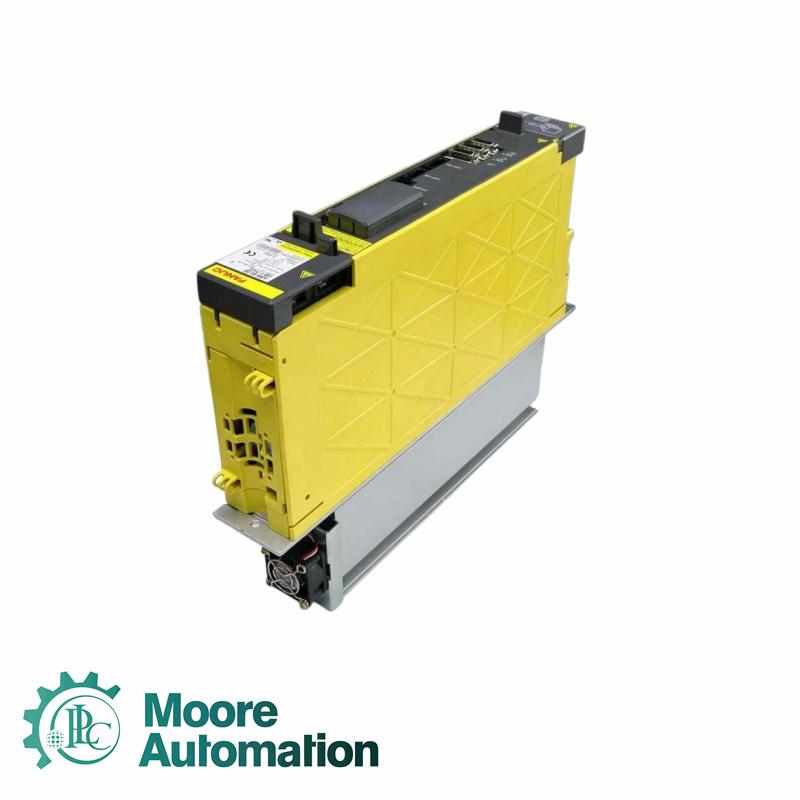

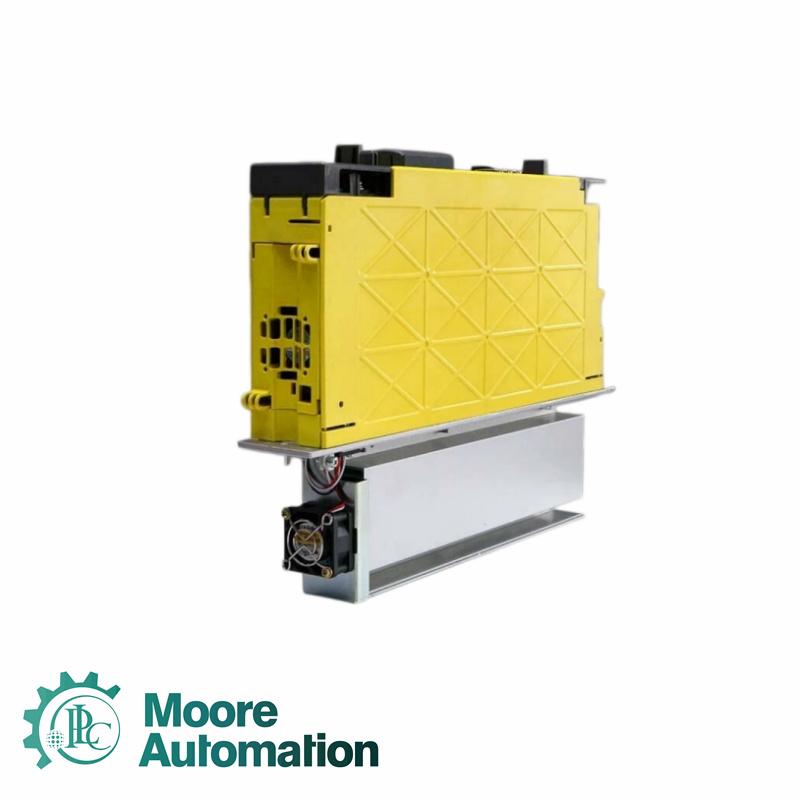

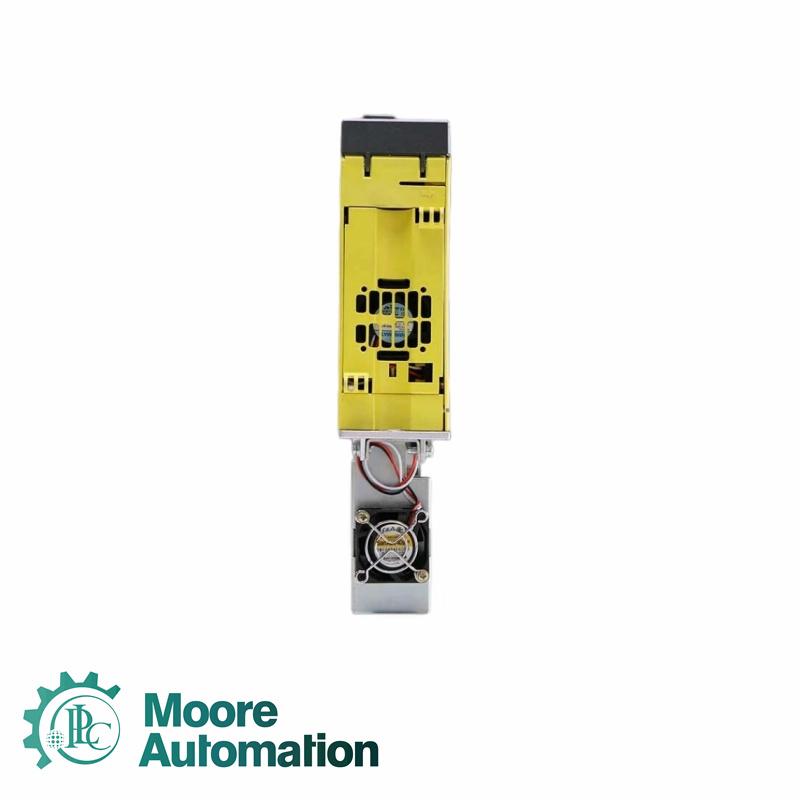

The Fanuc A06B-6117-H209 Servo Amplifier is a high-performance αi series dual-axis servo drive module designed for precise control of Fanuc servo motors in CNC machines and automated manufacturing systems. It is widely used in CNC machine tools and automated manufacturing equipment equipped with FANUC i series CNC control systems to control the movement of servo motors on two axes.

Full Details

Frequently Asked Questions

Q: When ordering the A06B-6117-H209 module as a spare part, are its included fuse and plastic connectors included?
A: Original modules usually include the internal protection fuse. External items such as the 24V power plug and side bridge are usually separate.

Q: What type of power module is generally required to use with this A06B-6117-H209 servo drive?
A: The module has no rectifier supply and requires an αi PSM, such as the A06B-6110 or 6112 series, via the CXA2A/B DC bus.

Q: What are the physical limitations when connecting the A06B-6117-H209 module's fiber optic bus (FSSB)?
A: The FSSB fiber cable must not be sharply bent; the bending radius must exceed 25mm to prevent optical attenuation and communication loss.

Q: Can the motor power lines (L-axis and M-axis) of the two axes of this A06B-6117-H209 module be cross-connected?
A: No. L-axis and M-axis are assigned to specific CNC axes. Reversing power or encoder wiring may cause servo runaway and overcurrent alarms.

Q: When installing the A06B-6117-H209 in a multi-axis parallel rack, what are the strict requirements for the heat dissipation gaps on both sides?
A: The side shorting piece and common ground busbar must be firmly tightened to maintain low contact resistance and prevent local high-current overheating.
