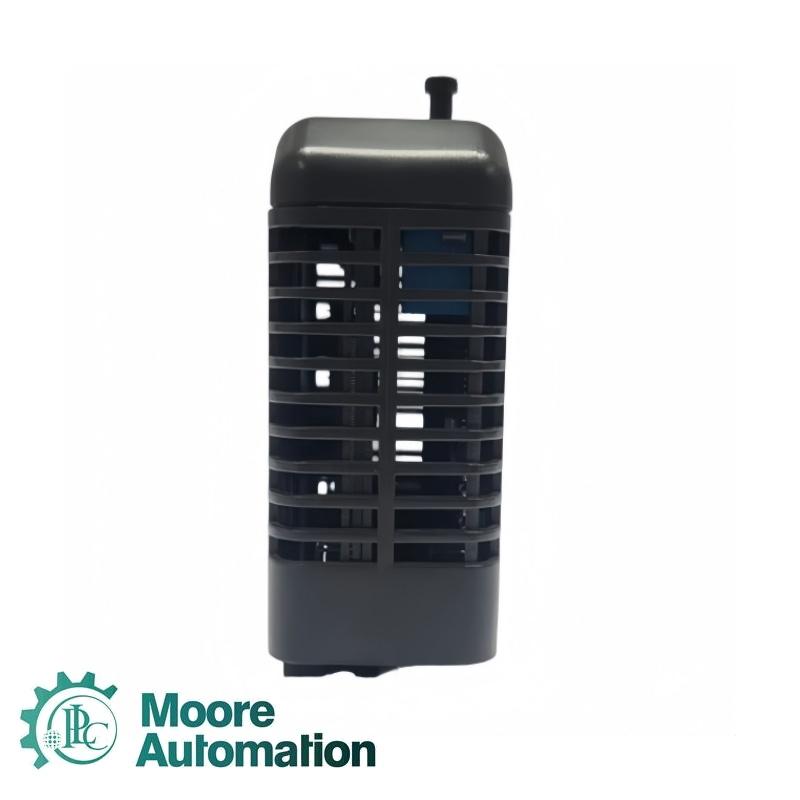

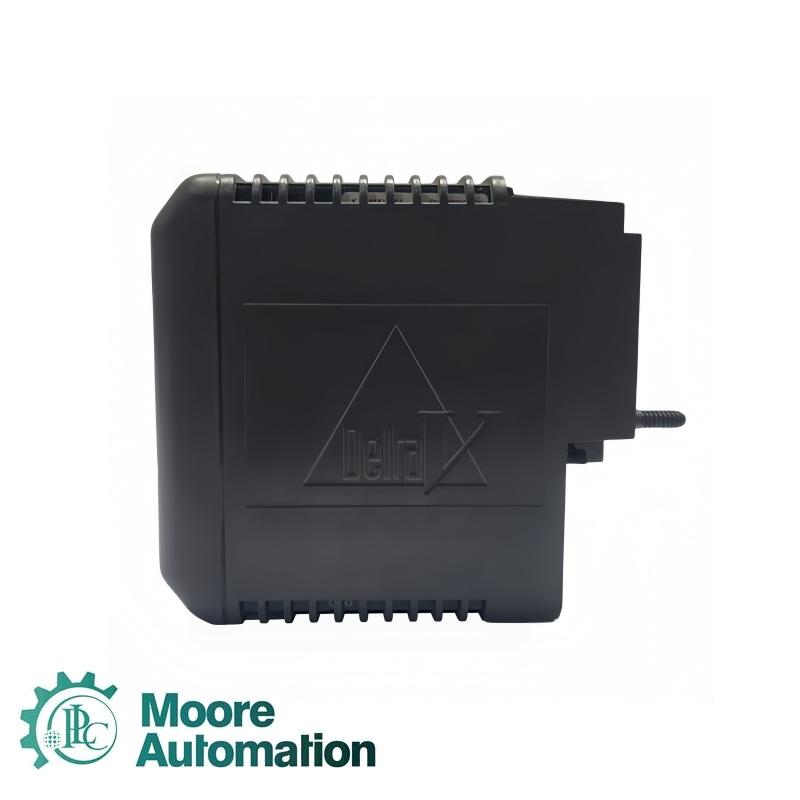

Emerson KJ3224X1-BA2 13P0137X022 DeltaV M-Series Thermocouple and mV Input Card

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

Order(MOQ):
1
Payment:
T/T
Product Origin:
UK
Color:
Brand New
Shipping Port:
Xiamen
Warranty:
1 Year
Product Origin:
UK
Lead Time:
3-5 Days

Product Detail

Specifications

The Emerson KJ3224X1-BA2 13P0137X022 is a DeltaV M-series traditional I/O analog input card for thermocouple and millivolt signals. Official Emerson M-series ordering information specifies eight input channels and standard or cold-junction-compensated termination block options.

ModelKJ3224X1-BA2

Article number13P0137X022

ManufacturerEmerson

System platformDeltaV

Product familyM-series Traditional I/O

Module categoryAnalog input card

Input channels8

Supported inputsThermocouple and mV

Standard termination blockVE4003S4B1

CJC termination blockVE4003S5B1

Application Industry

Process temperature measurementConnects field thermocouples to a DeltaV M-series traditional I/O subsystem.

Low-level voltage acquisitionAccepts millivolt signals used by compatible process sensors and transmitters.

Cold-junction-compensated installationsPairs with the specified CJC termination option when the project design requires reference-junction compensation.

M-series I/O maintenanceSupports like-for-like planning in installed modular DeltaV traditional I/O architectures.

FAQ

Is KJ3224X1-BA2 13P0137X022 intended for thermocouple or millivolt signals?

It is an eight-channel traditional I/O analog input card intended for thermocouple and low-level millivolt measurements.

Which termination blocks are listed for KJ3224X1-BA2 13P0137X022?

Official ordering information lists a standard termination option and a cold-junction-compensated termination option; select the one required by the field wiring design.

Can KJ3224X1-BA2 13P0137X022 be installed in any DeltaV carrier?

Verify the installed M-series carrier, terminal block and system revision before replacement because mechanical keying and I/O configuration must match.

What should be checked before wiring KJ3224X1-BA2 13P0137X022?

Confirm sensor type, polarity, shielding, grounding practice and the selected termination block against the project drawings and official I/O documentation.

How should KJ3224X1-BA2 13P0137X022 be commissioned after installation?

Perform channel configuration, loop verification and temperature or millivolt simulation according to the approved site procedure before returning the loop to service.

Company Service

✓ Model ValidationComplete code and system compatibility review

◉ Label InspectionClear identification and condition checks

▣ Secure PackingProtected packaging for electronic assemblies

↗ Global DeliveryTracked international shipping from stock

◇ Warranty SupportResponsive after-sales handling

▤ Document ServiceOfficial manuals and certificates when available

Need Emerson KJ3224X1-BA2 13P0137X022 DeltaV M-Series Thermocouple and mV Input Card?

Contact Moore Automation for pricing, availability and technical information.

Request a Quote →

Emailsales3@askplc.com

Phone / WhatsApp+86-18150117685

Address32D units, GuoMao Building, No 388 Hubin South Road, Siming district, Xiamen, China
