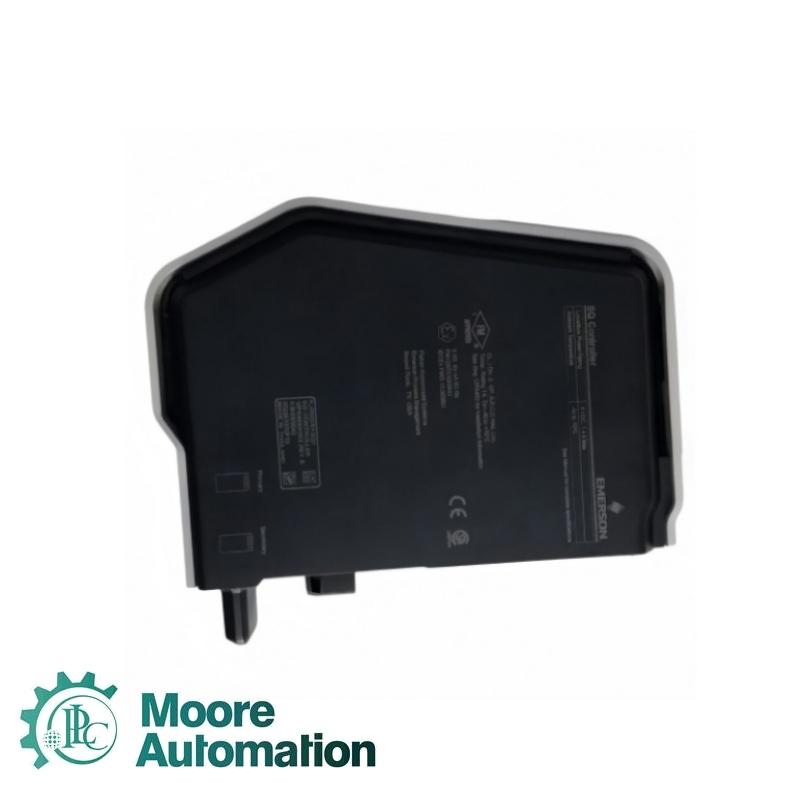

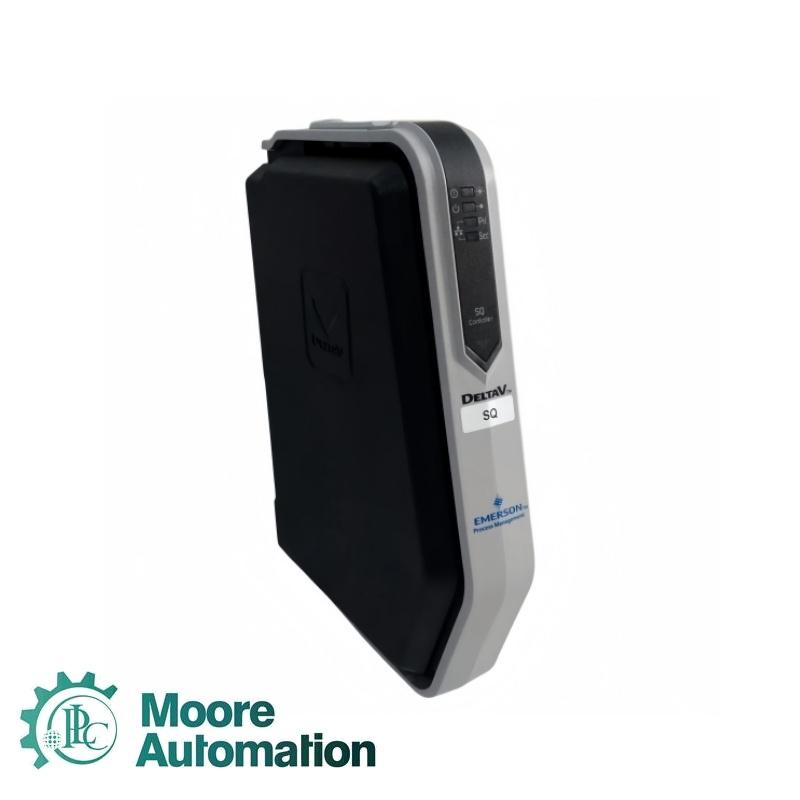

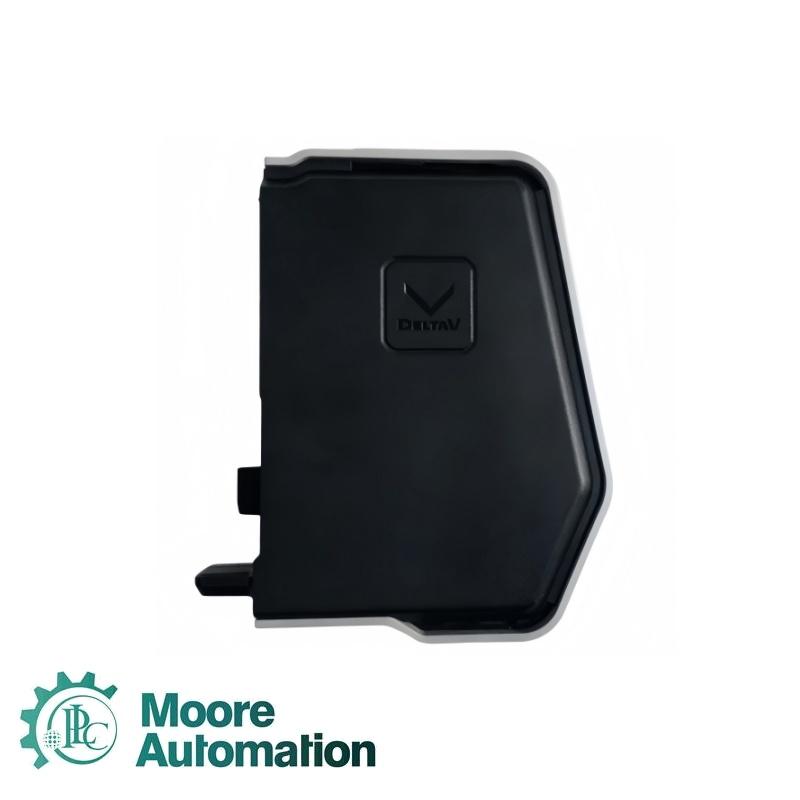

Emerson KJ2005X1-SQ1 12P6383X052 DeltaV SQ Controller

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

Order(MOQ):
1
Payment:
T/T
Product Origin:
UK
Color:
Brand New
Shipping Port:
Xiamen
Warranty:
1 Year
Product Origin:
UK
Lead Time:
3-5 Days

Product Detail

Specifications

The Emerson KJ2005X1-SQ1 12P6383X052 is a DeltaV SQ controller assembly for small and moderate control applications. It executes control logic and system communications, supports simplex or 1:1 redundant operation, and integrates traditional, remote and CHARMs I/O architectures.

Assembly numberKJ2005X1-SQ1

Part number12P6383X052

Product typeProcess automation controller

Controller familyDeltaV SQ

Controller arrangementSimplex or 1:1 redundant

Traditional local I/OUp to 64 cards

Local I/O architecture8 carriers × 8 cards

Remote I/O unitsUp to 16

CHARMs I/O cardsUp to 16

Signal types per CIOCUp to 96

DST limit750

SCADA tags3200

User memory48 MB

Module execution rates100 ms, 200 ms, 500 ms, 1 s, 2 s, 5 s, 10 s, 30 s or 60 s

Internal fuse3.0 A, non-replaceable

Power dissipation5 W typical; 7 W maximum

Operating temperature-40 to +70 °C

Storage temperature-40 to +85 °C

Relative humidity5 to 95%, non-condensing

Ingress protectionIP20

Control network portsPrimary and secondary 8-pin RJ45

Software requirementDeltaV version 11.3.1 or later

Application Industry

Process unit controlExecutes regulatory, sequential and equipment control for small and moderate process units.

Distributed control systemsProvides controller communications and control execution within a DeltaV architecture.

Traditional I/O modernizationConnects local and remote card-based I/O while retaining controller-based control strategies.

CHARMs I/O integrationSupports electronic marshalling through connected CHARMs I/O cards.

FAQ

Can KJ2005X1-SQ1 12P6383X052 operate redundantly?

Yes. A 1:1 redundant arrangement is supported by adding the matching secondary controller and power supply.

What I/O capacity is supported by KJ2005X1-SQ1 12P6383X052?

The controller supports up to 64 traditional local I/O cards, 16 remote I/O units and 16 CHARMs I/O cards, subject to system limits.

Which software version is required for KJ2005X1-SQ1 12P6383X052?

The controller requires system software version 11.3.1 or later.

What environmental limits apply to KJ2005X1-SQ1 12P6383X052?

Operation is specified from -40 to +70 °C at 5 to 95% relative humidity without condensation.

How should KJ2005X1-SQ1 12P6383X052 be installed?

Use the dedicated power/controller carrier and system power supply, verify network connections and configuration, then commission it according to the control-system documentation.
