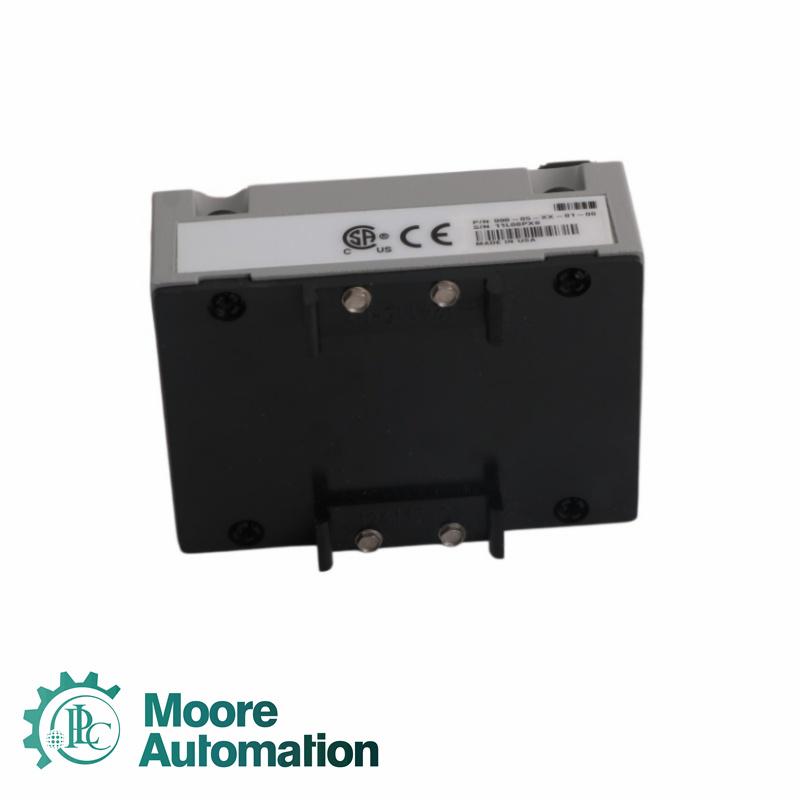

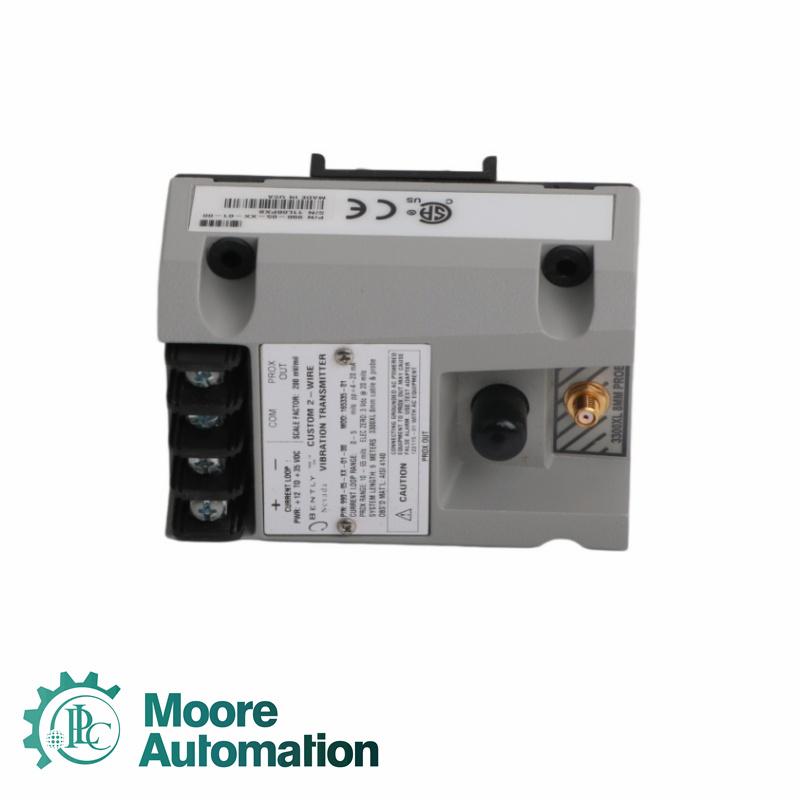

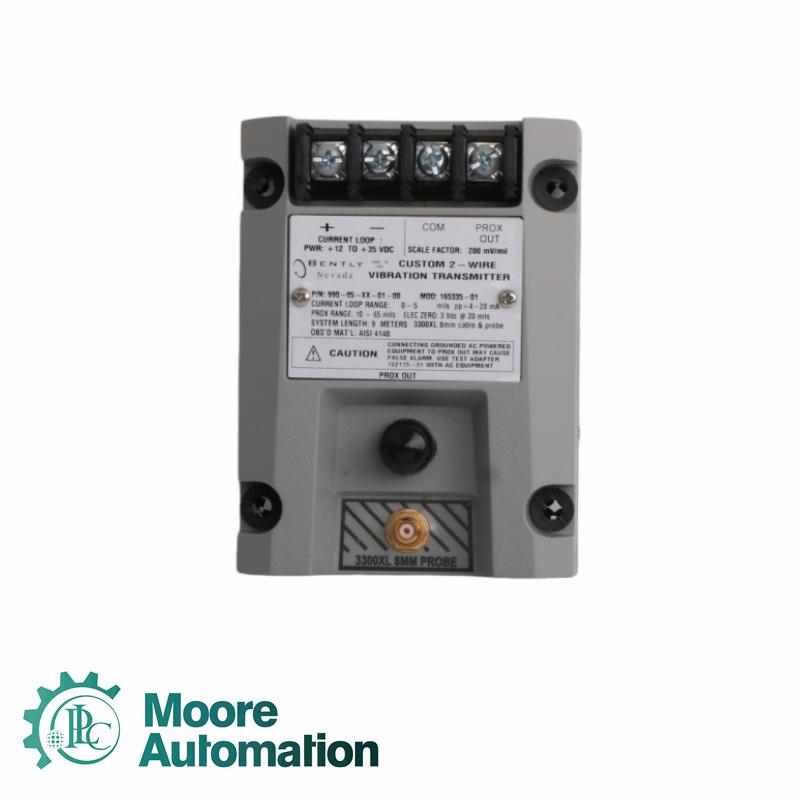

BENTLY NEVADA 990-05-XX-01-05 MOD:165335-01 Vibration Transmitter

1

Sale Manager----John Yang

Email: sales3@askplc.com

Mobile(WhatsApp):  86-18150117685

2

The 990 Vibration Transmitter is intended primarily for the original equipment manufacturers (OEMs) of centrifugal air compressors or small pumps, motors, or fans who prefer to provide a simple 4 to 20 mA proportional vibration signal as the input to their machinery control system. The transmitter is a two-wire, loop-powered device that accepts input from our 3300 NSv proximity probe and its matching extension cable (available in 5 m and 7 m system length options). The transmitter conditions the signal into appropriate peak-to-peak vibration amplitude engineering units, and provides this value as a proportional 4 to 20 mA industry-standard signal as the input to the control system where machinery protection alarming and logic occurs.

Ask John Yang（Email: sales3@askplc.com）for more infor of 990-05-XX-01-05 MOD:165335-01

3

Full-scale Option: 0-5 mils pp (0-125 μm pp)
System Length Option: 7.0 meters (23.0 feet)
Mounting Option: 35 mm DIN rail clips
Agency Approval Option: CSA Division 2, ATEX Zone 0, ATEX Zone 2 and includes ABS maritime approval
Dimension: 7.3x5x10cm
Weight: 0.44 kg
Operating Temperature: -35°C to +85°C (-31°F to +185°F)
Storage Temperature: -52°C to +100°C (-62°F to +212°F).
Input: Accepts 1 non-contacting 3300 NSv Proximity Probe and extension cable
Power: Requires +12 to +35 Vdc input at the transmitter terminal
Maximum Loop Resistance: 1,000 Ω including cable at 35 Vdc
Current Limiting: 23 mA typical
Output Impedance: Prox Out has a 10 kΩ output impedance calibrated for a 10 MΩ load
Linear Range: 0.25 to 1.65 mm (10 to 65 mils) for Prox Out
Leadwire Length: Proximitor Sensor Output (BNC connector), maximum cable distance is 3 meters (10 feet)

4

What is the BENTLY NEVADA 990-05-XX-01-05 MOD:165335-01?
It is a Thrust Transmitter.

Is this product brand new?
Yes, BENTLY NEVADA 990-05-XX-01-05 MOD:165335-01 is brand new, original, unused, and factory sealed

What shipping methods are used for 990-05-XX-01-05 MOD:165335-01?
Major carriers like FedEx, DHL, and UPS are primarily used for worldwide delivery.

How are the 990-05-XX-01-05 MOD:165335-01 packaged?
990-05-XX-01-05 MOD:165335-01 packaging generally involves multiple layers of protection to ensure safe transit.

Do you offer any discounts?
Yes! For discounts on 990-05-XX-01-05 MOD:165335-01, please contact John for the best offer.
