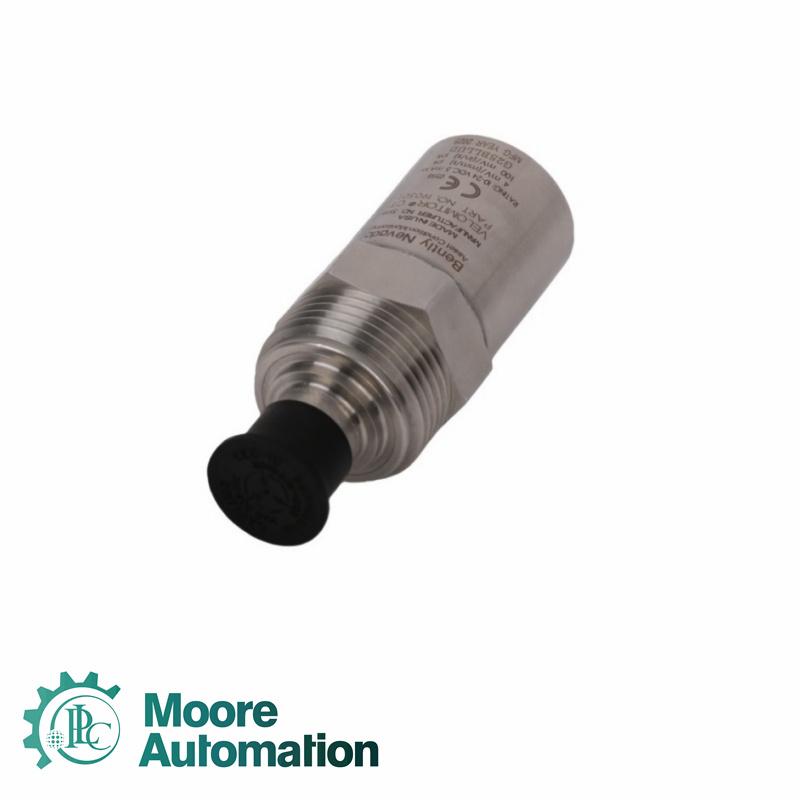

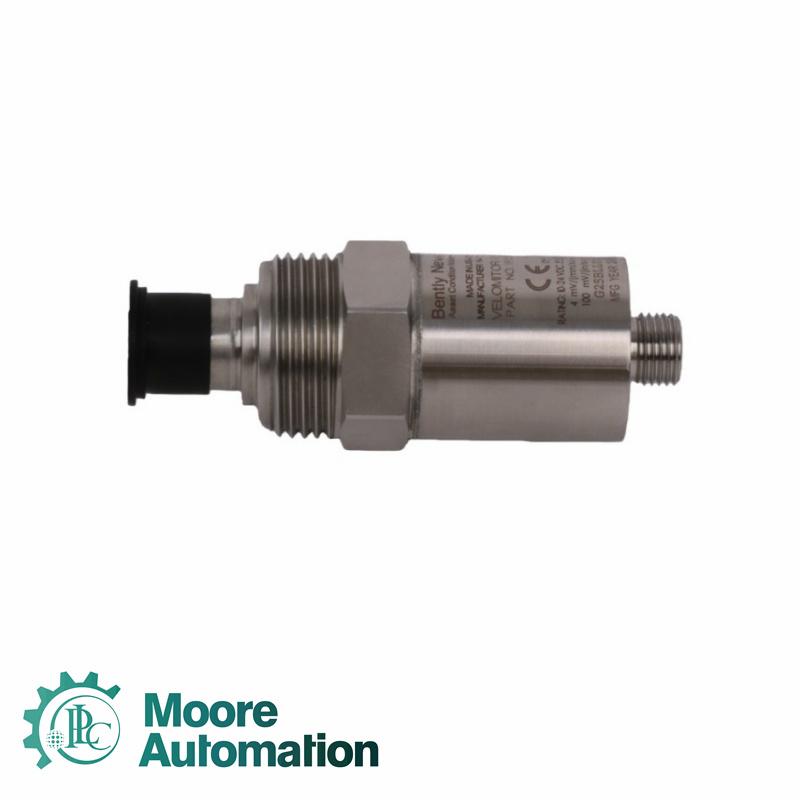

BENTLY NEVADA 190501-02-99-00 Velomitor CT Velocity Transducer

5-star Sale Manager--John Yang

Email

Mobile(WhatsApp)

sales3@askplc.com

86-18150117685

Long Description

190501-02-99-00

The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor. Its design specifically measures casing vibration velocity on cooling tower and air-cooled heat-exchanger fan assemblies that operate at or above 90 rpm (100 to 300 rpm typical).  The Velomitor CT Transducer can measure vibration amplitudes at these frequencies as well as the vibration frequencies generated by the fan motor and speed reducer.

Contact John Yang sales3@askplc.com , know more information.

Technical Specifications

190501-02-99-00

Mounting Hardware Option:Stud 3/8-in 24 to 1/2-in 20
Connection Option:Unit with included 32-foot cable
Agency Approval Option:No Approvals
Dimension:9.2x3.6x3cm
Weight:0.3kg
Sensitivity:3.94 mV/mm/s (100 mV/in/s) ±5%
Frequency Response:3.0 Hz to 900 Hz (180 to 54,000 cpm) ±1.0 dB or 1.5 Hz to 1.0 kHz (90 to 60,000 cpm) ±3.0 dB
Temperature Sensitivity:-8% to +5% typical over the operating temperature range
Case Material:316L stainless steel
Connector:2-pin 316L stainless steel MIL-C-5015, top
Mounting Torque:4.5 N-m ± 0.6 N-m (40 in– lbf ± 5 in-lbf)
Mounting Angle:Any orientation
Mounting Surface:33 mm diameter (1.3 in diameter)
Operating Temperature:-40°C to +85°C (-40°F to +185°F)
Storage Temperature:-40°C to +100°C (-40°F to +212°F)
Shock Limit:5000 g pk, maximum
Humidity Limit:100% condensing, non-submerged

FAQ

What is Bently Nevada 190501-02-99-00?
It is a Velomitor CT low-frequency version of the 330500 Velomitor that includes a sensor for usage in potentially dangerous settings.

What is the Operating Temperature of the component?
The operating Temperature of the component ranges from -40 degrees celsius to +85 degrees celsius.

What is the storage Temperature of the component?
The storage Temperature of the component ranges from -40 degrees celsius to +100 degrees celsius.

Which material is used in case?
Case Material is 316L stainless stee

How long does it take for you to Ship this component?
WE maintains a large inventory and can fulfill many orders on the same day. Please contact us for additional information.

How to Check Price and Availability For 190501-02-99-00?
Please John Yang for sales at +86-18150117685 or Request a Quote.

Five Star Service

Rapid Shipment: In-stock items ship within 1-3 days.
Industry Expertise: Over a decade of sales experience.
Extensive Inventory: Wide range of brands and global warehousing.
Quality Assurance: Verified products with a 1-year warranty.
