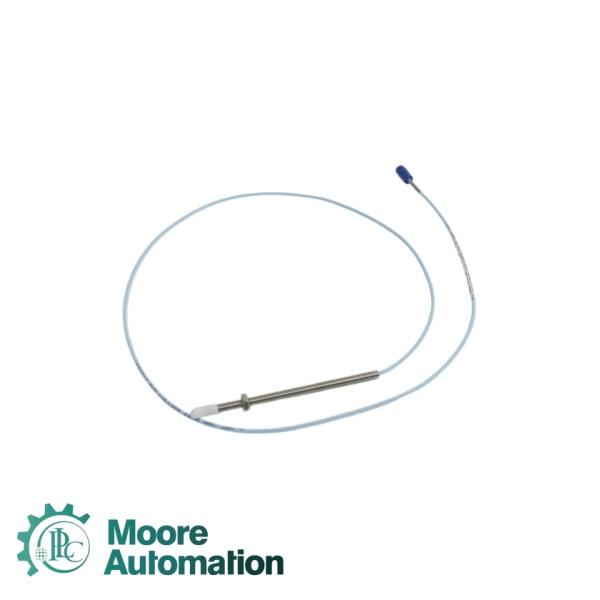

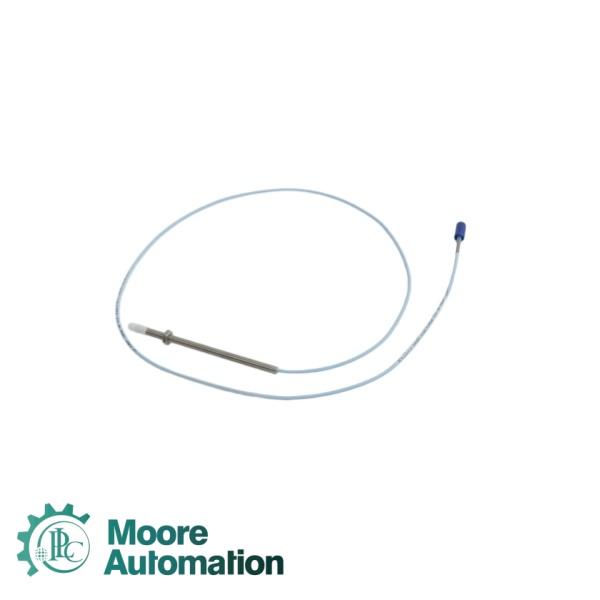

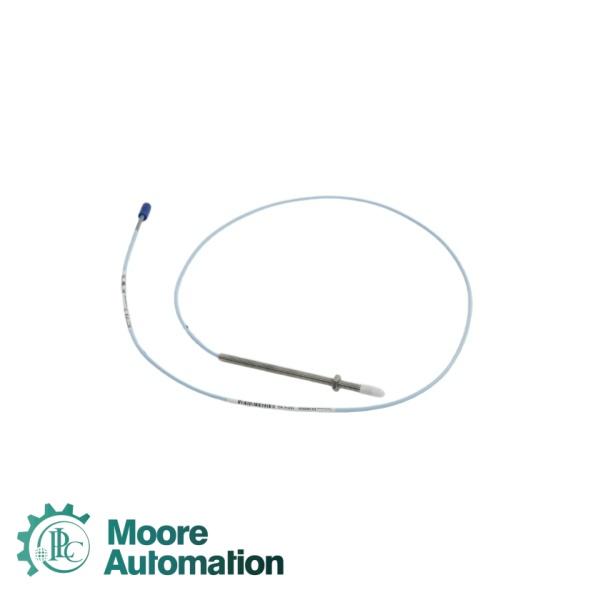

Bently Nevada 86691-00680-0350-90-05 3300 XL NSv Proximity Transducer System

The Bently Nevada 86691-00680-0350-90-05 is a rugged, industrial-grade eddy current proximity probe designed for high-precision radial vibration, axial position, and speed measurements on rotating machinery. It features a specialized probe tip construction with an encapsulated coil that emits a high-frequency radio frequency (RF) field. When a target conductive surface (such as a turbine shaft) enters this field, eddy currents are generated, shifting the coil’s impedance proportionally to the target distance.

Unthreaded Length(00680): 0.680 inches

Overall Case Length(0350): 3.50 inches

Total Cable Length(90): 9.0 meters (29.5 feet)

Agency Approval(05): Multiple Approvals

Input Voltage Requirement: –17.5 Vdc to –26 Vdc

Current Consumption: 12 mA

Operating Temperature Limits: –34 °C to +177 °C (–30 °F to +350 °F)

Q1: What is Bently Nevada known for?

A1: Bently Nevada is known for being a global leader in machinery protection and condition monitoring systems for critical rotating equipment.

Q2: What industries does Bently Nevada serve?

A2: Oil & gas, power generation, chemical processing, mining, and pulp & paper industries.

Q3: What types of measurements do Bently Nevada products provide?

A3: Vibration, axial position, speed, eccentricity, temperature, and casing expansion monitoring.

Q4: Are Bently Nevada products compliant with international standards?

A4: Yes, they comply with API 670, IEC, ISO, ATEX, CSA, and IECEx standards.

Q5: What is the 3500 monitoring system?

A5: The 3500 system is a rack-based machinery protection system that provides continuous online monitoring, alarm detection, and relay outputs for machine shutdown.
