Brief description |

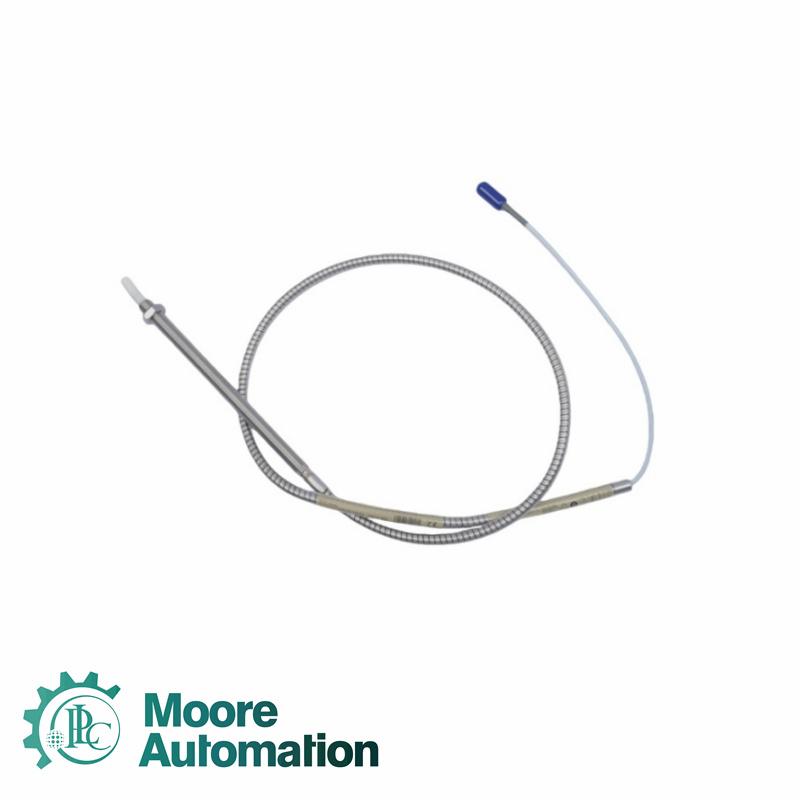

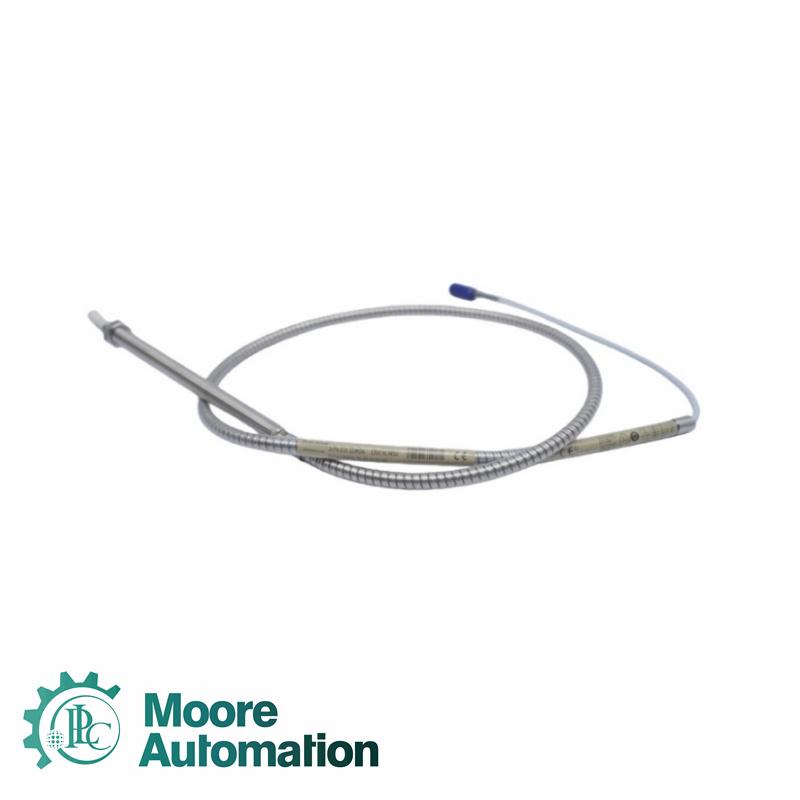

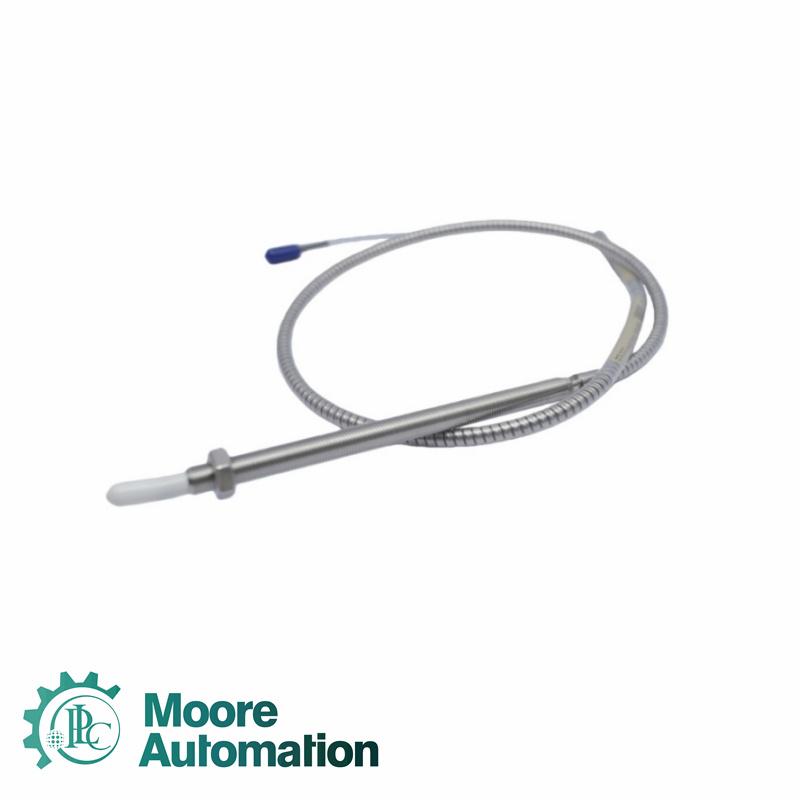

The 3300 XL NSv Proximity Transducer system is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with tight installation requirements. The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems.
|
Technical parameters |
|
|
Unthreaded Length Option |
0.0 in |
|
Overall Case Length Option |
6.0 in |
|
Cable Length Option |
1.0 meter (39 in) |
|
Connector and Cable Option |
Miniature coaxial ClickLoc connector with connector protector, standard cable |
|
Agency Approval Option |
Not required |
|
Probe Case Thread |
3/8-24 UNF thread |
|
Maximum Length of Thread Engagement |
0.563 in |
|
Probe Temperature Range |
-52°C to +177°C (-62°F to +351°F) |
|
Storage Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
Probe Tip Material |
Polyphenylene sulfide (PPS) |
|
Probe Case Material |
AISI 304 stainless steel (SST) |
|
Field Wiring |
0.2 to 1.5 mm2 (16 to 24 AWG)[0.25 to 0.75 mm2 (18 to 23 AWG) with ferrules] |
|
Linear Range |
1.5 mm (60 mils) |
|
Recommended Gap Setting |
1.0 mm (40 mils) |
|
Output resistance |
50 Ω |
|
Supply Sensitivity |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Contact me for a big surprise！ |
Email: sales3@askplc.com
Mobile(WhatsApp): 86-18150117685
John Yang is 24 hours online for you
|
Trust moore--Trustworthy global supplier |
Over the years, we have grown into a trusted global supplier with operations centers in Xiamen, China and Hong Kong, China. Our business spans the globe, with most of our valued customers located in the Middle East, Europe, the UK, Asia, and the USA.
|
Application |
Air Compressor Plants: Monitor compressor shaft vibration and radial displacement.
Refrigeration Equipment Plants: Monitor high-speed compressor shafts.
Industrial Gas Plants: Monitor compressor bearing vibration.
Precision Fluid Machinery Plants: Monitor fluid bearing speed and reverse phase.
Power Machinery Plants: Monitor high-speed rotor stability and displacement.
|
FAQ |
Q: What is the overall housing length of 330909-00-60-10-0-00?
A: The overall housing length dimension is 6.0 inches.
Q: What cable and connector specifications are used for 330909-00-60-10-0-00?
A: It uses a Miniature coaxial ClickLoc connector with connector protector and standard cable.
Q: What are the agency certification requirements for 330909-00-60-10-0-00?
A: This model does not require agency certification.
Q: What is the maximum thread engagement length of 330909-00-60-10-0-00?
A: The maximum thread engagement length is 0.563 inches.
Q: What material is used for the housing of 330909-00-60-10-0-00?
A: It uses AISI 304 stainless steel material.
|
