Brief description |

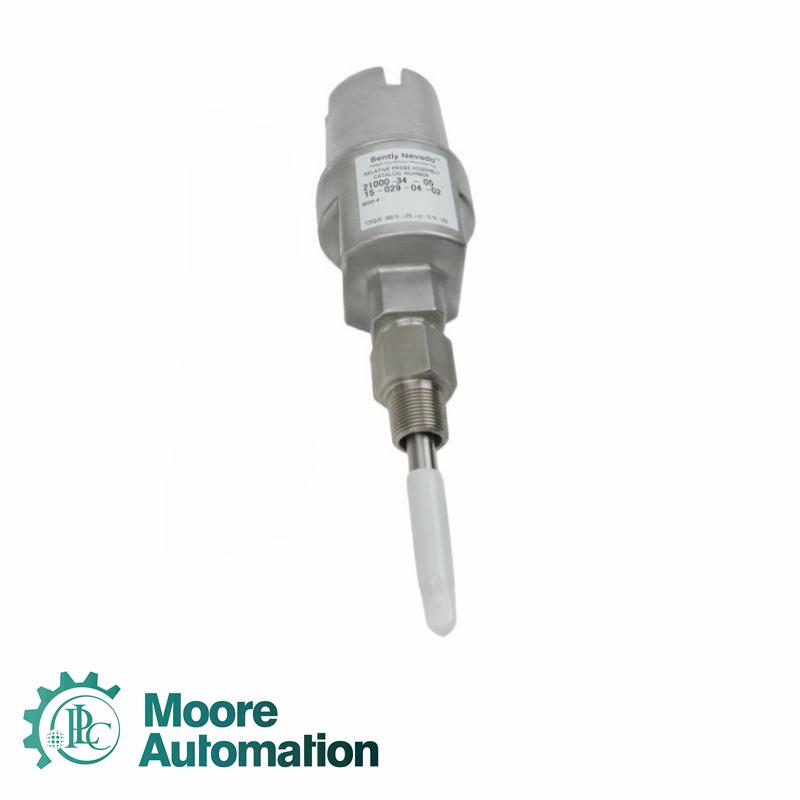

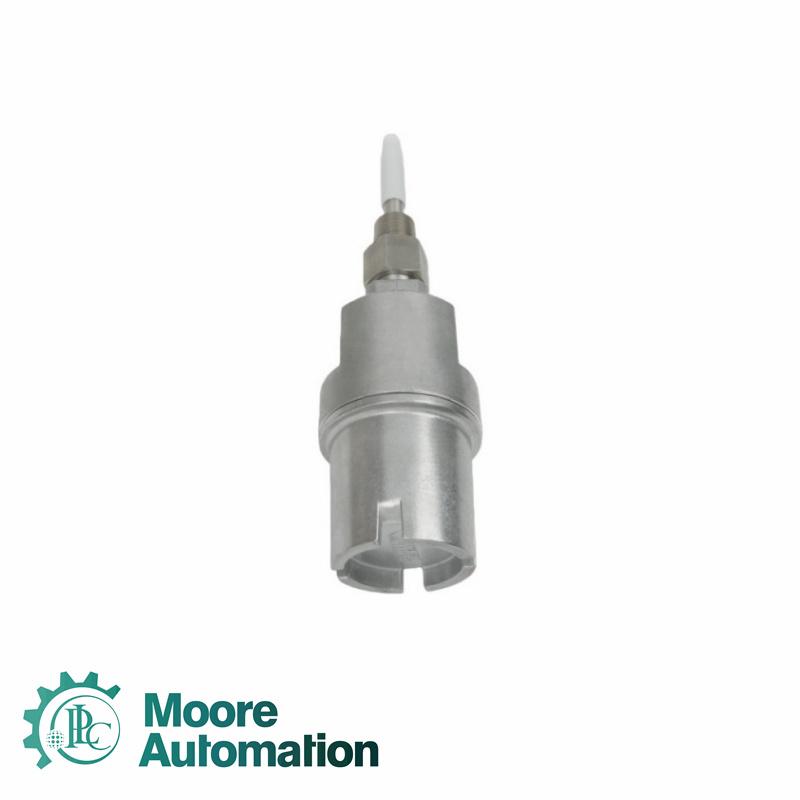

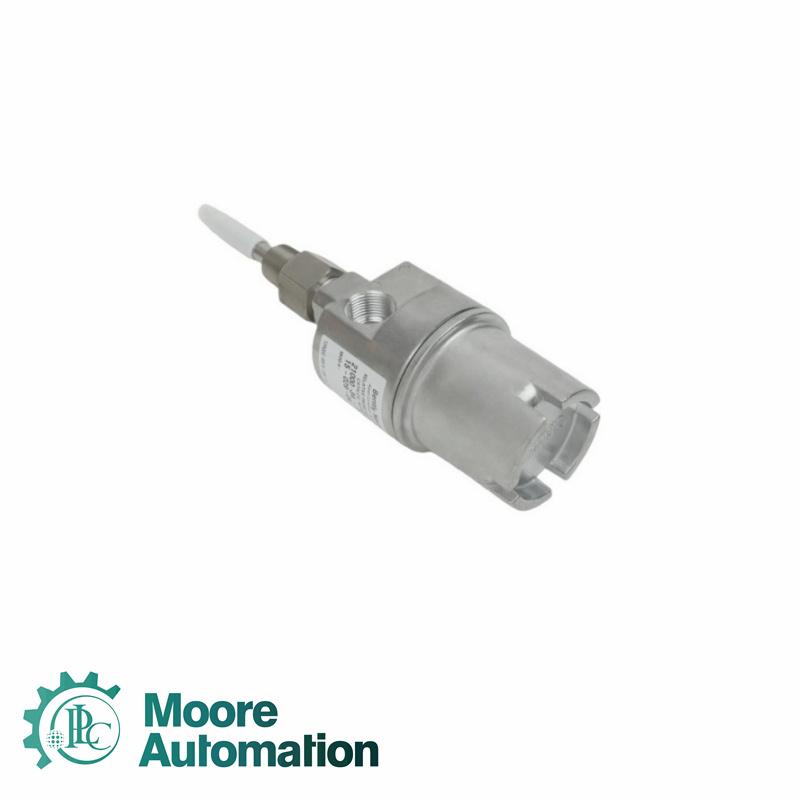

To externally mount proximity probes, use one of these all-metal Proximity Probe Housing Assemblies: 21000 aluminum probe housing assembly, 24701 stainless steel probe housing assembly .The 21000, 24701, and 164818 Proximity Probe Housing Assemblies consist of the following parts: A dome cover that screws into the body of the housing; Threaded ports for conduit connections; A probe sleeve of optional length; O-rings; A reverse mount proximity probe；A thread seal; Optional conduit fittings; An optional standoff adapter.
|
Technical parameters |
|
|
Probe with Connector |
3300 XL 8 mm probe with connector protector, selectable hazardous area approvals |
|
Probe Cable Length |
0.5 m (20 in) |
|
Standoff Adapter (Option C Dimension) |
No standoff adapter |
|
Probe Penetration (Option D Dimension) |
2.2 in |
|
Fittings |
One 3/4-14 NPT plug; one 3/4-14 to 1/2-14 NPT reducer; one cable seal grip with grommets for the following cable sizes: 1/8 to 3/16 inches, 1/4 to 5/16 inches, 5/16 to 3/8 inches |
|
Mounting Thread |
3/4-14 NPT |
|
Material |
Aluminum body with 304 stainless steel sleeve |
|
Mass (Weight) |
1.1 kg (2.4 lb) typical, without fittings |
|
Contact me for a big surprise！ |
Email: sales3@askplc.com
Mobile(WhatsApp): 86-18150117685
John Yang is 24 hours online for you
|
Trust moore--Trustworthy global supplier |
Over the years, we have grown into a trusted global supplier with operations centers in Xiamen, China and Hong Kong, China. Our business spans the globe, with most of our valued customers located in the Middle East, Europe, the UK, Asia, and the USA.
|
Application |
Thermal Power Plants: Monitor turbine and generator shaft vibration and displacement.
Hydroelectric Power Plants: Monitor hydro generator shaft runout and swing.
Petrochemical Plants: Monitor compressor and blower shafts.
Steel Plants: Monitor blower and gearbox shaft position.
Large Pump Stations: Monitor heavy-duty pump rotor radial displacement.
|
FAQ |
Q: What probe model is used for 21000-34-05-00-022-03-02?
A: It uses a 3300 XL 8mm probe with connector protector and optional explosion-proof certification.
Q: What is the bracket adapter length of 21000-34-05-00-022-03-02?
A: This model does not include a bracket adapter.
Q: What is the probe insertion depth of 21000-34-05-00-022-03-02?
A: The insertion depth dimension is 2.2 inches.
Q: Which threaded fittings are included with 21000-34-05-00-022-03-02?
A: It includes one 3/4-14 NPT plug and one 3/4-14 to 1/2-14 NPT reducer fitting.
Q: What material is used for the housing body of 21000-34-05-00-022-03-02?
A: It uses an aluminum body with a 304 stainless steel sleeve.
|
