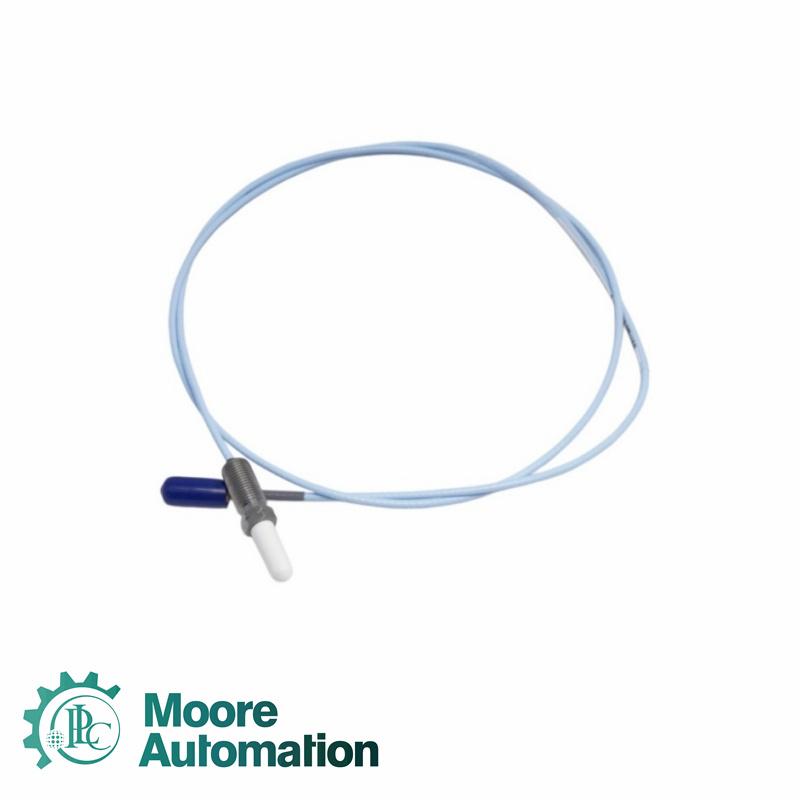

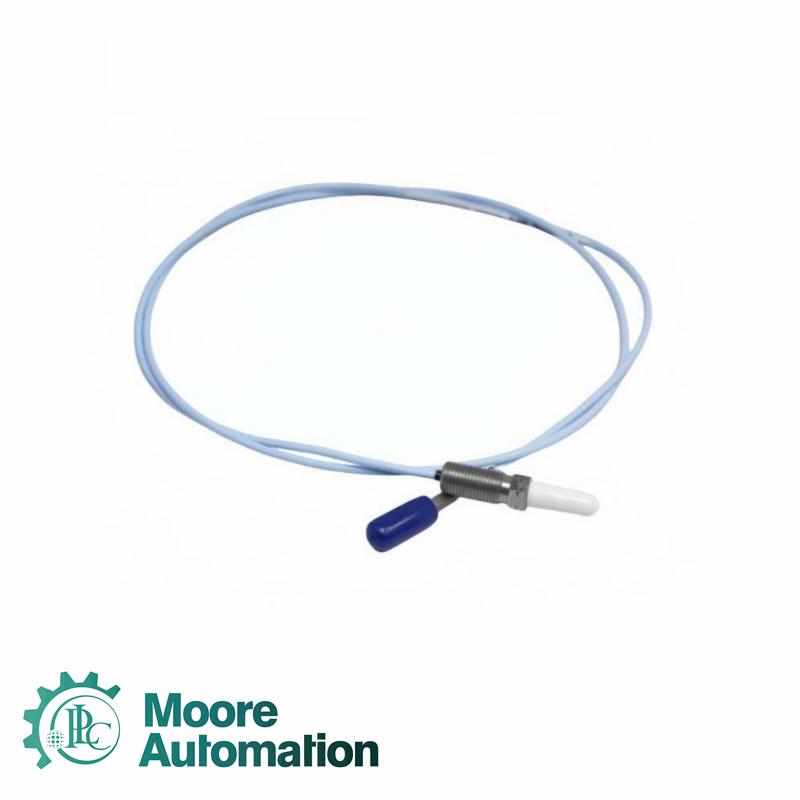

Bently Nevada 330907-05-30-10-02-05 3300 NSv Reverse Mount Probe

Bently Nevada 330907-05-30-10-02-05 3300 NSv Reverse Mount Probe

100% Original New
1 Year Warranty
Competitive Pice
Email: sales3@askplc.com

Order(MOQ):
1
Payment:
T/T
Product Origin:
USA
Color:
Brand New
Shipping Port:
Xiamen
Lead Time：
in stock

Product Detail

✓New and Original	✓In Stock	✓Huge Discount
Contact: John Yang	Email: sales3@askplc.com	Mobile(WhatsApp): 86-18150117685

Performance Specifications

Total Length Option	1.0 meter (39 in)
Connector Option	Miniature coaxial ClickLoc connector, FluidLoc cable
Agency Approval Option	Multiple Approvals
Probe Case Thread	3/8-24 UNF threads
Maximum Length of Thread Engagement	0.563 in
Probe Temperature Range	-52°C to +177°C (-62°F to +351°F)
Storage Temperature	-52°C to +177°C (-62°F to +351°F)
Probe Tip Material	Polyphenylene sulfide (PPS)
Probe Case Material	AISI 304 stainless steel (SST)
Field Wiring	0.2 to 1.5 mm² (16 to 24 AWG); 0.25 to 0.75 mm² (18 to 23 AWG) with ferrules
Linear Range	1.5 mm (60 mils)
Recommended Gap Setting	1.0 mm (40 mils)
Output Resistance	50 Ω
Supply Sensitivity	Less than 2 mV change in output voltage per volt change in input voltage
Connector-to-connector Torque (Maximum Rated)	22.6 N•m (200 in•lb)
Connector-to-connector Torque (Recommended)	7.5 N•m (66 in•lb)

330907-05-30-10-02-05 3300 NSv Reverse Mount Probe

The 3300 XL NSv Proximity Transducer system is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with tight installation requirements. The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems.

Frequently Asked Questions

Q: What is the thread specification and installation method of the 330907-05-30-10-02-05 probe?
A: The basic code 330907 represents an M10×1 metric thread and a specially designed Reverse Mount structure.

Q: What cable specification is defined by the middle code “10” in 330907-05-30-10-02-05?
A: It represents a probe integral cable total length (Total Length) of 1.0 meter (39 inches).

Q: What technical and compliance meaning does the suffix “05” have in 330907-05-30-10-02-05?
A: It represents multi-country hazardous area explosion-proof certification (Multiple Approvals, including ATEX, CSA, IECEx, etc.).

Q: What electrical connector is defined by option “02” in 330907-05-30-10-02-05?
A: A ClickLoc miniature coaxial connector with a connector protector (standard cable) is defined.

Q: In which specific industrial applications is the 330907-05-30-10-02-05 reverse mount probe typically used instead of standard probes?
A: It is typically used in areas with side-view or counter bore limitations for standard 5mm or 8mm probes, and is suitable for radial vibration measurement of miniature shafts smaller than 51 mm.

Applicaiton

Power Plants: Reverse blind-hole installation in compact turbines and feed pumps for radial shaft vibration monitoring.

Oil Refineries: Reverse mounting in hazardous areas for compressor and process pump bearing condition monitoring.

LNG Plants: Reverse thread mounting on compressor housings for sealed speed and key phase monitoring.

Steel Plants: Reverse installation in sealed bearing housings, protecting leads from heat and dust.

Industrial Water Pump Plants: Reverse locking design for non-contact vibration measurement in deep-hole pump rotors.
