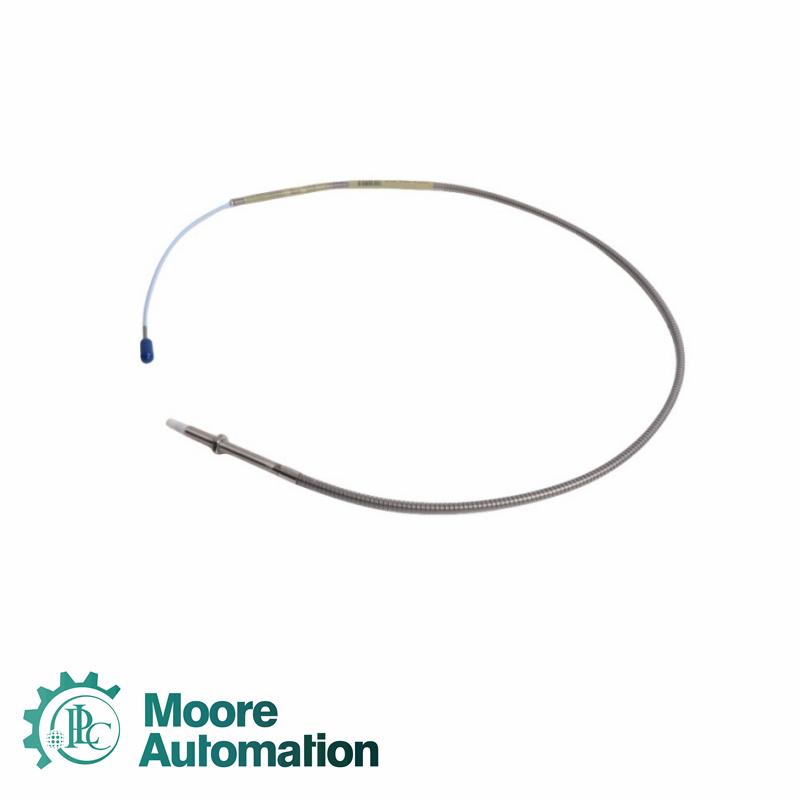

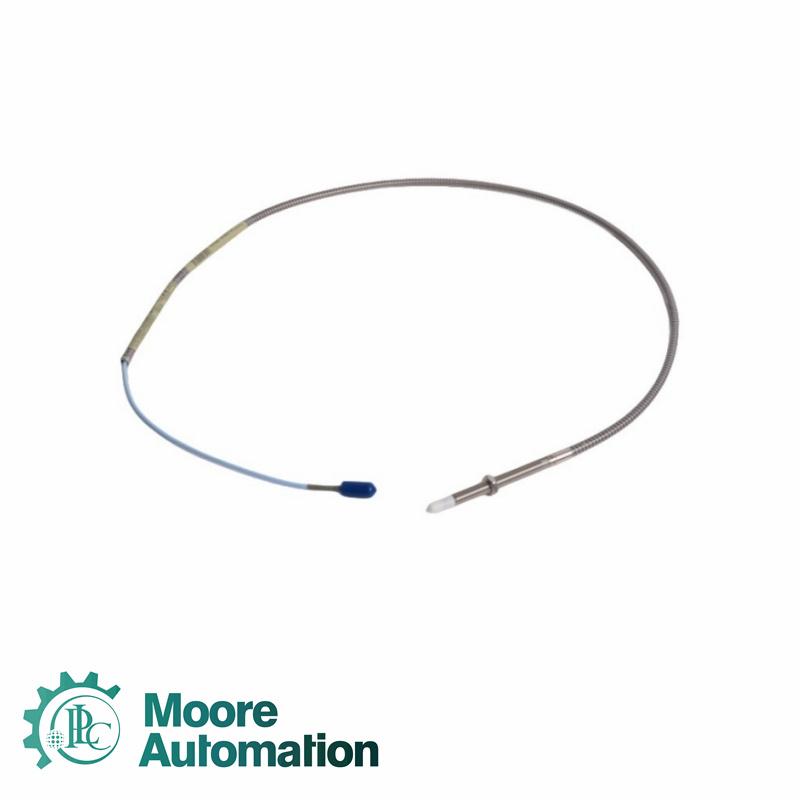

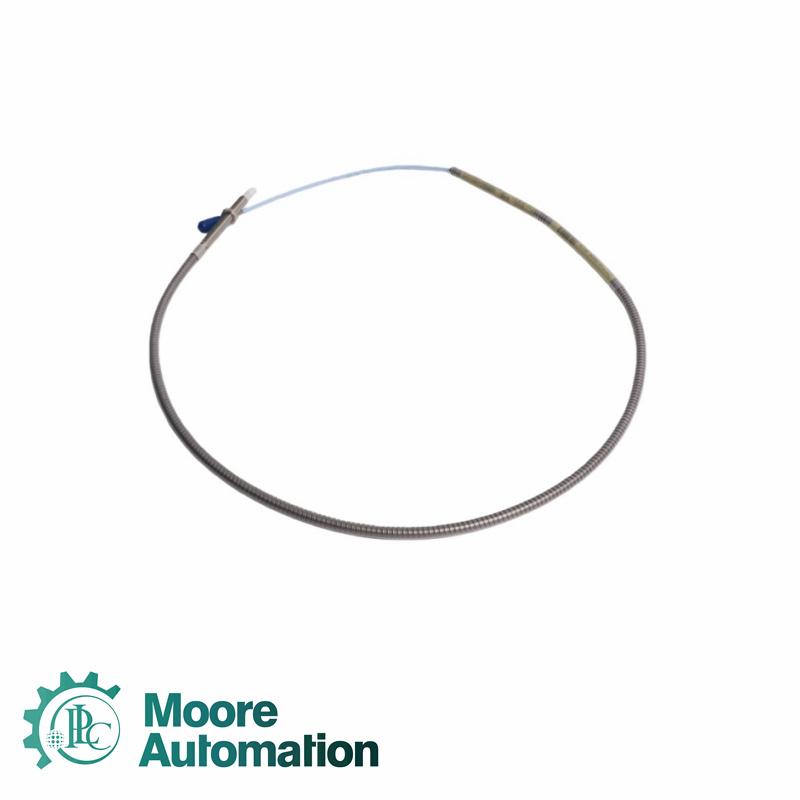

Bently Nevada 330904-00-10-05-01-BR 3300 NSv Proximity Probe

Performance Specifications

The 3300 XL NSv Proximity Transducer system is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with tight installation requirements. The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems.

Frequently Asked Questions

Q: What is the core mechanical interface specification of the 330904-00-10-05-01-BR probe?
A: The basic structure code of this model is 330904, representing a probe design with an M8×1 metric thread and a stainless steel armored sheath.

Q: How much unthreaded length is defined by option “00” in 330904-00-10-05-01-BR?
A: It represents an unthreaded length (Unthreaded Length) of 0.0 mm, meaning the entire probe housing surface is fully threaded with M8 threads.

Q: What is the total probe housing length corresponding to “10” in 330904-00-10-05-01-BR?
A: An overall case length (Overall Case Length) of 100 mm is represented (normally indicated in 10 mm increments, with 10 corresponding to 100 mm).

Q: What configurations are represented by the suffixes “01” and “BR” in 330904-00-10-05-01-BR?
A: A ClickLoc miniature coaxial connector with a connector protector (standard cable) is represented by 01; certification for specific Brazil INMETRO hazardous area explosion-proof requirements is represented by BR.

Q: What additional components are required to connect 330904-00-10-05-01-BR to a 3500 monitoring system?
A: A matching 3300 XL NSv extension cable must be connected, along with the corresponding NSv Proximitor Sensor, and the signal is finally received by 3500/42M or other monitoring modules.

Applicaiton

Oil Refineries: Compact centrifugal compressors and process pumps in hazardous areas, with anti-interference design for tight spaces.

LNG Plants: Speed monitoring and zero-speed protection for gas turbines and sealed compressors.

Steel Plants: Small gear speed monitoring for blowers and TRT units, with stainless steel armored cable protection.

Fertilizer & Ethylene Plants: Axial position and differential expansion monitoring for compact air units and ammonia compressors.

Industrial Water Pump Plants: Non-contact vibration and phase reference measurement for high-speed centrifugal and submersible pumps.
