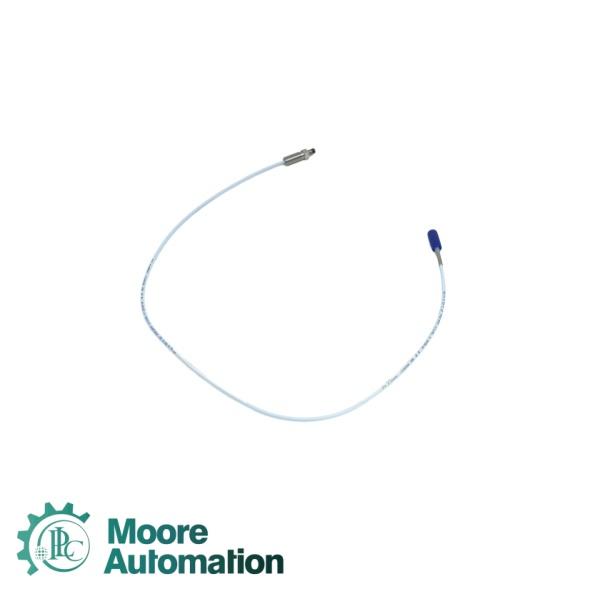

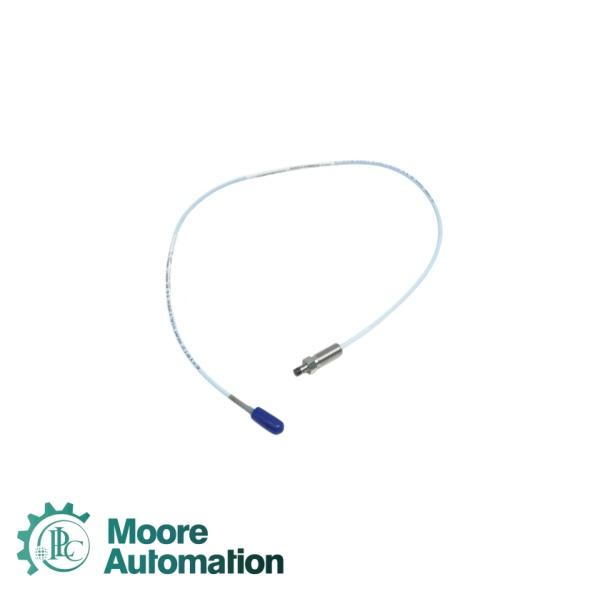

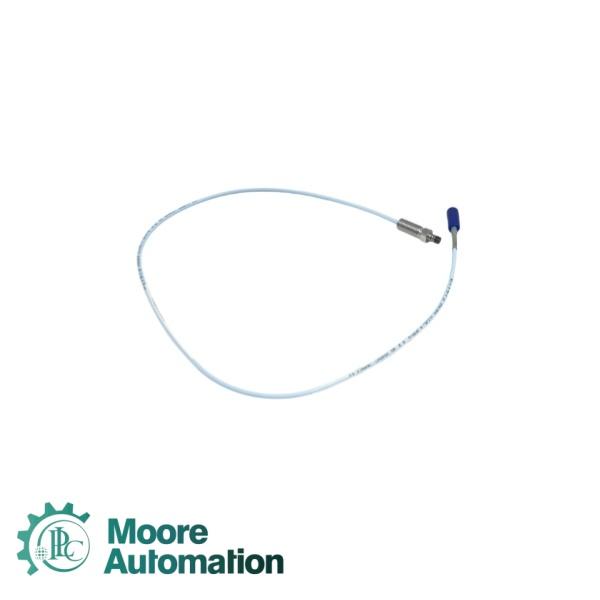

Bently Nevada 330906-02-12-10-12-05 3300 NSv Reverse Mount Probe

How to get the best price?

Yuki (Sales Manager)          ↓ Click

Email : sales6@askplc.com

Whatsapp : +86 17359287459

Product Overview

The Bently Nevada 330906-02-12-10-12-05 is a 3300 NSv (Narrow Side view) Reverse Mount Proximity Probe, designed for non-contact measurement of shaft vibration, displacement, and position in rotating machinery. It is part of Bently Nevada's 3300 XL NSv Transducer System, specifically engineered for applications where standard 5 mm and 8 mm probes cannot be installed due to counter bore, side view, or rear view restrictions. The "reverse mount" configuration allows installation from inside the machine case, providing better cable protection and a cleaner external profile.

Key Features

➙Reverse Mount  – Optimized for limited radial clearance and smaller shaft diameters. Installs from inside the machine case for better cable protection and reduced risk of cable rub in cramped skids.

➙Enhanced Chemical Resistance – Offers greater durability against chemicals compared to the older 3300 RAM probe series, making it suitable for a variety of process compressor applications.

➙Vibration-Proof ClickLoc Connector – All components use gold-plated brass ClickLoc connectors that lock in place to prevent loosening from machine vibration, ensuring reliable signal transmission in harsh industrial environments.

➙FluidLoc Cable Technology – The 12 connector option includes FluidLoc cable, which prevents oil and liquids from leaking through the cable interior – critical for applications where probe cables pass through oil-wetted machine casings.

➙Small Target Capability – Designed for shafts smaller than 51 mm (2 inches) in diameter or flat targets smaller than 15 mm (0.6 inches), where standard 5 mm and 8 mm probes cannot be used.

➙TipLoc Molding Technology – Creates an exceptionally strong bond between the probe tip and probe body, eliminating tip rotation or loosening under vibration.

➙High Temperature Rating – Operates reliably up to +177°C (351°F), suitable for turbine and compressor environments.

Technical Specifications

Total Length: 10-1.0 meter (39 in)

Connector: 12-Miniature coaxial ClickLoc connector, FluidLoc cable

Agency Approval: 05-Multiple Approvals

Total Usable Gap Range: 0.25 mm to 1.75 mm (10 to 70 mils)

Recommended Target Gap: 1.0 mm (40 mils)

Scale Factor (Average): 7.87 V/mm (200 mV/mil)

Operating Temperature (Probe): -35°C to +177°C (-31°F to +351°F)

DC Loop Resistance: 4.2 Ohms ± 0.5 Ohm

Applications
