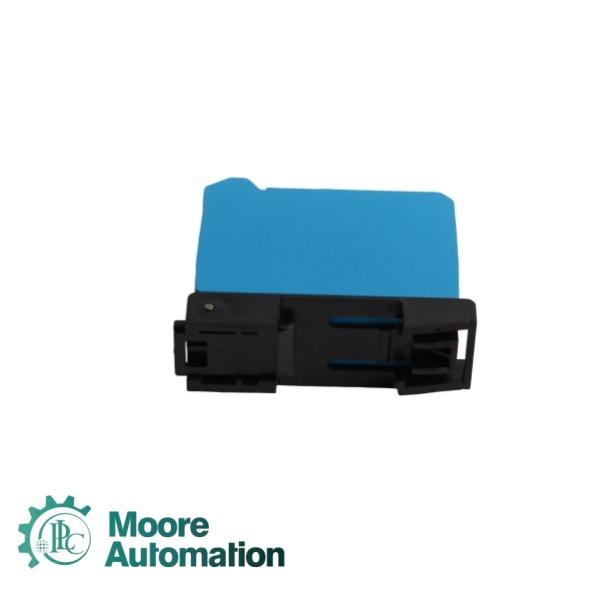

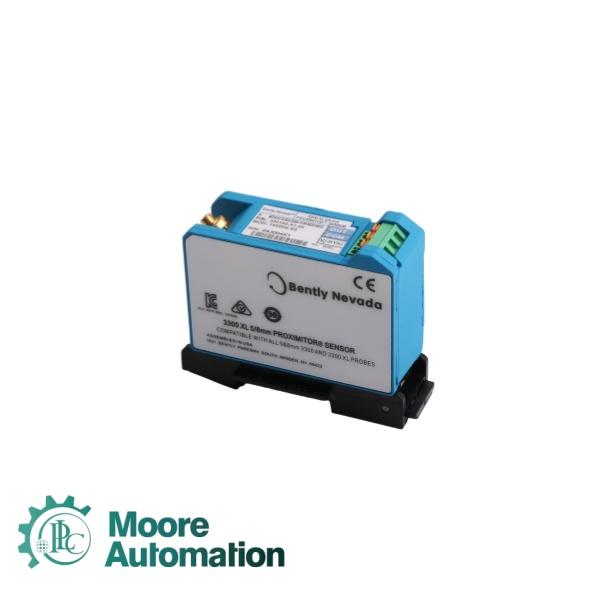

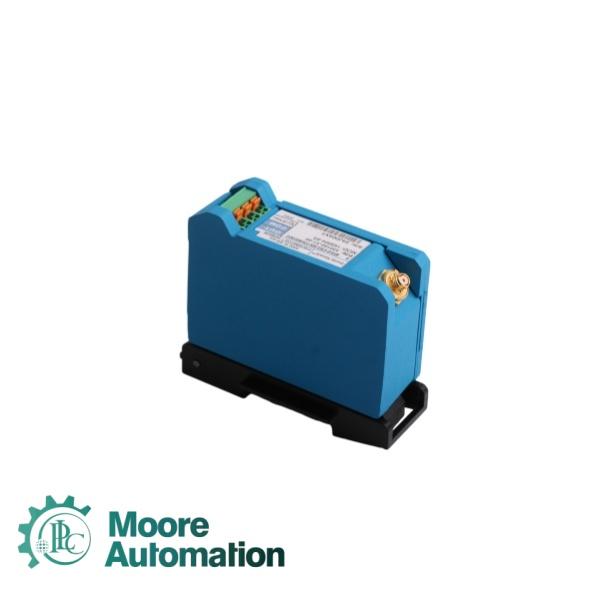

Bently Nevada 330180-x1-05 145004-64 3300 XL Proximitor Sensor

How to get the best price?

Yuki (Sales Manager)          ↓ Click

Email : sales6@askplc.com

Whatsapp : +86 17359287459

Product Overview

The Bently Nevada 330180-X1-05 3300 XL Proximitor Sensor (MOD 145004-64) is an integral component of the 3300 XL 5mm/8mm Proximity Transducer System, designed for non-contact measurement of shaft vibration, displacement, and position in rotating machinery . As the "driver" of the eddy current system, the Proximitor sensor converts the gap between the probe tip and the target surface into a linear output voltage proportional to the distance measured. This particular configuration features the X1 mounting option, which provides DIN-rail mount capability for high-density industrial control cabinet installations .

Key Features

➙DIN-Rail Mount Capability – The X1 configuration allows high-density mounting on standard DIN-rails, making it ideal for modern industrial control cabinets with limited panel space. The mounting base provides electrical isolation, eliminating the need for separate isolator plates .

➙Exceptional RFI/EMI Immunity – The Proximitor sensor is highly immune to radio frequency interference, allowing installation in fiberglass housings without adverse effects from nearby RF signals. This improved immunity satisfies European CE mark approvals without requiring special shielded conduit or metallic housings, resulting in lower installation costs and reduced complexity .

➙SpringLoc Terminal Strips – These require no special installation tools and facilitate faster, more robust field wiring connections by eliminating screw-type clamping mechanisms that can loosen due to vibration .

➙Complete Component Interchangeability – Probes, extension cables, and Proximitor sensors within the 3300 XL system are fully interchangeable without the need for matching or bench calibration, significantly simplifying maintenance and replacements .

➙MOD 145004-64 Configuration – This modification code indicates a specific calibration setup for optimized performance with particular target materials, ensuring accurate measurements based on material properties .

Technical Specifications

Total Length and Mounting: x1 - X1 Modification, DIN Mount

Agency Approval: 05 - Multiple Approvals (CSA, ATEX, IECEx, etc.)

Target Material Calibration: 64 - Target Material SNC 815

Power Supply Requirement: -17.5 Vdc to -26 Vdc, maximum 12 mA consumption

Supply Sensitivity: Less than 2 mV change in output voltage per volt change in input voltage

Output Resistance: 50 Ω

Linear Range: 2 mm– from 0.25 mm to 2.3 mm

Incremental Scale Factor: 7.87 V/mm ± 5% (standard system)

Recommended Gap Setting: 1.27 mm for radial vibration measurement

Operating Temperature (Sensor): -35°C to +100°C

Storage Temperature: -52°C to +105°C

Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft) typical
