Performance Specifications
Unthreaded Length Option
0.0 in
Overall Case Length Option
9.0 in
Cable Length Option
1.0 meter (39 in)
Connector and Cable Option
Miniature coaxial ClickLoc connector with connector protector, standard cable
Agency Approval Option
Multiple Approvals
Probe Case Thread
1/4-28 UNF thread
Maximum Length of Thread Engagement
0.375 in
Probe Temperature Range
-52°C to +177°C (-62°F to +351°F)
Storage Temperature
-52°C to +177°C (-62°F to +351°F)
Probe Tip Material
Polyphenylene sulfide (PPS)
Probe Case Material
AISI 304 stainless steel (SST)
Field Wiring
0.2 to 1.5 mm² (16 to 24 AWG); 0.25 to 0.75 mm² (18 to 23 AWG) with ferrules
Linear Range
1.5 mm (60 mils)
Recommended Gap Setting
1.0 mm (40 mils)
Output Resistance
50 Ω
Supply Sensitivity
Less than 2 mV change in output voltage per volt change in input voltage
|

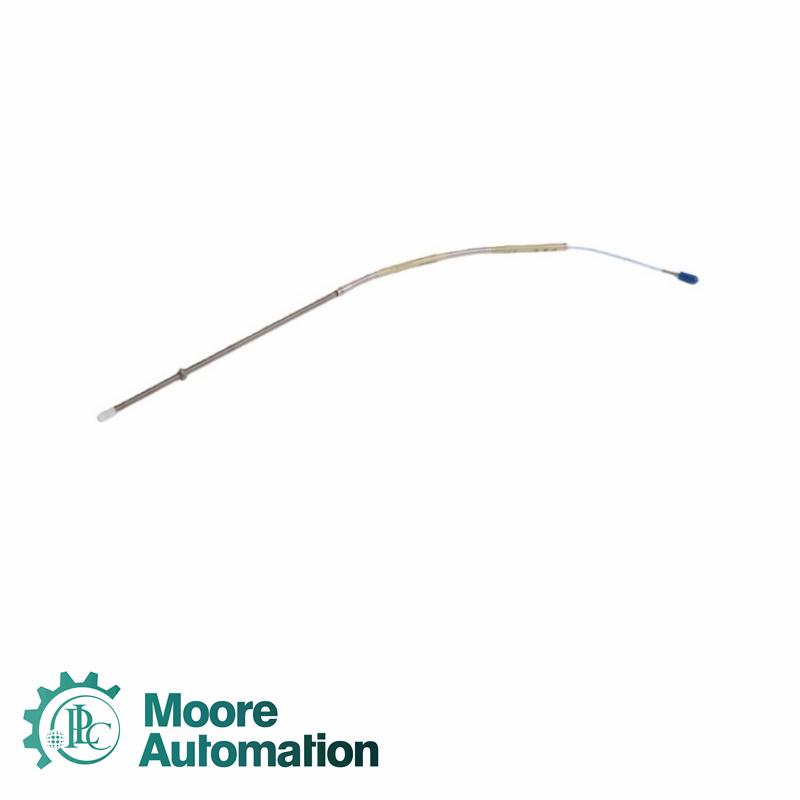

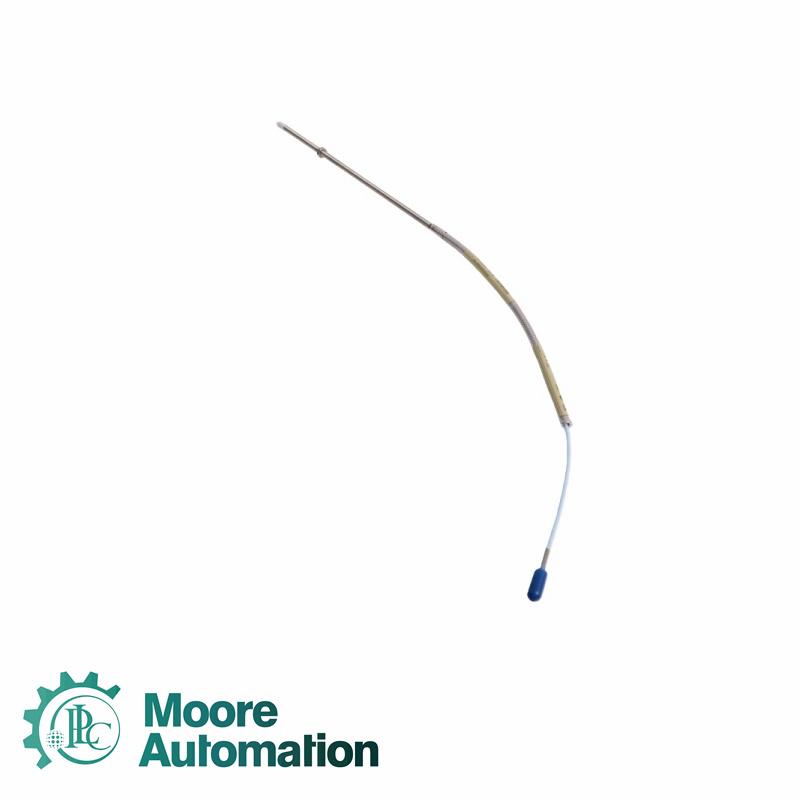

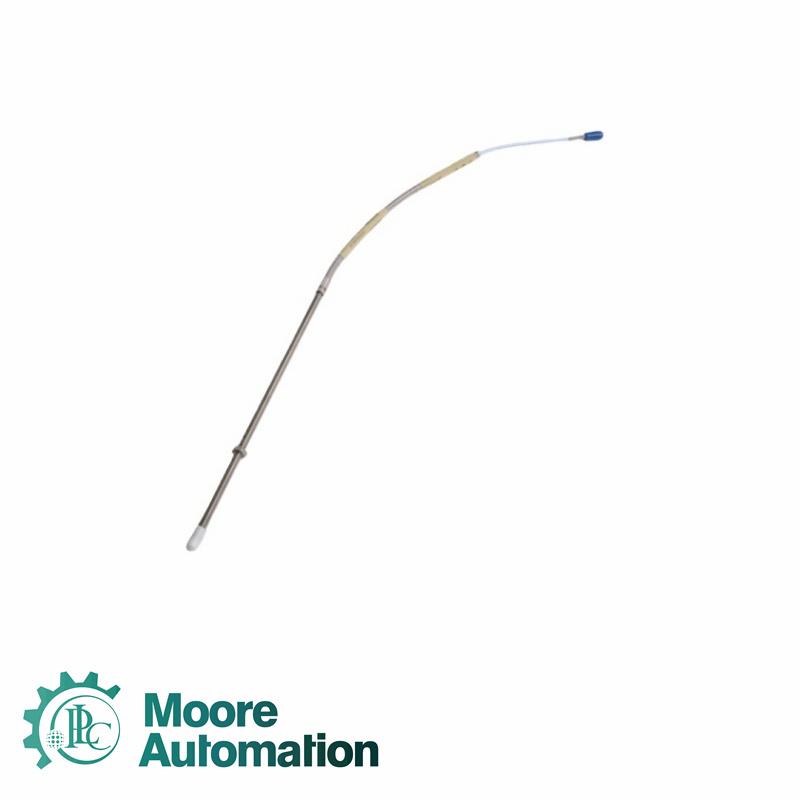

330902-00-90-10-01-05 3300 NSv Proximity Probe |
The 3300 XL NSv Proximity Transducer system is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with tight installation requirements. The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems.
Frequently Asked Questions
Q: What is the design purpose of 330902-00-90-10-01-05, and how does it differ from standard 8mm probes?
A: It is an NSv (Narrow Gap) series probe with a smaller tip diameter, specially designed for shaft vibration or displacement monitoring in compact spaces, small targets, and small shaft diameters (such as centrifugal air compressors and refrigeration compressors).
Q: What is the integral cable length of 330902-00-90-10-01-05?
A: Option 10 represents a probe integral cable total length of 1.0 meters (3.3 feet).
Q: What cable connector process is represented by “01” in model 330902-00-90-10-01-05?
A: 01 represents a cable equipped with a Miniature coaxial ClickLoc connector with a connector protector.
Q: Can the suffix “05” allow 330902-00-90-10-01-05 to be directly installed in factory hazardous explosion-proof areas?
A: Yes, 05 represents that Multiple Agency Approvals have been obtained, and compliance with Intrinsic Safety explosion-proof standards is provided.
Q: What is the standard mechanical installation thread specification of this 330902-00-90-10-01-05?
A: As an 330902 imperial basic model, it is standard equipped with a 3/8-24 UNF imperial thread and does not include metal armored protection.
Applicaiton
Oil & Gas Refineries: Compact probes for chemical pumps, shielded pumps, and gearbox shafts in tight spaces.
Hydrogen & Air Separation Plants: Precision shaft runout monitoring for high-speed expanders and compressors.
Paper Mills: Detecting small vibration trends on high-speed dryer and roll bearings.
Fertilizer & Ammonia Plants: Condition monitoring for CO₂ pumps, carbamate pumps, and auxiliary turbines.
District Heating Plants: Vibration monitoring for feed pumps, circulating pumps, and blowers in CHP units.
