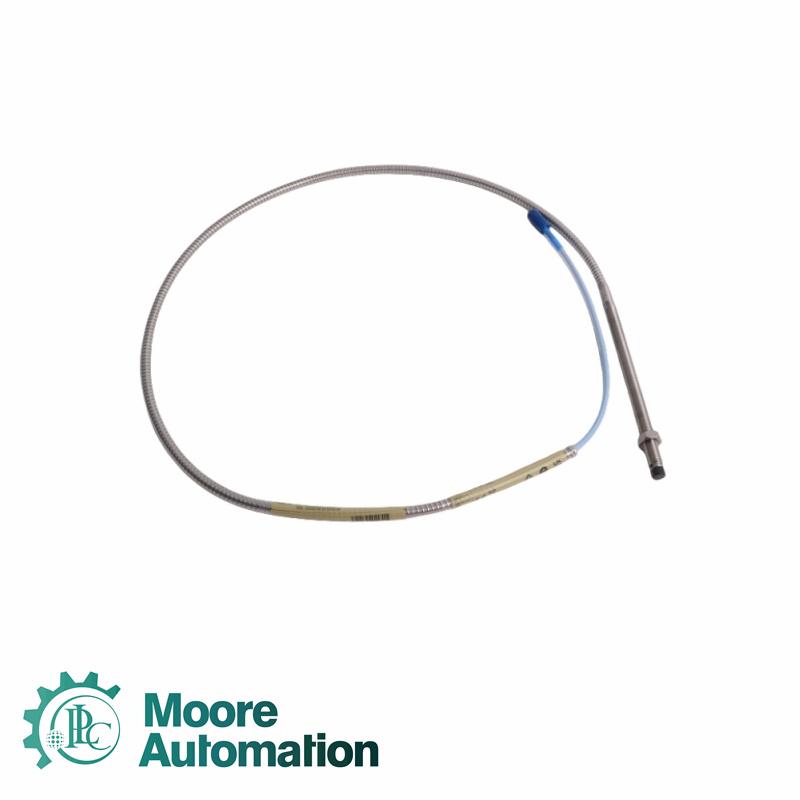

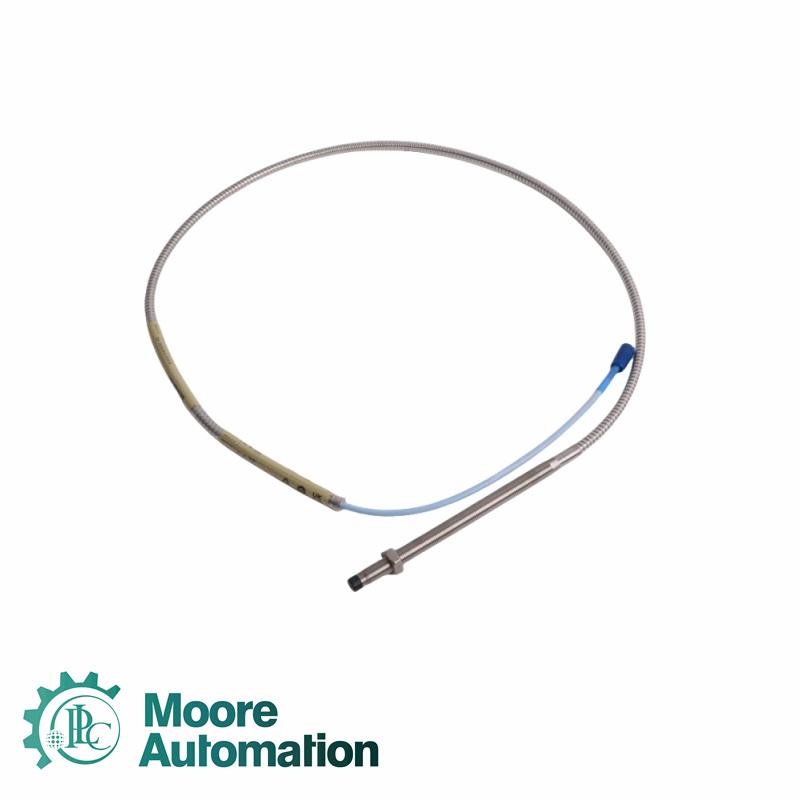

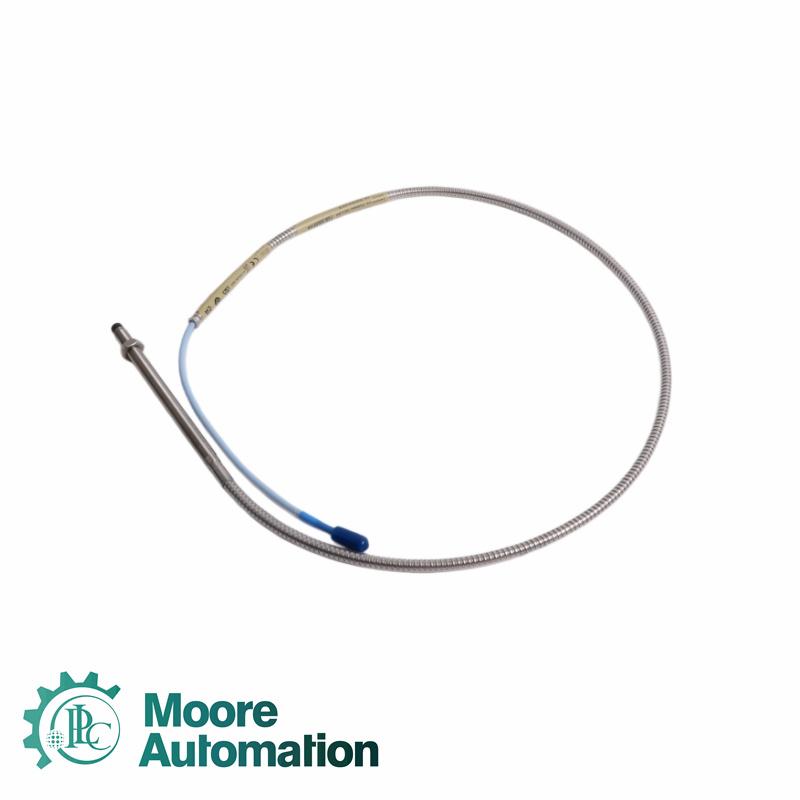

Bently Nevada 330102-00-52-10-01-05 3300 XL 8 mm Proximity Probe

Performance Specifications

The 3300 XL 8 mm Proximity Transducer System provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements. The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems.

Frequently Asked Questions

Q: What is the core function of 330102-00-52-10-01-05, and how does it differ from standard probes?
A: A reverse mount probe is provided, with the thread located at the rear of the probe. It is typically used with 31000 series protection housing assemblies, enabling external installation, removal, and gap adjustment from outside the machine casing.

Q: What is the integral cable length of 330102-00-52-10-01-05?
A: Option 10 represents a probe integral cable total length of 1.0 meters (3.3 feet).

Q: What connection option is represented by “01” in model 330102-00-52-10-01-05?
A: 01 represents a cable equipped with a Miniature coaxial ClickLoc connector without a connector protector.

Q: What type of field safety protection is provided by suffix “05” in 330102-00-52-10-01-05?
A: 05 represents that the probe has obtained Multiple Agency Approvals for hazardous area explosion protection, is an Intrinsic Safety device, and is suitable for hazardous areas.

Q: What is the probe tip diameter and standard measurement range?
A: It belongs to the 8mm probe series, with a nominal linear measurement range of 2.0 mm (80 mils) under standard calibration.

Applicaiton

Power Plants: Installed on 50MW–1000MW turbines, generators, pumps, and fans for shaft vibration and thrust monitoring.

Petrochemical Refineries: Protecting compressors, blowers, and high-power pumps in FCC, hydrocracking, and ethylene units.

Coal Gasification Plants: Oil-film vibration monitoring for air units, pumps, and reciprocating compressors.

Gas Pipeline Stations: Measuring shaft eccentricity, speed (key phase), and bearing wear on gas compressors.
