Specification Highlights |
|
|
Unthreaded Length Option |
0.5 in |
|
Overall Case Length Option |
6.5 in |
|
Cable Length Option |
0.5 meter (20 in) |
|
Connector and Cable Option |
Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable |
|
Agency Approval Option |
Multiple Approvals |
|
Probe Case Thread |
1/4-28 UNF thread |
|
Maximum Length of Thread Engagement |
0.375 in |
|
Probe Temperature Range |
-52°C to +177°C (-62°F to +351°F) |
|
Storage Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
Probe Tip Material |
Polyphenylene sulfide (PPS) |
|
Probe Case Material |
AISI 304 stainless steel (SST) |
|
Field Wiring |
0.2 to 1.5 mm² (16 to 24 AWG); 0.25 to 0.75 mm² (18 to 23 AWG) with ferrules |
|
Linear Range |
1.5 mm (60 mils) |
|
Recommended Gap Setting |
1.0 mm (40 mils) |
|
Output Resistance |
50 Ω |
|
Supply Sensitivity |
Less than 2 mV change in output voltage per volt change in input voltage |
Overview of the Product

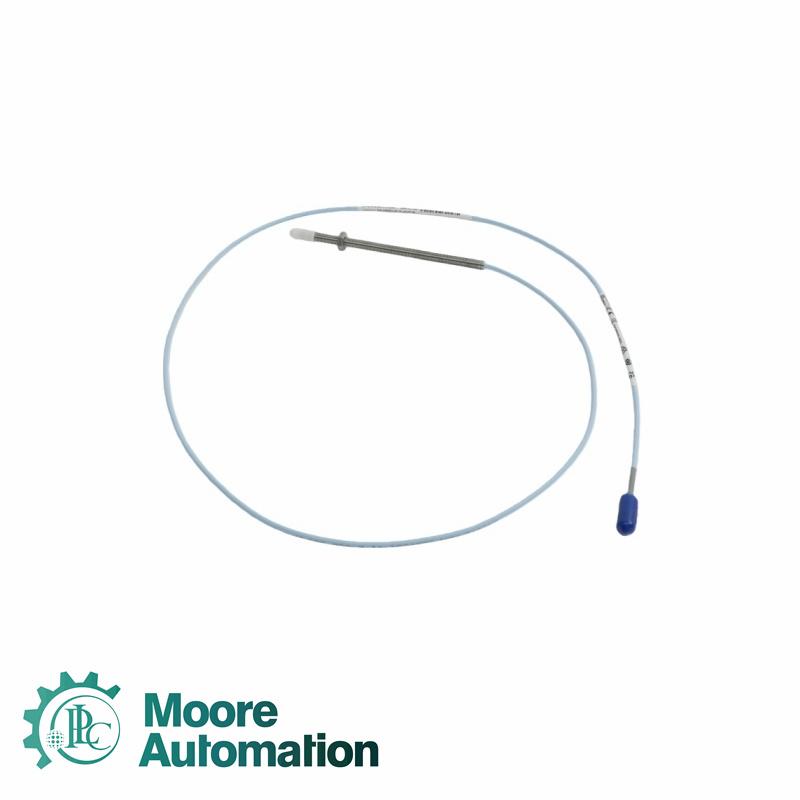

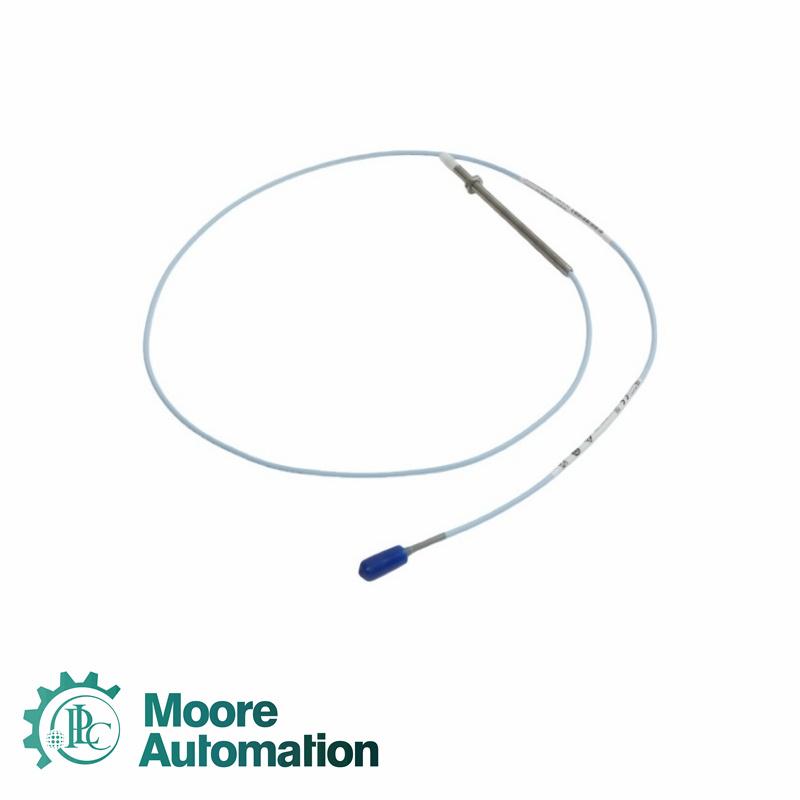

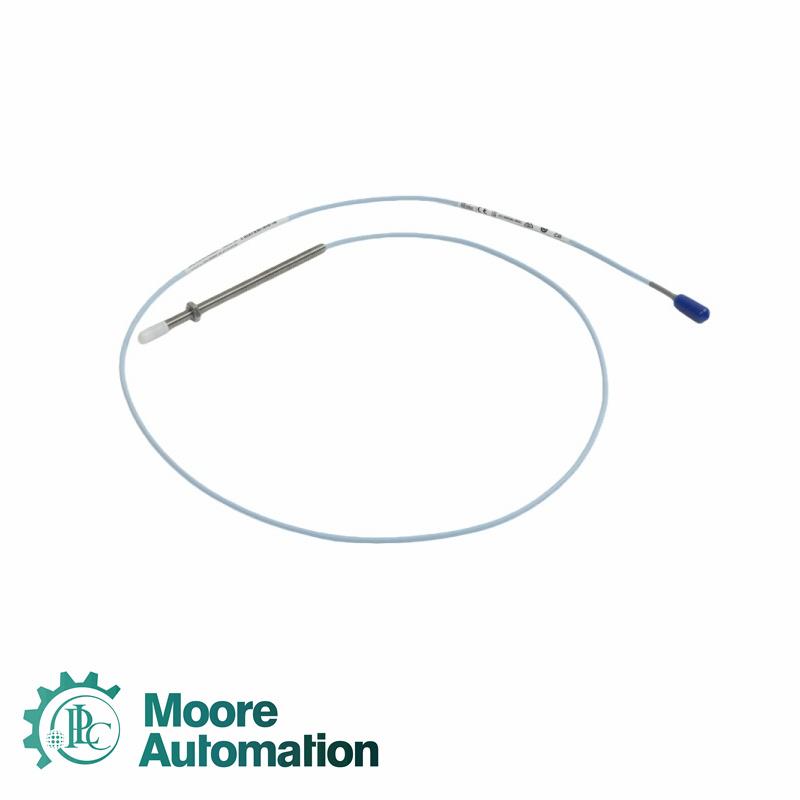

The 3300 XL NSv Proximity Transducer system is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with tight installation requirements. The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems.
|
◆Best Price,Good price within limited time |
John Yang Email: sales3@askplc.com Mobile(WhatsApp): 86-18150117685 |
|
◆Fast Delivery&One Year Warranty |
|
|
◆24/7Service & Free Online Quotes |
Applicaiton
Oil Refining Plants: Used on pumps and small compressors for early mechanical fault detection.
Large Fertilizer Plants: Monitors shaft movement of compact steam turbine-driven equipment.
Fluid Machinery Manufacturers: Applied to high-speed compressors and pumps for condition monitoring and testing.
Industrial Gas Plants: Used in compact CO₂ and hydrogen equipment with reliable operation in tight spaces.
Fine Chemical Plants: Measures micron-level displacement and key phase speed of high-speed shafts.
Frequently Asked Questions
Q: What are the thread specifications and housing type of this eddy current probe 330901-05-65-05-11-05?
A: It uses a 3/8-24 UNF imperial thread and is a standard housing design without reverse mounting (unarmored).
Q: What length of extension cable should be selected of the 330901-05-65-05-11-05 probe?
A: A 4.5-meter 3300 NSv extension cable is required to achieve the 5.0-meter system length.
Q: What are the probe body length and total cable length for model 330901-05-65-05-11-05?
A: Provided are a 0.5-inch probe body and a 0.5-meter unarmored cable.
Q: What are the characteristics of the connector at the cable end of this 330901-05-65-05-11-05 model, and is anti-loosening required?
A: This model is equipped with a small coaxial connector with a coaxial central connector lock (Connector Protector), providing excellent vibration resistance and anti-loosening capabilities.
Q: Are there any special institutional certification requirements for the model selection suffix?
A: The 05 suffix indicates compliance with multiple international certifications, including ATEX/IECEx for hazardous areas.
|
