Specification Highlights |
|
|
Dimension |
37 × 9 × 8 cm |
|
Weight |
1.5 kg |
|
Probe with Connector |
Probe not required |
|
Probe Cable Length |
Probe cable not required (Option A must also be 00) |
|
Standoff Adapter Length (Option C Dimension) |
Minimum length 1.5 in (38 mm) |
|
Probe Penetration Option (Option D Dimension) |
4.7 in |
|
Fittings |
One 3/4-14 NPT fitting, two plugs |
|
Mounting Thread Option |
3/4-14 NPT (Required if ordering Standoff Adapter Option) |
|
Protection Ratings |
Type 4X rating certified by Canadian Standards Association (CSA) |
|
Housing Material |
Glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic containing conductive fibers |
|
Sleeve Material and Retaining Chain |
AISI 304 stainless steel |
|
Outer Sleeve and Exterior Screws |
AISI 303 stainless steel |
|
O-Ring Material |
Neoprene |
|
Recommended Torque (Retaining Nut) |
29.4 N·m (260 in·lb) |
|
Housing Strength (Typical) |
Outer sleeve was mounted on a test stand with its axis parallel to horizontal and the housing mounted on the outer sleeve through an end hole |
|
Housing Impact Strength |
Certified by BASEEFA to withstand two separate 4 Joule (3.0 ft·lb) impacts at -39°C (-38°F) and at 115°C (239°F) |
Overview of the Product

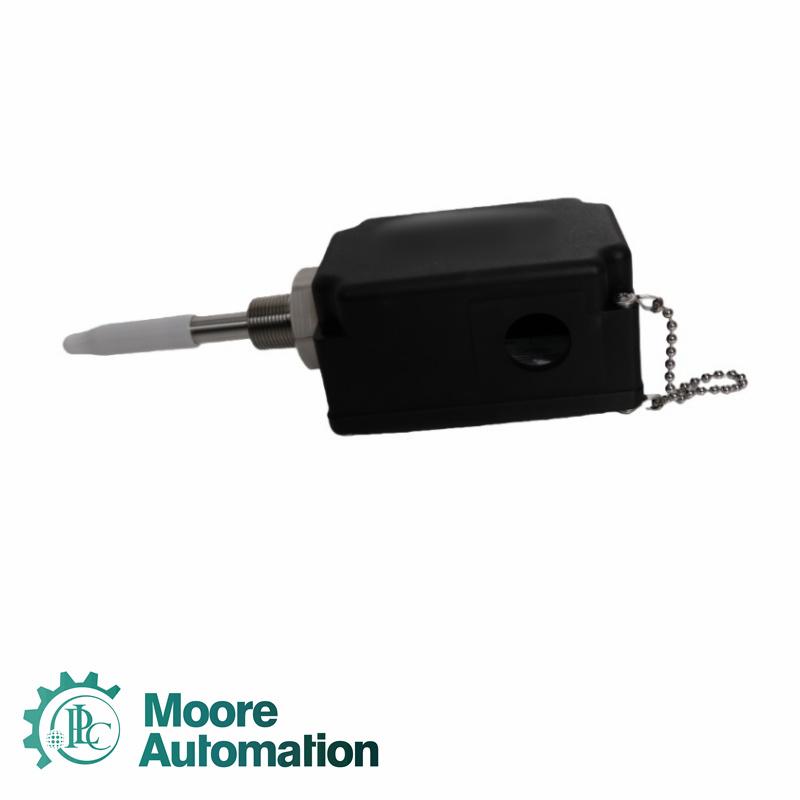

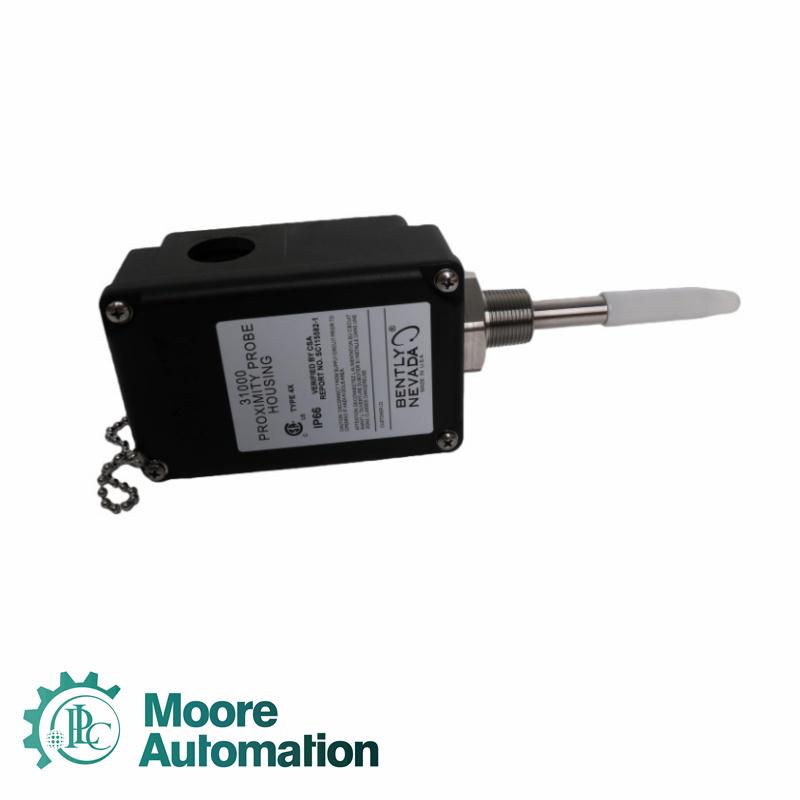

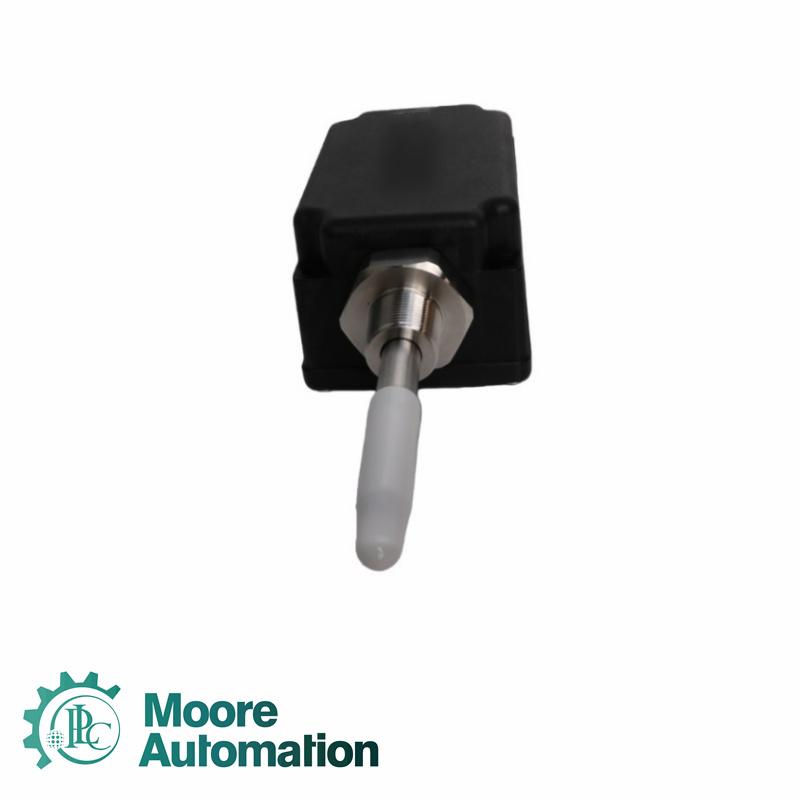

The 31000/32000 Proximity Probe Housing Assemblies are recommended when mounting proximity probes through the machine case and are typically used for radially mounted transducers, whether vibration or Keyphasor measurements. Use of a Proximity probe housing allows external access to the proximity probe and its extension cable, permitting gap adjustment or probe replacement without disassembly of the machine. The 31000/32000 Proximity Probe Housing Assembly is made of polyphenylene sulfide (PPS), an advanced, high-strength, thermoplastic with excellent corrosion resistance.
|
◆Best Price,Good price within limited time |
John Yang Email: sales3@askplc.com Mobile(WhatsApp): 86-18150117685 |
|
◆Fast Delivery&One Year Warranty |
|
|
◆24/7Service & Free Online Quotes |
Applicaiton
Power Plants: Installed on turbine bearings, fans, and pumps to protect probes from ash and heat while allowing easy adjustment.
Oil Refining Plants: Used on compressors and blowers; PPS material resists oil gas and H₂S corrosion.
Hydropower Plants: Installed on turbine bearing housings to block oil and moisture contamination during shaft monitoring.
LNG Plants: Mounted on compressor and pump housings to protect displacement probes in cold and wet environments.
Coal-to-Liquid Gasification Plants: Applied to rotating equipment gearboxes to protect sensors from dust and heat damage.
Frequently Asked Questions
Q: What type of wiring conduit fittings does this 31000-00-00-15-047-01-02 protective box use?
A: Code "01" indicates a single M25 threaded interface and two plugs for the introduction and sealing of external wiring conduits.
Q: Can external air or internal media leak through the conduit of 31000-00-00-15-047-01-02?
A: This component features a Viton O-ring between the sleeve and the external connector to prevent oil or gas from leaking into the protective housing through the sleeve.
Q: After installing 31000-00-00-15-047-01-02, how can the gap of the internal probe be adjusted without disassembling the machine housing?
A: By loosening the external threadless sleeve locking sleeve, a depth adjustment within ±13 mm (±0.5 inches) is possible externally.
Q: If a 3300 XL series probe needs to be installed in model 31000-00-00-15-047-01-02, what probe diameter does this protective housing support?
A: The internal mechanical structure of this protective housing supports the installation of 8 mm or 11 mm reverse-mount eddy current probes.
Q: What is the surface resistivity of the glass fiber reinforced polyphenylene sulfide (PPS) dome housing of the probe?
A: An anti-static design with low surface resistivity is featured to prevent static charge accumulation in hazardous environments.
|
