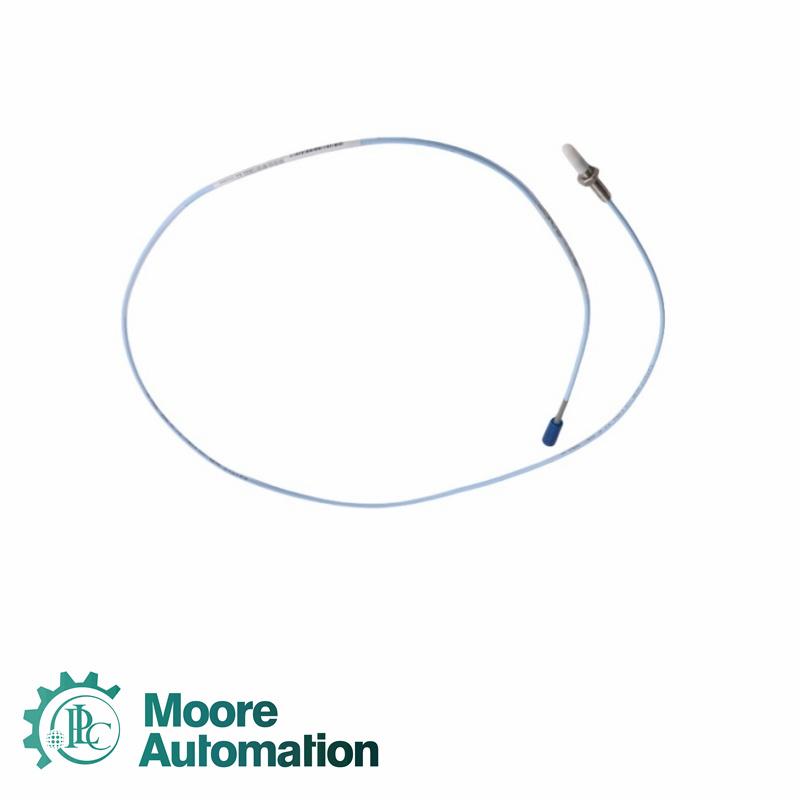

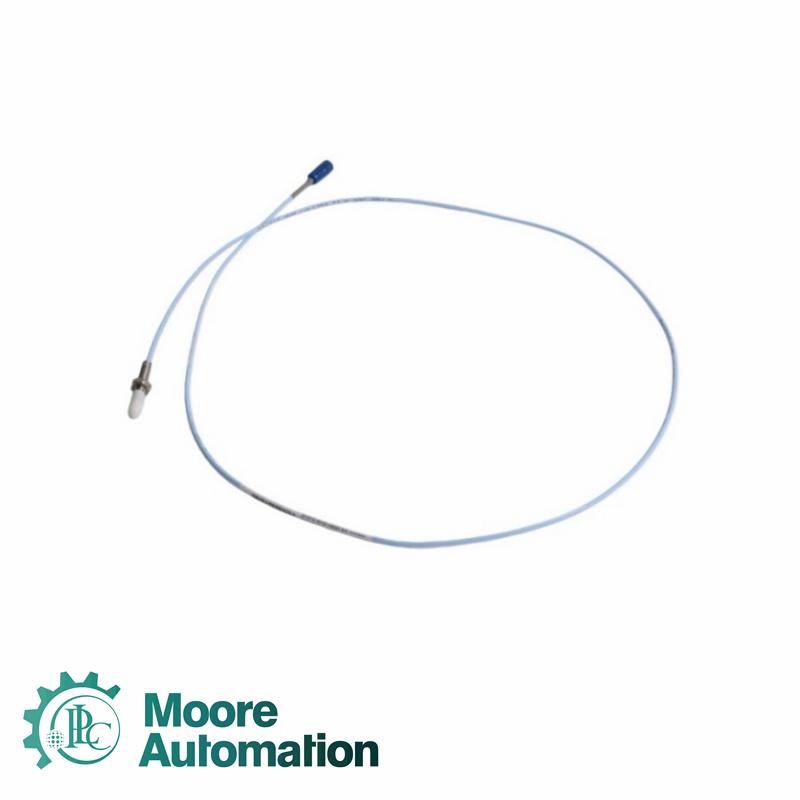

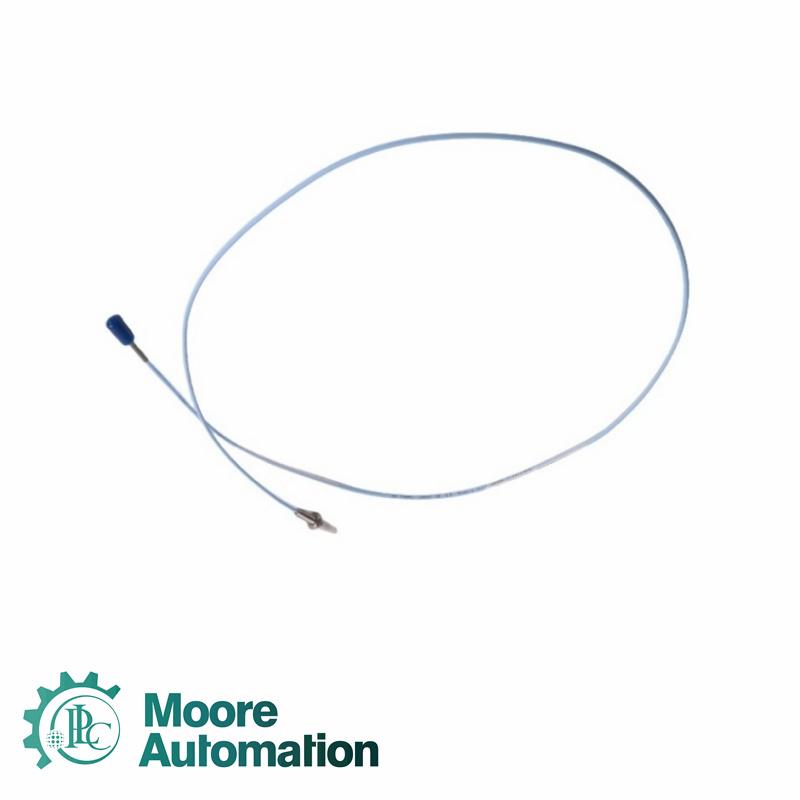

Bently Nevada 330901-00-10-02-00-02 3300 NSv Proximity Probe

How can I contact you?

John Yang--five stars service

Email: sales3@askplc.com

Mobile(WhatsApp): 86-18150117685

What is a brief introduction to the product?

The 3300 XL NSv Proximity Transducer system is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with tight installation requirements. The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in). It is primarily used in the following applications on fluid-filmed bearing machines where a small shaft or reduced side-view is present: Radial vibration and radial position measurements ；Axial (thrust) position measurements ；Tachometer and zero speed measurements ；Phase reference (Keyphasor signals) The 3300 XL NSv Transducer System design allows it to replace both the 3300 RAM Transducer Systems and the 3000-series or 7000-series 190 Transducer System. Upgrades from the 3300 RAM system to the 3300 XL NSv system may use the existing probe, extension cable, and monitoring system with 3300 XL NSv Proximitor Sensor.

What are the product details?

Unthreaded Length Option

0.0 in

Overall Case Length Option

1.0 in

Cable Length Option

0.5 meter (20 in)

Connector and Cable Option

Miniature coaxial ClickLoc connector, standard cable

Agency Approval Option

Multiple Approvals

Probe Case Thread

1/4-28 UNF thread

Maximum Length of Thread Engagement

0.375 in

Dimension

1.3x1.1x116 cm

Weight

0.05 kg

Probe Temperature Range

-52°C to +177°C (-62°F to +351°F)

Storage Temperature

-52°C to +177°C (-62°F to +351°F)

Probe Tip Material

Polyphenylene sulfide (PPS)

Probe Case Material

AISI 304 stainless steel (SST)

Field Wiring

0.2 to 1.5 mm² (16 to 24 AWG) [0.25 to 0.75 mm² (18 to 23 AWG) with ferrules]

Linear Range

1.5 mm (60 mils)

Recommended Gap Setting

1.0 mm (40 mils)

Output Resistance

50 Ω

Supply Sensitivity

Less than 2 mV change in output voltage per volt change in input voltage

Unthreaded Length Option

0.0 in

Key points you might want to know

Q: What is the 330901-00-10-02-00-02?
A: It is a 3300 NSv Proximity Probe .

Q: Is  330901-00-10-02-00-02 new or refurbished?
A: All our products are original new with 1 year warranty.

Q: How many days the 330901-00-10-02-00-02 will arrive my hands if I place the order now?
A: As soon as we receive the payment, I will ship the products immediately.
It usually take 3-5 days from China to your hands.

Q:Can you ship the 330901-00-10-02-00-02 to my country?
A: Please don't worry ,We can ship the goods to worldwide.
