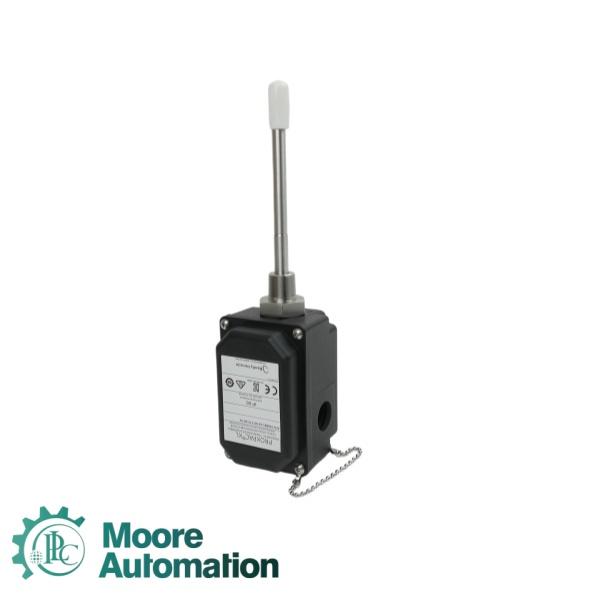

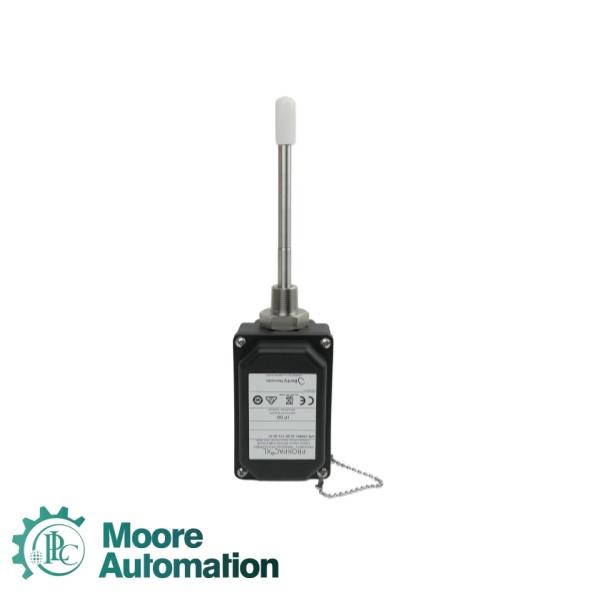

Bently Nevada 330881-28-10-090-03-02 PROXPAC XL Proximity Transducer

 We stand by 100% authentic products for every order

Probe and Approvals:28-3300 XL 8 mm probe with Multiple Approvals

Standoff Adapter: 10-100mm

Probe Penetration: 090-90mm

Fittings: 03-One M20 fitting, two plugs

Mounting Thread: 02-3/4-14 NPT (required if ordering Standoff Adapter Option)

Cable Type: 75 Ω triaxial, FEP-insulated

Connector Type: Gold-plated brass ClickLoc™ connector

Temperature Range (Operating): -51°C to +177°C (-60°F to +350°F)

Input Voltage (without barriers): -17.5 Vdc to -26 Vdc

Input Voltage (with barriers): -23 Vdc to -26 Vdc

Supply Sensitivity: < 2 mV change in output voltage per volt change in input voltage

Output Resistance: 50 Ω

Maximum Power Consumption: 12 mA

Recommended GAP Voltage: -10 Vdc

 Features

·The 330881 PROXPAC XL combines the probe, extension cable, and Proximitor sensor into a single, sealed package . This integrated design eliminates separate extension cables and Proximitor housings, reducing installation complexity and potential points of failure.

·The housing is rated Type 4X and IP66, providing excellent protection against water, dust, and corrosion . The housing is made of Polyphenylene Sulfide (PPS), an advanced thermoplastic reinforced with glass and conductive fibers to dissipate electrostatic charges .

·The transducer operates reliably from -51°C to +177°C (-60°F to +350°F) , making it suitable for extreme industrial environments including high-temperature turbine casing applications .

·The transducer utilizes the eddy current principle to measure both static (position) and dynamic (vibration) values of rotating machinery by measuring the gap between the probe tip and a conductive surface .

·The 3300 XL Proximitor Sensor features improved immunity to radio frequency and electromagnetic interference, satisfying European CE mark approvals without requiring special shielded conduit or metallic housings .

 Application

 FAQ

 Q1: What is Bently Nevada known for?

A1: Bently Nevada is known for being a global leader in machinery protection and condition monitoring systems for critical rotating equipment.

Q2: What industries does Bently Nevada serve?

A2: Oil & gas, power generation, chemical processing, mining, and pulp & paper industries.

Q3: What types of measurements do Bently Nevada products provide?

A3: Vibration, axial position, speed, eccentricity, temperature, and casing expansion monitoring.

Q4: Are Bently Nevada products compliant with international standards?

A4: Yes, they comply with API 670, IEC, ISO, ATEX, CSA, and IECEx standards.

Q5: What is the 3500 monitoring system?

A5: The 3500 system is a rack-based machinery protection system that provides continuous online monitoring, alarm detection, and relay outputs for machine shutdown.
