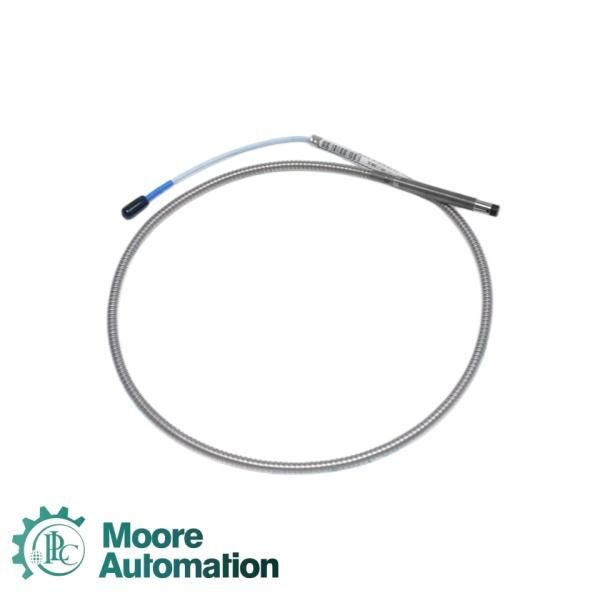

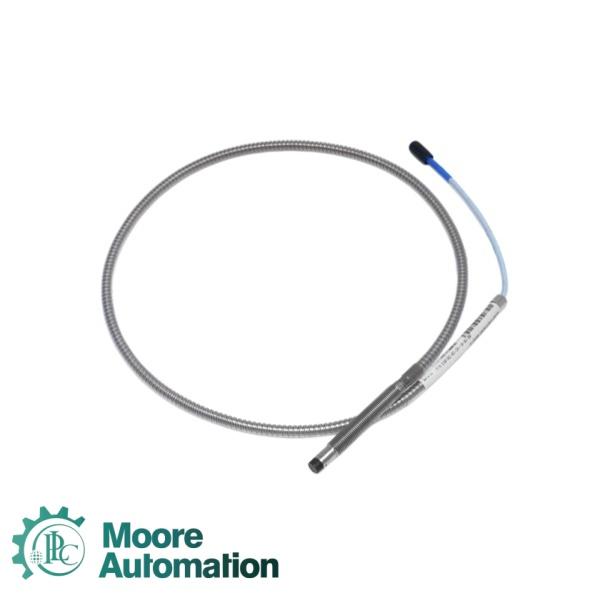

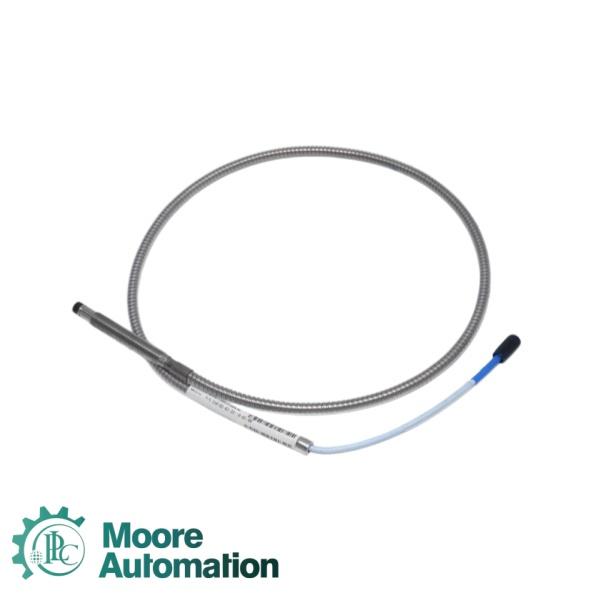

Bently Nevada 330102-24-72-10-02-00 3300 XL 8 mm Proximity Probes

 We stand by 100% authentic products for every order

Unthreaded Length: 24 - 2.4in

Overall Case Length: 72 - 7.2in

Total Length: 10 - 1.0 meter (3.3 feet)

Connector and Cable-Type: 02-Miniature coaxial ClickLoc connector, standard cable

Agency Approval: 00-Not required

DC Resistance (1.0m cable): 7.59 Ω ±0.50

Capacitance: 69.9 pF/m (21.3 pF/ft)

Linear Range: 0.25–2.3 mm (10–90 mils)

Incremental Scale Factor: 7.87 V/mm (200 mV/mil) ±5%

Output Voltage Range: Approximately -1 Vdc to -17 Vdc over linear range

Recommended Gap Setting (Radial Vibration): -9 Vdc (approximately 1.27 mm / 50 mils)

Operating Temperature (Probe & Cable): -52°C to +177°C (-62°F to +350°F)

Extended Temperature (Probe Tip Only): -52°C to +218°C (-62°F to +425°F)

Extended Temperature (Cable & Connector): -51°C to +260°C (-60°F to +500°F)

 Features

·The probe is equipped with gold-plated ClickLoc™ coaxial connectors that are corrosion-resistant . These connectors require only finger-tight torque (audible "click" confirms tightness), and the specially engineered locking mechanism prevents loosening from vibration, eliminating the need for tools during installation.

·The Bently Nevada 330102-24-72-10-02-00 features the "330102" base model, which indicates with armor construction. The probe case is made of AISI 303 or 304 stainless steel (SST) , providing enhanced mechanical protection in harsh industrial environments.

·All 3300 XL 8 mm system components (probes, extension cables, and Proximitor sensors) are fully interchangeable without the need for individual matching or bench calibration . This simplifies maintenance, reduces spare parts inventory, and eliminates the need for factory calibration when replacing individual components.

·The probe utilizes the eddy current principle to measure both static (position) and dynamic (vibration) values of rotating machinery by measuring the gap between the probe tip and a conductive surface .

·The probe is rated for reliable operation over an extended temperature range: -52°C to +177°C (-62°F to +350°F) for the standard probe and cable configuration . The probe tip can withstand even higher temperatures up to +218°C (+425°F).

·The 3300 XL Proximitor Sensor features improved immunity to radio frequency and electromagnetic interference, satisfying European CE mark approvals without requiring special shielded conduit or metallic housings.

·The probe provides a linear output voltage (approximately -1 Vdc to -17 Vdc) proportional to the gap distance over its linear range of 0.25–2.3 mm (10–90 mils) . The recommended gap setting for radial vibration measurements is -9 Vdc (approximately 1.27 mm / 50 mils).

 Application

 FAQ

 Q1: What is Bently Nevada known for?

A1: Bently Nevada is known for being a global leader in machinery protection and condition monitoring systems for critical rotating equipment.

Q2: What industries does Bently Nevada serve?

A2: Oil & gas, power generation, chemical processing, mining, and pulp & paper industries.

Q3: What types of measurements do Bently Nevada products provide?

A3: Vibration, axial position, speed, eccentricity, temperature, and casing expansion monitoring.

Q4: Are Bently Nevada products compliant with international standards?

A4: Yes, they comply with API 670, IEC, ISO, ATEX, CSA, and IECEx standards.

Q5: What is the 3500 monitoring system?

A5: The 3500 system is a rack-based machinery protection system that provides continuous online monitoring, alarm detection, and relay outputs for machine shutdown.
