Here is the information about Bently Nevada 330881-28-04-105-00-02
Specifications
Probe and approvals option
3300 XL 8 mm probe with multiple approvals
Standoff adapter option (B dimension)
40 mm
Probe penetration option (C dimension)
105 mm
Fittings option (supplied as kit)
No fittings; two plugs and two washers
Mounting thread option
3/4-14 NPT (required if ordering standoff adapter option)
Dimensions
36.5x9x9.3cm
Weight
1.5 kg
Supply sensitivity
<2 mV change in output per 1 V change in input
Output resistance
50 Ω
Field wiring
0.2 to 1.5 mm² (16 to 24 AWG)
Linear range
2 mm (80 mils)
Recommended gap setting
1.27 mm (50 mils)
Shaft diameter minimum
50.8 mm (2.0 in)
Shaft diameter recommended
76.2 mm (3.0 in)
Housing rating
IP66 (verified by BASEEFA report T07/0709)
Operating temperature
-52°C to +100°C (-62°F to +212°F)
Storage temperature
-52°C to +105°C (-62°F to +221°F)
Product Description

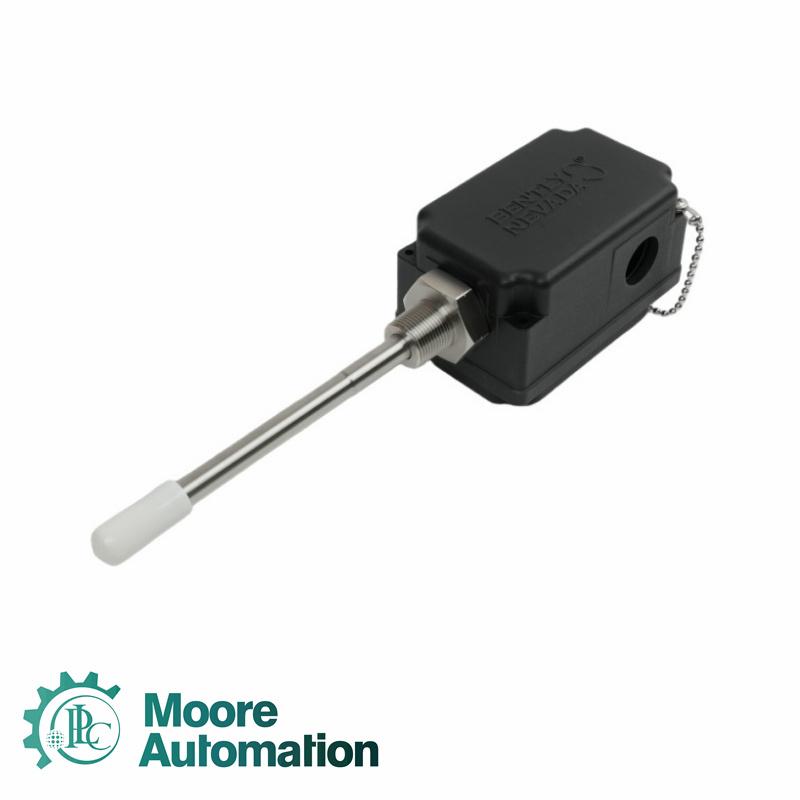

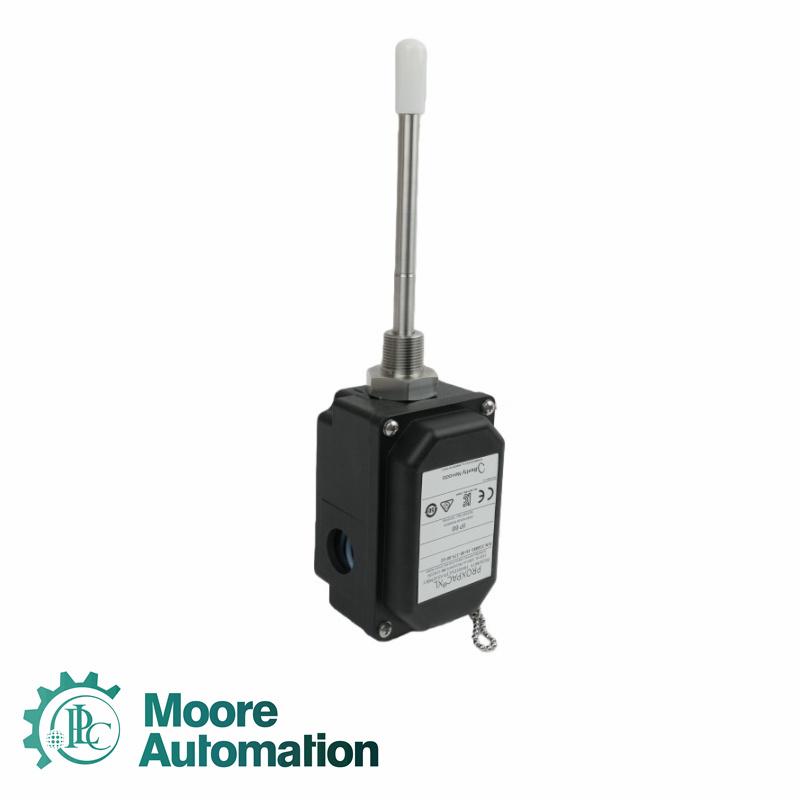

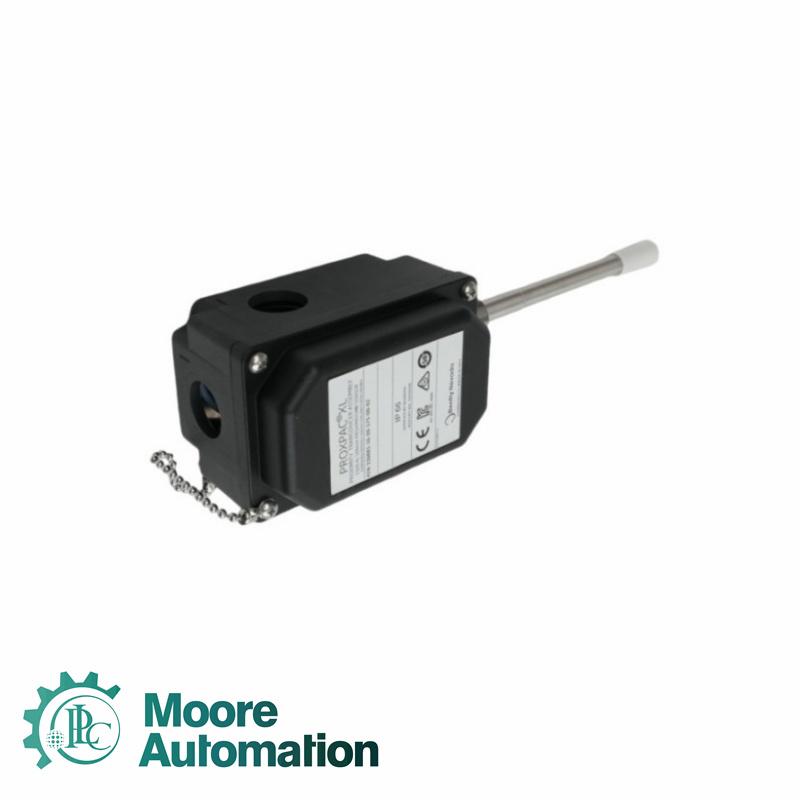

The design of the PROXPAC XL Proximity Transducer Assembly is similar to our 31000/32000 Proximity Probe Housing Assemblies. The assembly offers the same advantages and features as the 31000 and 32000 housings for accessing and externally adjusting proximity probes. However, the housing cover of the PROXPAC XL Assembly also contains its own 3300 XL Proximitor sensor.
Application
Petroleum Refining Plants: Used for axial displacement monitoring of large centrifugal compressors, where a 105 mm depth allows the probe to pass through thick equipment housings.
Combined Cycle Power Plants: Installed on turbine auxiliary pump bearing housings, with IP66 protection ensuring long-term operation in environments with steam and oil mist.
Large Wastewater Treatment Plants: Used for radial vibration monitoring of large blower bearings, where rod-extension design effectively isolates external casing vibration interference.
Paper Pulp Manufacturing Plants: Applied on large rotating sections of paper machines, using a 40 mm rod adapter to bypass complex frame structures and accurately reach monitoring points.
Frequently Asked Questions
Q: Why is a 40 mm extension rod adapter needed for the 330881-28-04-105-00-02?
A: It increases the distance between housing and casing, enabling safer wiring and protecting cables from external mechanical pressure.
Q: In long penetration applications like the 330881-28-04-105-00-02, what is the effect of shaft diameter?
A: A shaft diameter above 76.2 mm improves target flatness, ensuring stable eddy current distribution within a 2 mm linear range.
Q: Does IP66 mean the 330881-28-04-105-00-02 can be fully submerged in oil?
A: No. It protects against dust and strong water jets, but long-term immersion requires additional sealing measures.
Q: What is included if no proper seal is available for the 330881-28-04-105-00-02?
A: The kit includes two plugs and two gaskets for basic sealing requirements.
Q: Will extreme cold cause data drift in the 330881-28-04-105-00-02?
A: No. It operates down to -52°C with temperature compensation to maintain stable and accurate signals.
|
