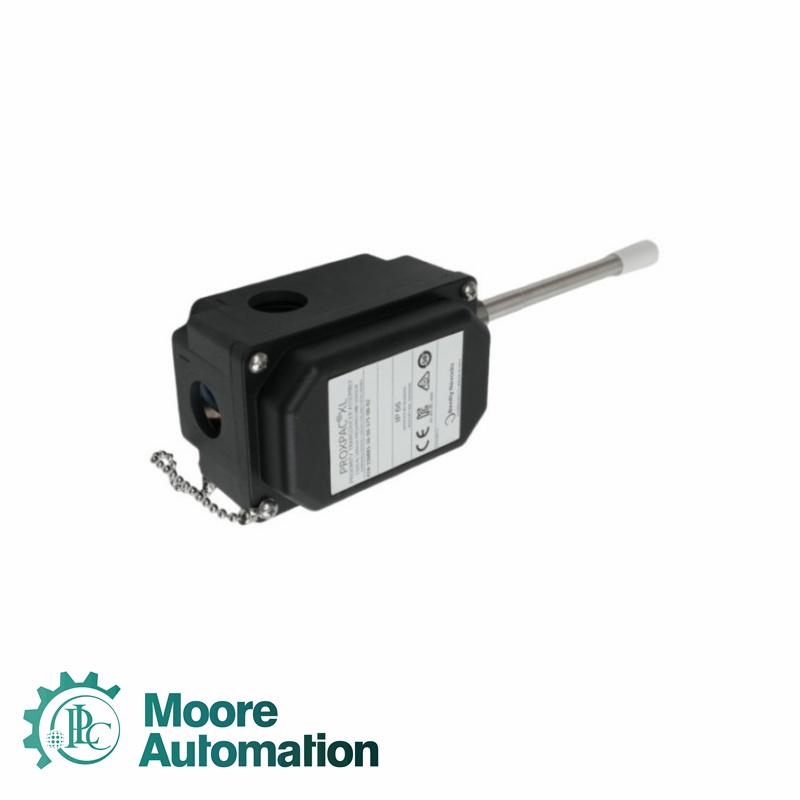

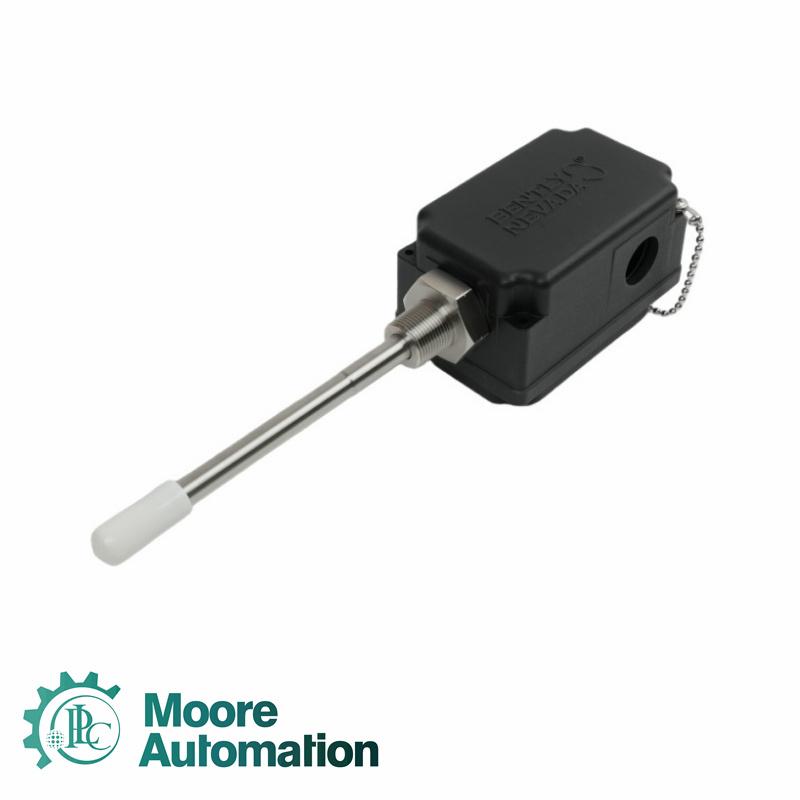

Bently Nevada 330881-16-10-110-06-02 PROXPAC XL Proximity Transducer

How can I contact you?

John Yang--five stars service

Email: sales3@askplc.com

Mobile(WhatsApp): 86-18150117685

What is a brief introduction to the product?

The design of the PROXPAC XL Proximity Transducer Assembly is similar to our 31000/32000 Proximity Probe Housing Assemblies. The assembly offers the same advantages and features as the 31000 and 32000 housings for accessing and externally adjusting proximity probes. However, the housing cover of the PROXPAC XL Assembly also contains its own 3300 XL Proximitor sensor. This design makes the PROXPAC XL Assembly a completely self-contained proximity probe system, and eliminates the need for an extension cable between the probe and its associated Proximitor sensor. It also eliminates the need for a separate Proximitor housing, as the field wiring connects directly between the monitors and PROXPAC XL Assemblies. The PROXPAC XL housing is made of Polyphenylene Sulfide (PPS), which is an advanced, molded thermoplastic. This material replaces the steel and aluminum in previous housings offered in the Bently Nevada product line. It also incorporates glass and conductive fibers in the PPS to strengthen the housing and more effectively dissipate electrostatic charges. The PROXPAC XL housing is rated for Type 4X and for IP66 environments and provides extra protection in severe environments.

What are the product details?

Probe and Approvals Option

3300 XL 8 mm probe without approvals

Standoff Adapter Option (B Dimension)

100 mm

Probe Penetration Option (C Dimension)

110 mm

Fittings Option (supplied as a kit)

One 3/4-14 NPT fitting; one 3/4-14 NPT to 1/2-14 NPT SST reducer; two plugs

Mounting Thread Option

3/4-14 NPT (required if ordering Standoff Adapter Option)

Dimension

36.5x9x9.3 cm

Weight

1.35 kg

Supply Sensitivity

< 2 mV change in output per volt change in input

Output Resistance

50 Ω

Field Wiring

0.2 to 1.5 mm² (16 to 24 AWG)

Linear Range

2 mm (80 mils)

Recommended Gap Setting

1.27 mm (50 mils)

Shaft Diameter Minimum

50.8 mm (2.0 in)

Shaft Diameter Recommended

76.2 mm (3.0 in)

Housing Rating

IP66 (verified by BASEEFA report T07/0709)

Operating Temperature

-52°C to +100°C (-62°F to +212°F)

Storage Temperature

-52°C to +105°C (-62°F to +221°F)

Key points you might want to know

Q: What is the 330881-16-10-110-06-02?
A: It is a PROXPAC XL Proximity Transducer .

Q: Is  Q: Does 330881-16-10-110-06-02 is new and original?
A: Yes, it is new and original.

Q: How long warranty of 330881-16-10-110-06-02?
A:One-year warranty.

Q: Does any certificates can be provided of 330881-16-10-110-06-02?
A: Yes, it depends on what product you request, please check details with our sales.
