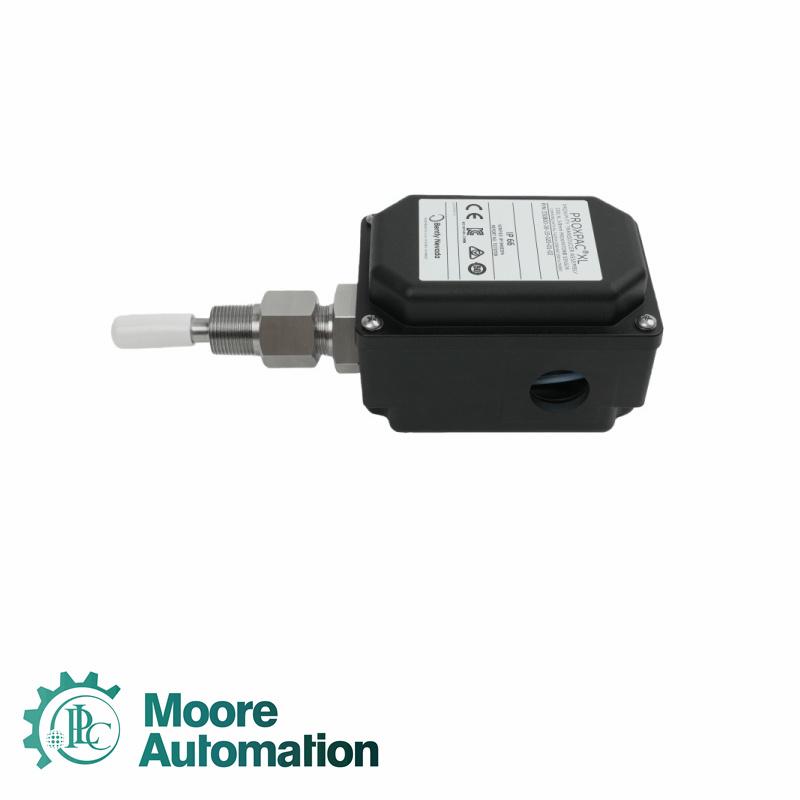

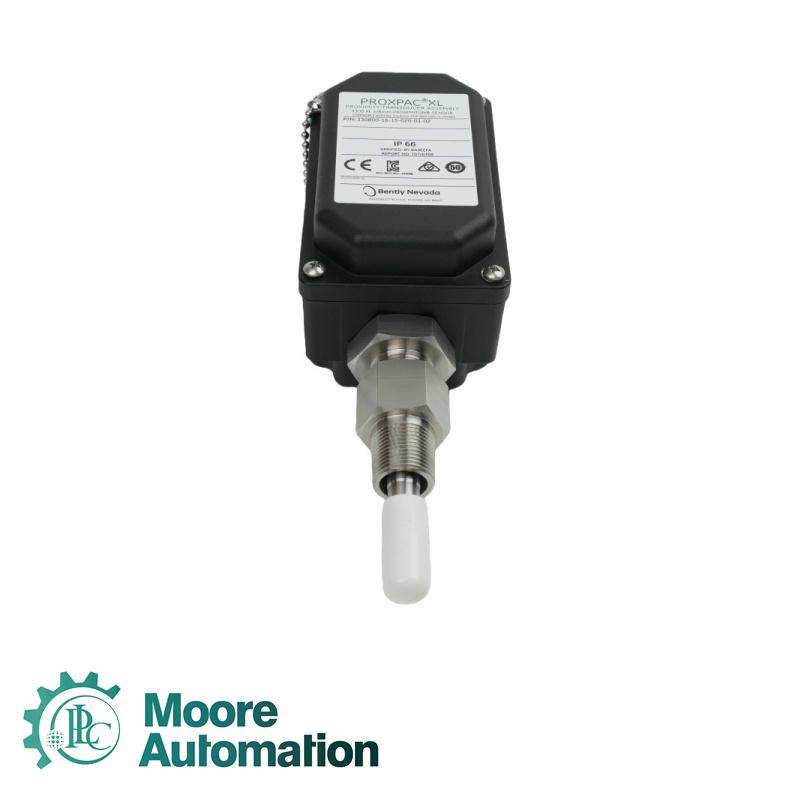

Bently Nevada 330800-28-00-085-03-02 PROXPAC XL Proximity Transducer

How can I contact you?

John Yang--five stars service

Email: sales3@askplc.com

Mobile(WhatsApp): 86-18150117685

What are the product details?

Probe and Approvals Option

3300 XL 8 mm probe with Multiple Approvals

Standoff Adapter Option (B Dimension)

No standoff adapter

Probe Penetration Option (C Dimension)

8.5 in

Fittings Option (supplied as a kit)

One 3/4-14 NPT fitting; one 3/4-14 NPT to 1/2-14 NPT SST reducer; two plugs

Mounting Thread Option

3/4-14 NPT (Required if ordering Standoff Adapter Option)

Dimension

27.8x9.5x9.2 cm

Weight

1.5 kg

Supply Sensitivity

< 2 mV change in output per volt change in input

Output Resistance

50 Ω

Field Wiring

0.2 to 1.5 mm² (16 to 24 AWG)

Linear Range

2 mm (80 mils)

Recommended Gap Setting

1.27 mm (50 mils)

Shaft Diameter Minimum

50.8 mm (2.0 in)

Shaft Diameter Recommended

76.2 mm (3.0 in)

Housing Rating

IP66 (verified by BASEEFA report T07/0709)

Operating Temperature

-52°C to +100°C (-62°F to +212°F)

Storage Temperature

-52°C to +105°C (-62°F to +221°F)

What are the product details?

Probe and Approvals Option

3300 XL 8 mm probe without approvals

Standoff Adapter Option (B Dimension)

100 mm

Probe Penetration Option (C Dimension)

110 mm

Fittings Option (supplied as a kit)

One 3/4-14 NPT fitting; one 3/4-14 NPT to 1/2-14 NPT SST reducer; two plugs

Mounting Thread Option

3/4-14 NPT (required if ordering Standoff Adapter Option)

Dimension

36.5x9x9.3 cm

Weight

1.35 kg

Supply Sensitivity

< 2 mV change in output per volt change in input

Output Resistance

50 Ω

Field Wiring

0.2 to 1.5 mm² (16 to 24 AWG)

Linear Range

2 mm (80 mils)

Recommended Gap Setting

1.27 mm (50 mils)

Shaft Diameter Minimum

50.8 mm (2.0 in)

Shaft Diameter Recommended

76.2 mm (3.0 in)

Housing Rating

IP66 (verified by BASEEFA report T07/0709)

Operating Temperature

-52°C to +100°C (-62°F to +212°F)

Storage Temperature

-52°C to +105°C (-62°F to +221°F)

Key points you might want to know

Q: What is the 330800-28-00-085-03-02?
A: It is a PROXPAC XL Proximity Transducer.

Q: Is 330800-28-00-085-03-02 new or refurbished?
A: All our products are original new with 1 year warranty.

Q: How many days the 330800-28-00-085-03-02 will arrive my hands if I place the order now?
A: As soon as we receive the payment, I will ship the products immediately.
It usually take 3-5 days from China to your hands.

Q:Can you ship the 330800-28-00-085-03-02 to my country?
A: Please don't worry ,We can ship the goods to worldwide.
