 Bently Nevada 330704-000-078-10-01-05 3300 XL 11 mm Proximity Probe
330704-000-078-10-01-05 330704-000-078-10-01-05 330704-000-078-10-01-05

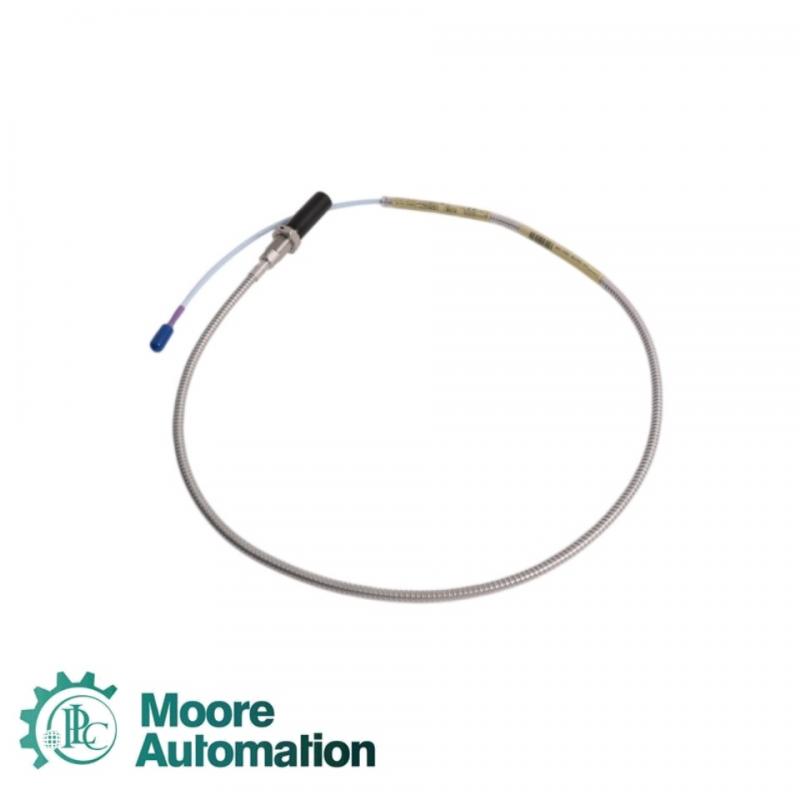

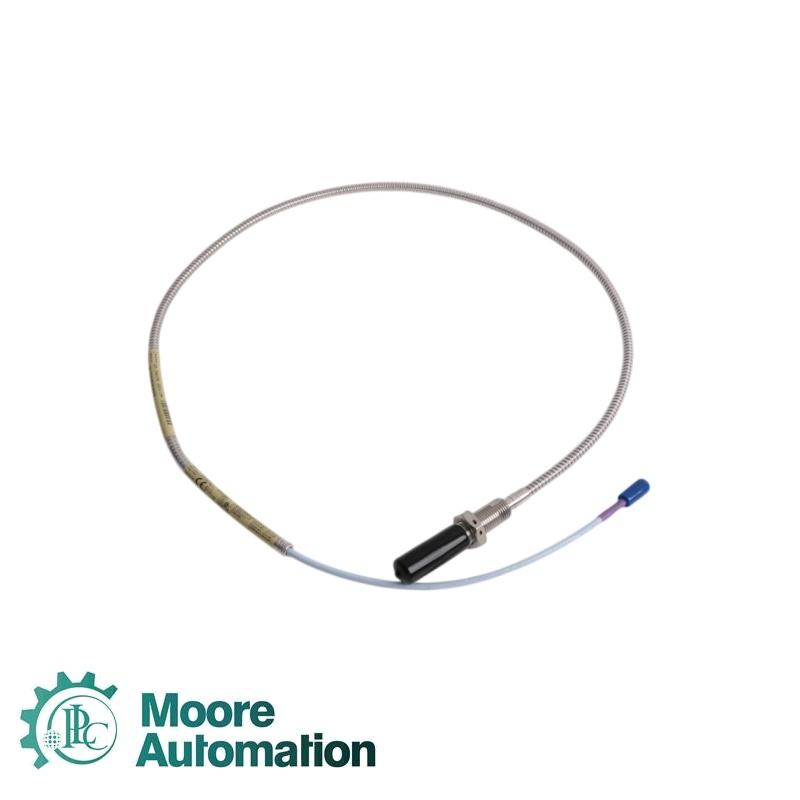

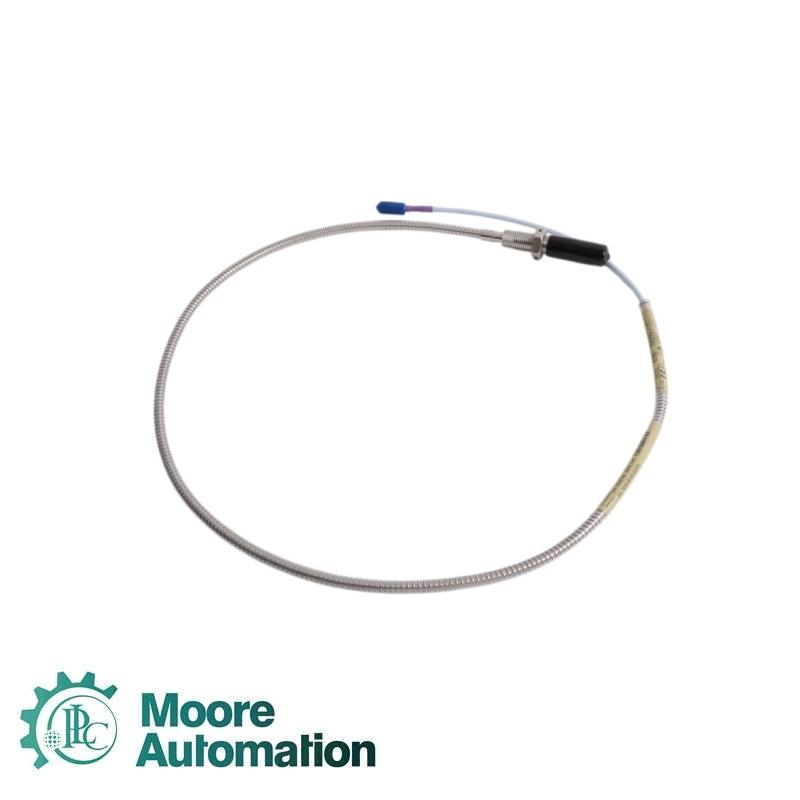

Bently Nevada 330704-000-078-10-01-05 3300 XL 11 mm Proximity Probe

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

  • Order(MOQ):

    1

  • Payment:

    T/T

  • Product Origin:

    UK

  • Color:

    Brand New

  • Shipping Port:

    Xiamen

  • Lead Time：

    3-5 Days

  • Mode of transport:

  • HS CODE:

  • Warranty:

    1 Year

  • Product Origin:

  • Lead Time:

  • Service:

Contact Us

  • Product Detail

Specifications

Bently Nevada 330704-000-078-10-01-05 is an M14 × 1.5 threaded 3300 XL 11 mm proximity probe with armor. The complete code identifies a 0 mm unthreaded section, 78 mm overall case length, 1.0 m total length, a standard ClickLoc cable with connector protector, and the multiple-approvals option.

Product type
Proximity probe
Transducer system
3300 XL 11 mm
Base model
330704
Probe tip diameter
11 mm
Probe thread
M14 × 1.5
Cable armor
With armor
Unthreaded length
0 mm
Overall case length
78 mm
Total length
1.0 m (3.3 ft)
Connector
Miniature coaxial ClickLoc
Connector protector
Included
Cable type
Standard cable
Approval option
Multiple approvals
Linear range
4.0 mm (160 mils)
Recommended gap
2.5 mm (100 mils)
Scale factor
3.94 V/mm (100 mV/mil)
Probe DC resistance
5.9 ± 0.5 Ω at 1.0 m
Cable pull strength
330 N (75 lb)

Application Industry

01
Thrust position measurementProvides the longer linear range used for axial position monitoring.
02
Steam-turbine differential expansionSupports ramp differential-expansion measurement with the complete matched system.
03
Reciprocating-compressor rod monitoringMeasures rod position or rod drop in documented installations.
04
Keyphasor and speed measurementSupports phase-reference, tachometer and zero-speed measurements.

FAQ

Which system components should be paired with Bently Nevada 330704-000-078-10-01-05?
Use the matching probe, extension cable and Proximitor sensor from the same 11 mm transducer family.
What mounting thread is required for Bently Nevada 330704-000-078-10-01-05?
Provide an M14 × 1.5 threaded mounting location and preserve access for the supplied locking hardware.
What is the nominal gap for Bently Nevada 330704-000-078-10-01-05?
Set a 2.5 mm nominal gap against the specified steel target under the documented system conditions.
Is Bently Nevada 330704-000-078-10-01-05 intended for extended displacement ranges?
Yes. The larger probe system provides a 4.0 mm linear range for applications such as thrust position and differential expansion.
What must be matched when replacing Bently Nevada 330704-000-078-10-01-05?
Verify the thread, armor, physical lengths, connector-protector option, system length and approval marking before installation.
