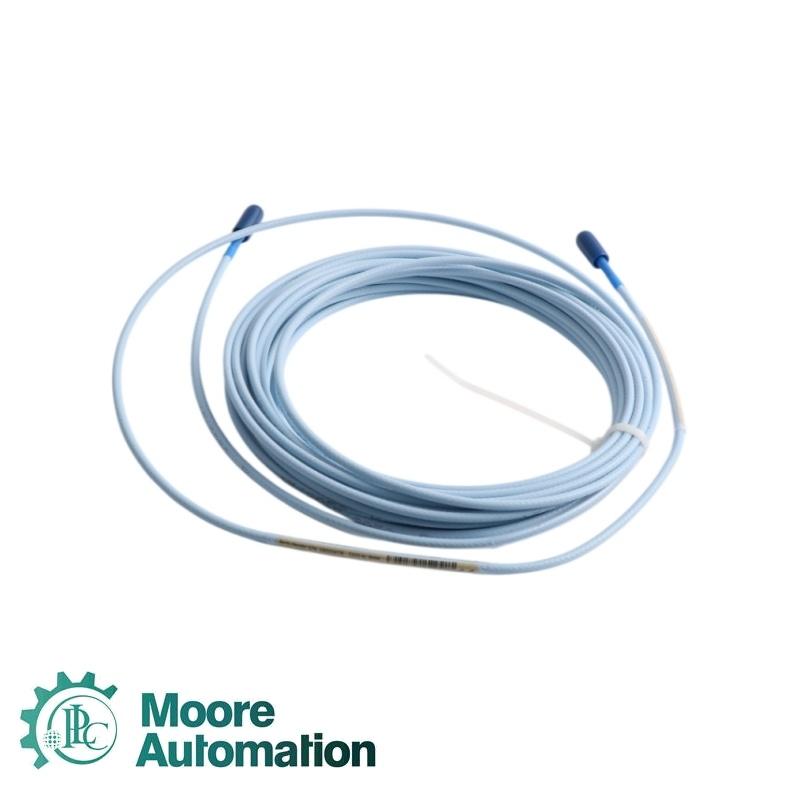

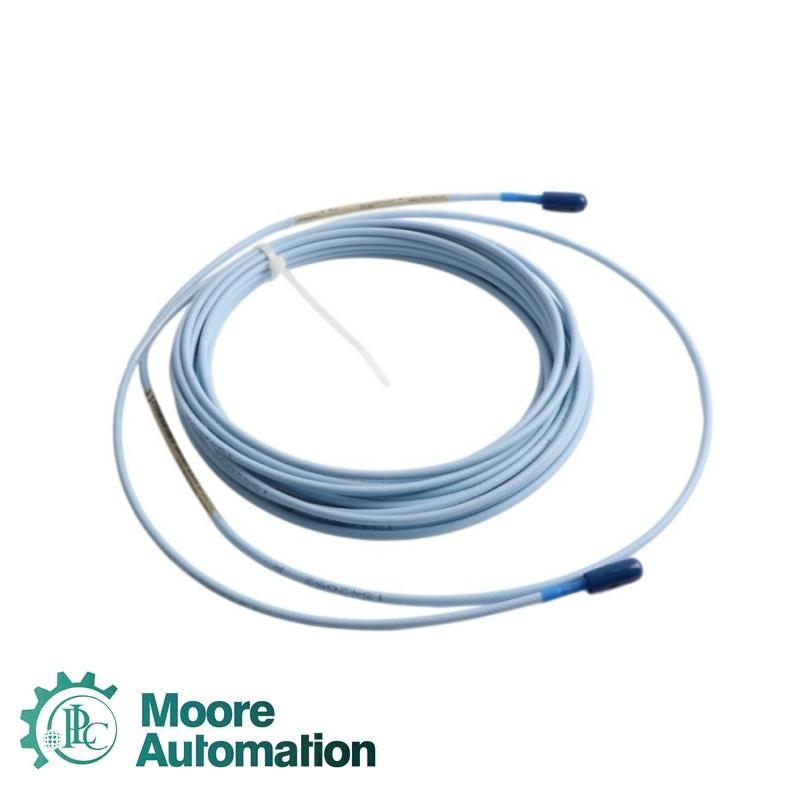

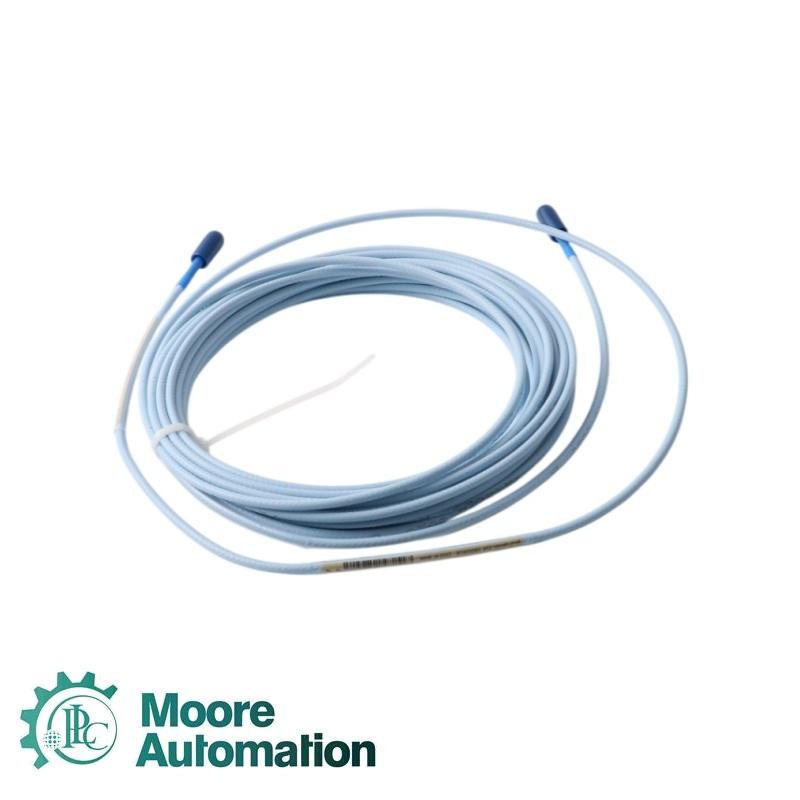

Bently Nevada 330190-080-00-05 3300 XL ETR Extension Cable

Bently Nevada 330190-080-00-05 3300 XL ETR Extension Cable

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

  • Order(MOQ):

    1
  • Payment:

    T/T
  • Product Origin:

    UK
  • Color:

    Brand New
  • Shipping Port:

    Xiamen
  • Lead Time:

    3-5 Days
  • Mode of transport:

  • HS CODE:

  • Warranty:

    1 Year
  • Product Origin:

  • Lead Time:

  • Service:

  • Product Detail

Specifications

Bently Nevada 330190-080-00-05 is an 8.0 m extended-temperature-range extension cable for the 3300 XL 8 mm proximity transducer system. The configuration uses standard cable construction and the multiple-approvals option; probe and extension-cable lengths must add up to the selected Proximitor sensor system length.

Product type
ETR extension cable
Transducer system
3300 XL 8 mm
Base model
330190
Part-number format
330190-AAA-BB-CC
Cable length code
080
Cable length
8.0 m (26.2 ft)
Cable option code
00
Cable option
Standard cable
Approval code
05
Approval option
CSA, ATEX and IECEx
Connector family
ClickLoc coaxial
Insulation family
PFA
Maximum ETR cable temperature
+260 °C (+500 °F)
Typical capacitance
69.9 pF/m (21.3 pF/ft)
Core DC resistance
1.76 ± 0.26 Ω at 8.0 m
Outer-conductor DC resistance
0.53 ± 0.11 Ω at 8.0 m

Application Industry

01
High-temperature probe extensionExtends the matched transducer loop where cable temperature exceeds the standard rating.
02
Turbine bearing monitoringRoutes proximity signals from bearing locations to the matched sensor.
03
Vibration measurement loopsCompletes the required total electrical length for radial-vibration measurement.
04
Position and Keyphasor loopsSupports static position, phase-reference and speed measurement in the documented system.

FAQ

How should Bently Nevada 330190-080-00-05 be matched to a probe?
Choose the probe length so the combined probe and extension cable equals the Proximitor sensor system length.
What cable length does Bently Nevada 330190-080-00-05 provide?
The selected configuration provides 8.0 m, approximately 26.2 ft.
Is Bently Nevada 330190-080-00-05 armored?
No. The selected cable-option code identifies the standard, non-armored construction.
Where is Bently Nevada 330190-080-00-05 intended to be used?
It is intended for the extended-temperature version of the 8 mm proximity transducer loop.
What should be inspected before fitting Bently Nevada 330190-080-00-05?
Check the ClickLoc connector surfaces, routing temperature, bend protection, required total system length and approval marking.
