Bently Nevada 330194-05-13-10-05 3300 XL 8mm Probe

How to get the best price?

Yuki (Sales Manager)          ↓ Click

Email : sales6@askplc.com

Whatsapp : +86 17359287459

Product Overview

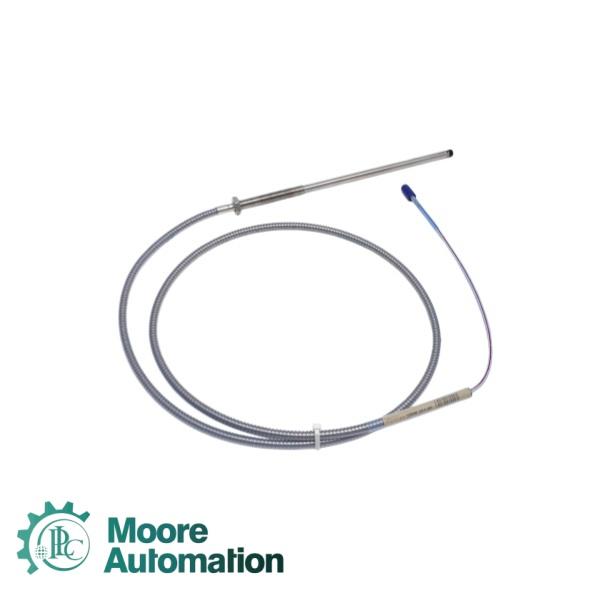

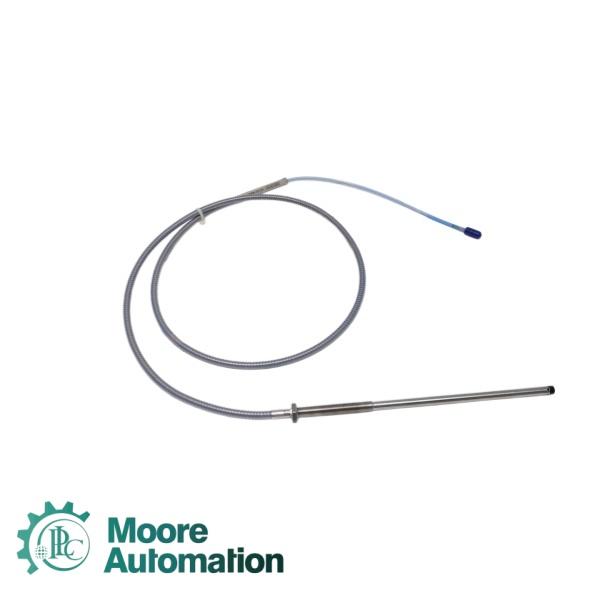

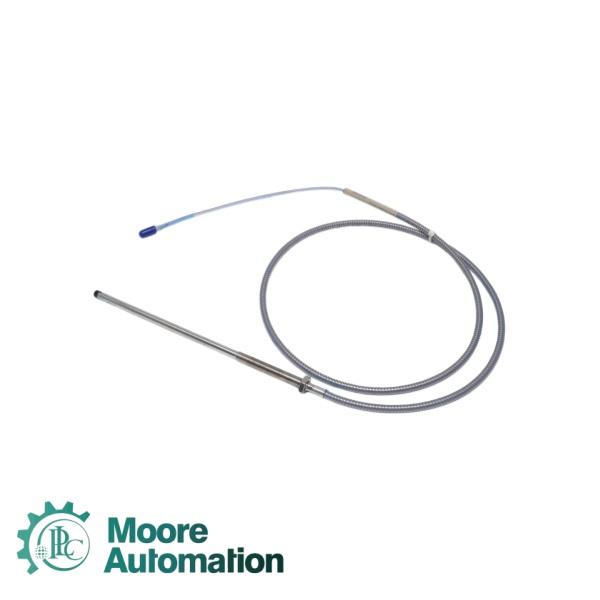

The Bently Nevada 330194-05-13-10-05 is a 3300 XL 8 mm Proximity Probe featuring an M10 x 1 metric thread with integral armor for enhanced mechanical protection. This probe is part of Bently Nevada's 3300 XL eddy current transducer system, designed for non-contact measurement of shaft vibration, axial displacement, and position in rotating machinery. The M10 x 1 thread provides a metric alternative to the standard 3/8-24 UNF thread, making this probe particularly suitable for international installations where metric mounting hardware is required or preferred. The integral armor provides a stainless steel protective sleeve over the probe's body and cable, offering superior resistance against impact, abrasion, and crush damage in harsh industrial environments.

Key Features

➙Integral Armor Protection – Full stainless steel armor sleeve covers the probe body and cable, providing exceptional resistance to impact, abrasion, and crush damage. This makes the 330194 series the recommended choice for installations where physical abuse or exposure to debris is a concern.

➙Metric M10 x 1 Thread – Metric thread configuration suitable for international equipment standards, allowing direct installation into metric mounting holes without adapters. Maximum thread engagement is 15 mm.

➙TipLoc™ Molding Technology – Patented manufacturing process that creates a robust bond between the probe tip and probe body, eliminating tip rotation or loosening under severe vibration. This ensures measurement consistency over the life of the probe.

➙ClickLoc™ Connector System – Corrosion-resistant, gold-plated brass connectors require only finger-tight torque (connectors will “click”). The specially engineered locking mechanism prevents connectors from loosening due to machine vibration, ensuring reliable signal transmission in harsh environments.

➙Complete Interchangeability – Probes, extension cables, and Proximitor sensors within the 3300 XL 8 mm system are fully interchangeable. There is no need to match components or perform bench calibration, dramatically reducing maintenance downtime and spare parts inventory complexity.

Technical Specifications

Unthreaded Length: 05 - 50mm

Overall Case Length: 13 - 130mm

Total Length: 10 - 1.0 meter (3.3 feet)

Agency Approval: 05 - CSA, ATEX, IECEx  Approvals

Linear Range: 2.0 mm from 0.25 mm to 2.3 mm

Scale Factor (Sensitivity): 7.87 V/mm (200 mV/mil) ±5%

Output (Typical): -1 Vdc to -17 Vdc, proportional to gap

Recommended Gap (Radial Vibration): 1.27 mm (50 mils) achieving -9 Vdc

Frequency Response: 0.5 Hz to 10 kHz (±3 dB)

Supply Voltage Required (Proximitor): -17.5 Vdc to -26 Vdc (12 mA max)

Supply Sensitivity: Less than 2 mV change per volt change

Output Resistance: 50 Ω
