Product Infor

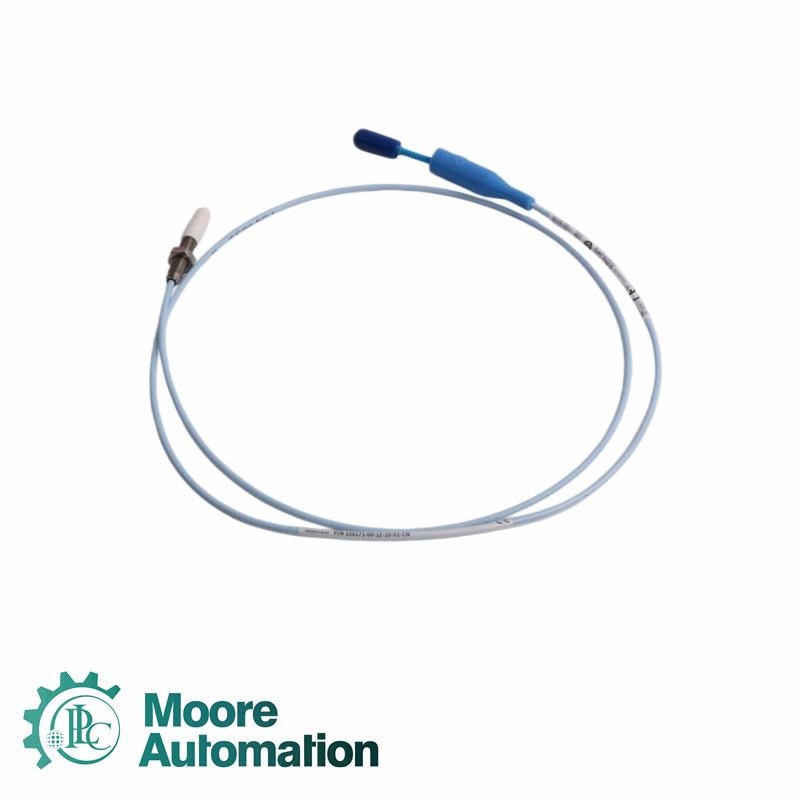

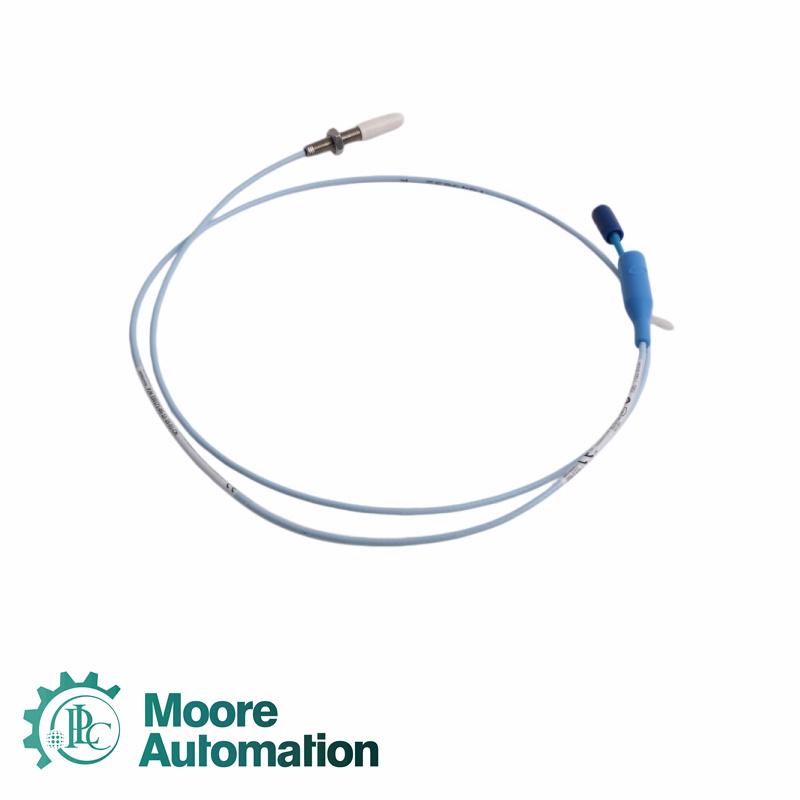

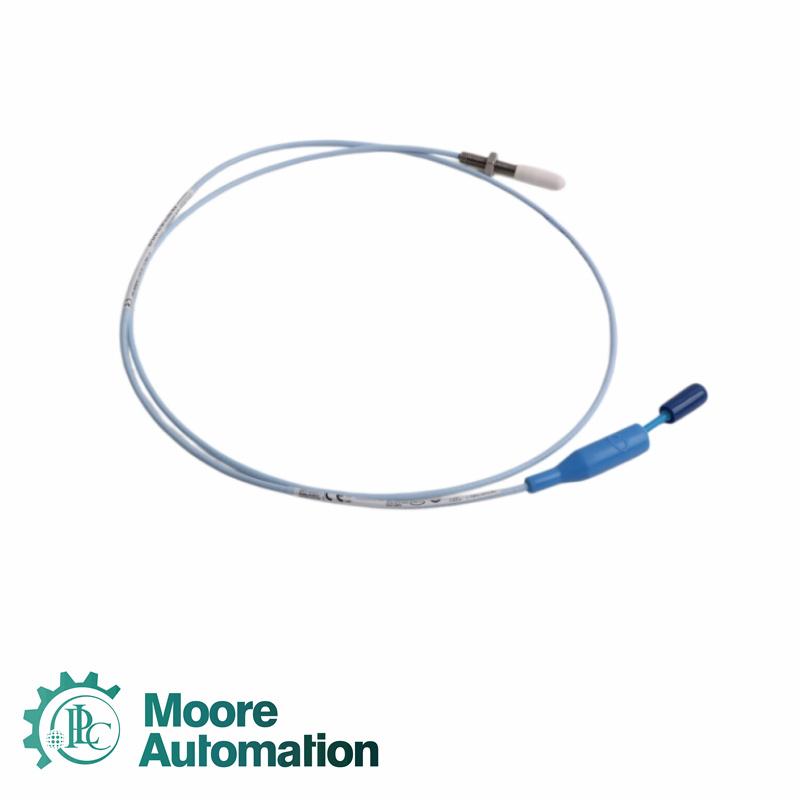

Brand name: Bently Nevada
Model: 330171-00-12-50-01-CN
Warranty period: 1 year
Condition: 100% original new
Transportation period: DHL FEDEX EMS UPS TNT
Full Details
Unthreaded Length Option
0.0 in
Overall Case Length Option
1.2 in
Total Length Option
5.0 metres (16.4 feet)
Connector Option
Miniature coaxial ClickLoc connector with connector protector, standard cable
Agency Approval Option
Multiple Approvals
Probe Case Thread
1/4-28 UNF thread
Maximum Length of Thread Engagement
Maximum Rated 7.3 N•m (65 in•lb);Recommended 5.1 N•m (45 in•lb)
Operating and Storage Temperature
-52°C to +177°C (-62°F to +350°F)
Supply Sensitivity
Less than 2 mV change in output voltage per volt change in input voltage
Output Resistance
50 Ω
Extension Cable Capacitance
69.9 pF/m (21.3 pF/ft) typical
Field Wiring
0.2 to 1.5 mm2 (16 to 24 AWG)
Linear Range
2 mm (80 mils)
Probe Tip Material
Polyphenylene sulfide (PPS)
Probe Case Material
AISI 303 or 304 stainless steel (SST)
Qiuck Details
The 3300 5 mm Proximity Transducer System consists of: a 3300 5 mm probe; a 3300 XL extension cable (ref 141194-01); a 3300 XL Proximitor Sensor(ref 141194-01). When combined with a 3300 XL Proximitor Sensor and XL extension cable, the system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface. The system can measure both static (position) and dynamic (vibration) data. Its primary use is in vibration and position measurement applications on fluid-film bearing machines, as well as Keyphasor measurement and speed measurement applications.
|
Ask for Quotation |
|
|
|
Contact: John Yang |
|
|
Email: sales3@askplc.com |
|
|
Mobile(WhatsApp): 86-18150117685 |
Application
Refineries: Monitoring valve displacement in reciprocating compressors.
Steel plants: High-speed vibration monitoring of wire rod mill main shafts.
Cement plants: Bearing monitoring of separators and vertical mill gearboxes.
Paper mills: Shaft monitoring of refiners and press reel machines.
Water treatment plants: Monitoring booster pump sets and blower operating condition.
Careful Customer Service
Over millions spares inventory
Fast lead times deliver uptime globally
100% brand-new and original products
Competitive prices and specific dealer discounts
Frequently Asked Questions
Q: What is the unthreaded length option for 330171-00-12-50-01-CN?
A: It is 0.0 in.
Q: What is the overall case length of 330171-00-12-50-01-CN?
A: The length is 1.2 in.
Q: What is the total length option for 330171-00-12-50-01-CN?
A: It is 5.0 metres (16.4 feet).
Q: What probe case thread does 330171-00-12-50-01-CN use?
A: It uses a 1/4-28 UNF thread.
Q: What is the linear range of 330171-00-12-50-01-CN?
A: The linear range is 2 mm (80 mils).
