Product Infor
Brand name: Bently Nevada
Model: 31000-26-05-00-040-01-02
Warranty period: 1 year
Condition: 100% original new
Transportation period: DHL FEDEX EMS UPS TNT
Full Details
Probe with Connector
3300 XL NSv probe
Probe Cable Length
0.5 m (20 in)
Standoff Adapter Length (Option C Dimension)
No standoff adapter
Probe Penetration Option (Option D Dimension)
4.0 in
Fittings
One 3/4-14 NPT fitting, two plugs
Mounting Thread Option
3/4-14 NPT (Required if ordering Standoff Adapter Option)
Protection Ratings
Type 4X rating certified by Canadian Standards Association (CSA)
Housing Material
Glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic containing conductive fibers
Sleeve Material and Retaining Chain
AISI 304 stainless steel
Outer Sleeve and Exterior Screws
AISI 303 stainless steel
O-Ring Material
Neoprene
Recommended Torque(retaining nut)
29.4 N·m (260 in·lb)
Housing Strength (typical)
Outer sleeve was mounted on a test stand with its axis parallel to horizontal and the housing mounted on the outer sleeve through an end hole
Housing Impact Strength
Certified by BASEEFA to withstand two separate 4 Joule (3.0 ft·lb) impacts at -39°C (-38°F) and at 115°C (239°F)
Qiuck Details

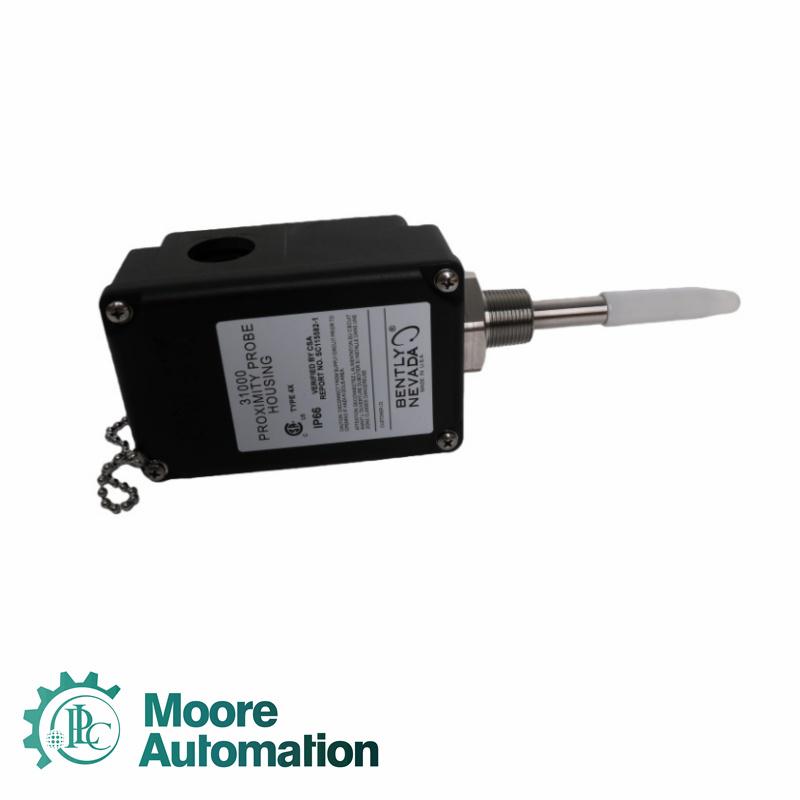

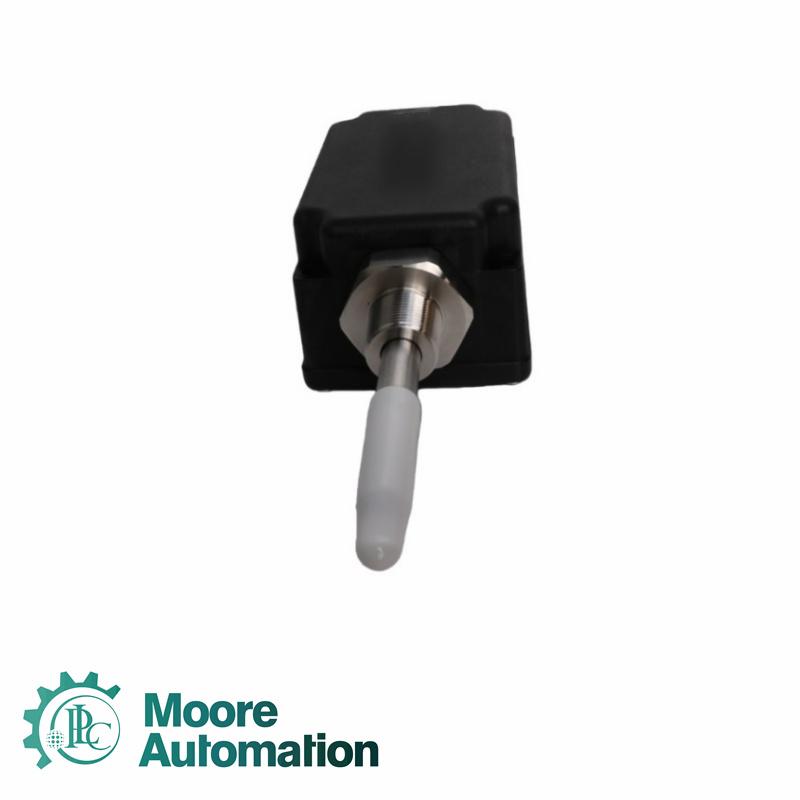

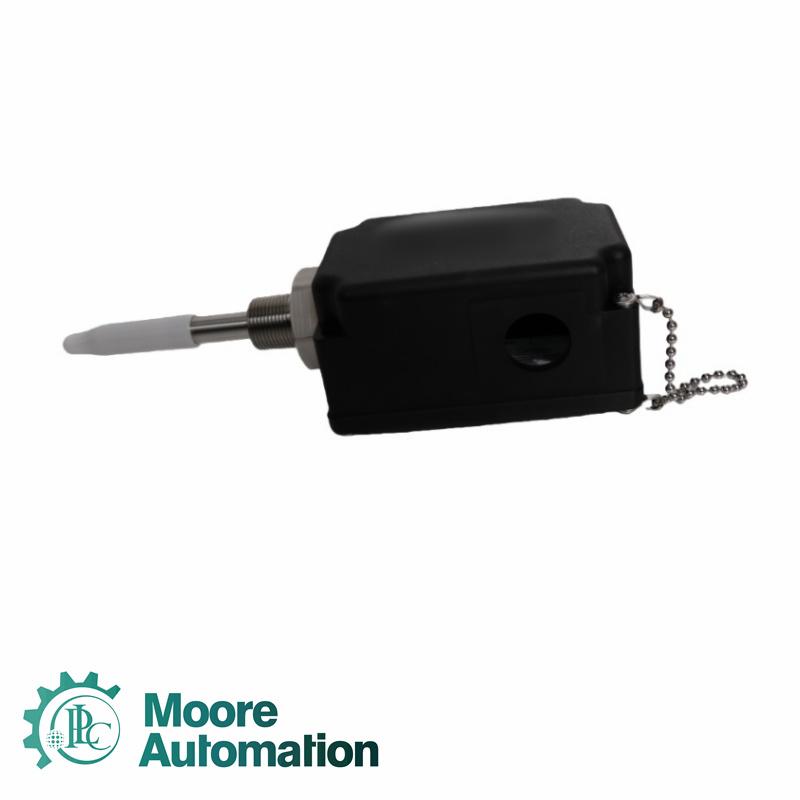

The 31000/32000 Proximity Probe Housing Assemblies are recommended when mounting proximity probes through the machine case and are typically used for radially mounted transducers, whether vibration or Keyphasor measurements. Use of a Proximity probe housing allows external access to the proximity probe and its extension cable, permitting gap adjustment or probe replacement without disassembly of the machine.
|
Ask for Quotation |
|
|
|
Contact: John Yang |
|
|
Email: sales3@askplc.com |
|
|
Mobile(WhatsApp): 86-18150117685 |
Application
Power plants: Turbine and generator shaft vibration monitoring.
Chemical plants: Reactor agitator shafts and large pump vibration monitoring.
Refineries: Axial displacement monitoring of FCC compressor trains.
Steel plants: Blast furnace blowers and rolling mill main shaft monitoring.
Cement plants: Large crushers and raw mill fan vibration monitoring.
Careful Customer Service
Over millions spares inventory
Fast lead times deliver uptime globally
100% brand-new and original products
Competitive prices and specific dealer discounts
Frequently Asked Questions
Q: What is the probe cable length for 31000-26-05-00-040-01-02?
A: It is 0.5 m (20 in).
Q: What is the probe penetration depth for 31000-26-05-00-040-01-02?
A: It is 4.0 in.
Q: What mounting thread specification does 31000-26-05-00-040-01-02 use?
A: It uses a 3/4-14 NPT thread.
Q: What housing material is used for 31000-26-05-00-040-01-02?
A: It uses glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic containing conductive fibers.
Q: What impact strength is certified for the 31000-26-05-00-040-01-02 housing?
A: It can withstand two separate 4 Joule (3.0 ft·lb) impacts.
